Custom Flat Foof Stage Truss System 20x12x10m

5 0 Reviews

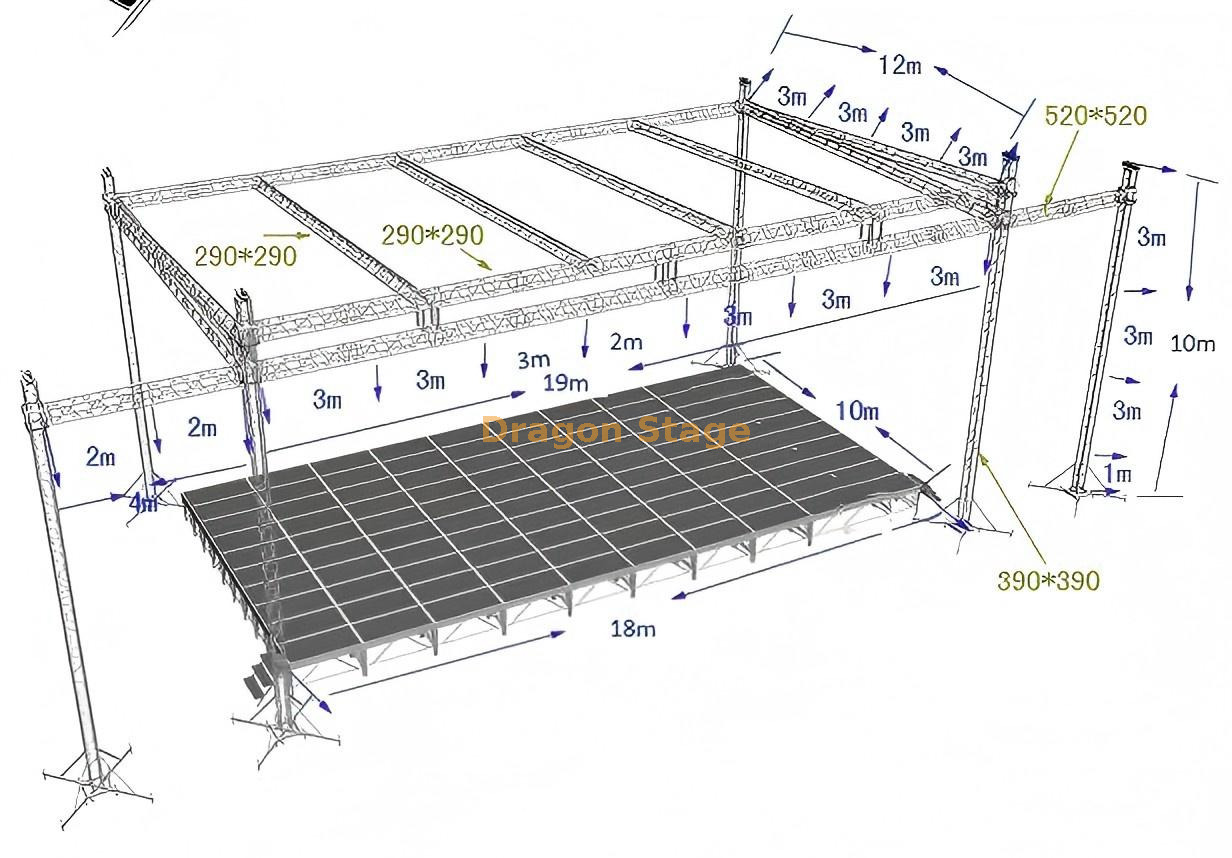

this is a Custom Flat Foof Stage Truss System, total sizes are 20x12x10m

the speaker led wings are 4m wide.

the truss beam are 520x760mm, the pillar are 390x390mm and roof truss are 290mm truss

Price: ￥ 130070


Availability:



Inquire

Brand:
Dragon Stage

Product Description

Custom Flat Foof Stage Truss System 19x12x10m

packing weight:3500kg

packing volume:40cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
20.00 m Beam(front)	2 sets	3.00 m	50×4.0	CS520×760	12pcs
		2.00 m	50×4.0	CS520×760	2pcs
		1.00 m	50×4.0	CS520×760	0pcs
12.00 m Beam(side)	2 sets	3.00 m	50×4.0	CS520×760	8pcs
		2.00 m	50×4.0	CS520×760	0pcs
		1.00 m	50×4.0	CS520×760	0pcs
9.00 m Pillar	4 sets	3.00 m	50×3.0	CS389×389	12pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
beam cube	6 faces	CS520×760			0pcs
Frame Tower	Spigot Sleeve Block L				6pcs
	Steel Base L				6pcs
	Top Section L				6pcs
	Manual hoist,BA05 2Tons				6pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	.50 m	50×3.0	CS289×289	3pcs
20.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	1pcs
		1.00 m	50×3.0	CS289×289	0pcs
14.00 m Oblique Beam	6 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	1pcs
		5.20 m	50×3.0	CS289×289	0pcs
14.00 m Ladder truss	sets	3.00 m	50×3.0	CL40,389*50	0pcs
		2.00 m	50×3.0	CL40,389*50	0pcs
		5.20 m	50×3.0	CL40,389*50	0pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	0pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	0pcs
	1	Connect plate with clamp		CS289×289	3pcs
		Single clamp			12pcs
		Double clamp			12pcs
		roof canopy material:pvc, Blue Colour or customized.		250	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
4.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS520×760	0pcs
		2.00 m	50×3.0	CS520×760	4pcs
		1.00 m	50×3.0	CS520×760	0pcs
9.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS389×389	6pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
Wings Tower	Spigot Sleeve Block L				2pcs
	Steel Base L				2pcs
	Top Section L				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
