This Professional Pitched Roof Aluminum Stage Truss System is a comprehensive solution for medium-to-large-scale outdoor events. Designed for maximum visual impact and functional efficiency, this system provides a secure and expansive environment for performers and high-end technical equipment.

• Expansive Performance Area: The main stage structure measures 13 meters in width and 10 meters in depth, with an impressive 9-meter clear height, offering ample room for large bands, corporate presentations, or festival acts.

• Integrated Speaker Wings: Features two dedicated 3-meter-wide PA wings (speaker wings) on either side of the main stage, specifically engineered to support heavy line array sound systems at optimal heights.

• High-Stability Pitched Roof: The gable (pitched) roof design, finished with a durable blue weather-resistant canopy, ensures superior water drainage and wind resistance, protecting the stage and equipment from the elements.

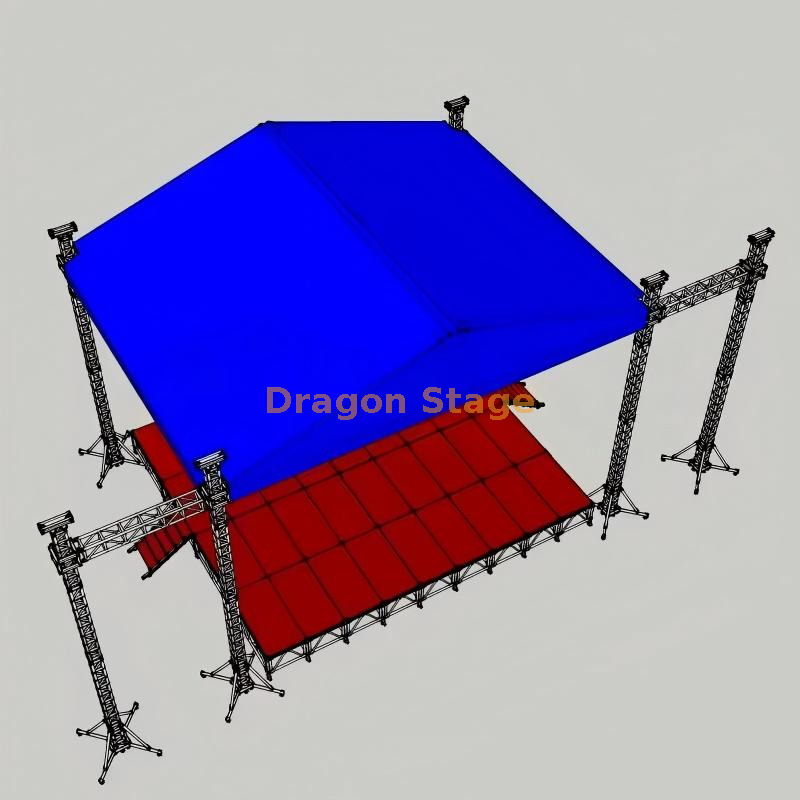

• Complete Stage Solution: As seen in the design, the kit includes a modular stage platform (finished in red) and integrated access stairs, providing a turn-key solution for event organizers.

• Durable Construction: Manufactured from high-strength 6061 aluminum alloy bolt truss, the ground support system ensures structural integrity and high load-bearing capacity for lighting rigs and audio gear.

13x10x9m Professional Pitched Roof Aluminum Stage Truss System with 3m PA Wings

1. Introduction

For high-level outdoor concerts and professional touring acts, the stage structure must provide massive scale, extreme vertical clearance, and dedicated audio support. The 13x10x9m Professional Pitched Roof Aluminum Stage Truss by DragonStage is engineered for elite production, featuring a commanding 9-meter height and 130 square meters of covered performance area. The inclusion of specialized 3m PA wings allows for the suspension of heavy line array systems outside the main performance corridor, ensuring optimal acoustic coverage and clear audience sightlines. This system is designed for professionals who demand a "stadium-standard" rig that remains modular and efficient for regional deployments.

2. Challenges & Solutions

A significant challenge for outdoor structures at a 9-meter height is managing lateral wind-drift and the "sail effect" of the canopy. DragonStage solves this through a heavy-duty tower system and reinforced sleeve blocks that anchor the structure firmly against environmental forces. Furthermore, hanging heavy line arrays on cantilevered wings can create torque on the main frame; our solution utilizes reinforced side outriggers and balanced ballast points specifically engineered for the 3m PA wings. To prevent the dangerous accumulation of water during sudden downpours, the pitched roof design ensures rapid water runoff, protecting your million-dollar lighting and LED investments from moisture damage.

3. Key Features & Benefits

The 13x10x9m system is manufactured from aerospace-grade 6082-T6 aluminum alloy, offering the highest strength-to-weight ratio for temporary structures and natural resistance to corrosion in humid outdoor climates (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html).

The structure features a modular ground-support design. This allows the entire 13x10m roof grid to be assembled and rigged with lighting and cabling at waist height, before being hoisted to its 9-meter apex. According to international rigging standards, this method significantly reduces the risks associated with working at height (Source:https://www.lsionline.com).

To ensure a complete venue solution, this trussing is perfectly compatible with our modular aluminum stage platforms. These decks feature 18mm anti-slip surfaces and high load-bearing capacities, providing a stable foundation for performers that matches the professional caliber of the overhead rig (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html).

4. FAQ Section

Q: How much weight can the 3m PA wings support?A: Each wing is specifically reinforced to support heavy professional line arrays. Please contact our engineering team with your speaker weight for a verified load-calculation report.

Q: Is the 9m height safe for outdoor use?A: Yes. When used with our recommended ballast and guy-wire systems, the structure is designed for high-wind stability.

Q: Is the PVC canopy fire-safe?A: Absolutely. Our canopies are made from 850g/m² PVC that is waterproof, UV-resistant, and meets B1/M2 fire-retardant safety standards.

Q: Can this be raised with electric hoists?A: Yes. At a 9-meter height, we strongly recommend using synchronized electric chain hoists for a safe and level lifting process.
