| Features: | |
|---|---|
Dragon Stage
packing weight: 2350kg
packing volume: 15cbm
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| 14.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs | |||
| 2.00 m | 50×3.0 | CS389×389 | 2pcs | |||||
| 1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
| 11.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 6pcs | |||
| 2.00 m | 50×3.0 | CS389×389 | 2pcs | |||||
| 1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
| 7.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
| Frame Tower | Spigot Sleeve Block S | 4pcs | ||||||
| Steel Base S | 4pcs | |||||||
| Top Section S | 4pcs | |||||||
| Manual hoist,BA05 2Tons | 4pcs | |||||||
| Spigot Hinge Section,Height 1m | 4pcs | |||||||
| Fibre sling,BA04,2 tons 3m | 4pcs | |||||||
| Long outrigger | 16pcs | |||||||
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| Roof Pillar | 2 sets | 1.40 m | 50×3.0 | CS289×289 | 2pcs | |||
| 11.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 3pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 1pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 7.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 1.20 m | 50×3.0 | CS289×289 | 4pcs | |||||
| 7.20 m Ladder truss | 10 sets | 3.00 m | 50×3.0 | CL30,289*50 | 20pcs | |||
| 2.00 m | 50×3.0 | CL30,289*50 | 0pcs | |||||
| 1.20 m | 50×3.0 | CL30,289*50 | 10pcs | |||||
| Roof Components | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs | |||||
| roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs | ||||||
| Connect plate with clamp | 2pcs | |||||||
| Single clamp | 20pcs | |||||||
| Double clamp | 8pcs | |||||||
| roof canopy material:pvc, Blue Colour or customized. | 258.16 | 1pcs | ||||||
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| 3.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 2pcs | |||
| 2.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
| 7.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 2pcs | |||||
| Wings Tower | Spigot Sleeve Block S | 2pcs | ||||||
| Steel Base S | 2pcs | |||||||
| Top Section S | 2pcs | |||||||
| Manual hoist,BA05 2Tons | 2pcs | |||||||
| Spigot Hinge Section,Height 1m | 2pcs | |||||||
| Fibre sling,BA04,2 tons 3m | 2pcs | |||||||
| Long outrigger | 8pcs | |||||||
| Truss Accessory | Conical coupler & Safrty clip & pin | whole set | ||||||
packing weight: 2500kg
packing volume: 17cbm
| Item | Specification | Quantity | |||
| Aluminium assembly stage | topping: 4x8ft (1.22x2.44m) | wooden | 40 pcs | ||
| 1.22m stage brace | 48 pcs | ||||
| 2.44m stage brace | 45 pcs | ||||
| stand with extendable tube | 54 pcs | ||||
| Stage adjustable base | 54 pcs | ||||
| Stage Stair | wooden topping | total | 8 | steps | 2 pcs |
Introduction: The Foundation of Large-Scale Live Production

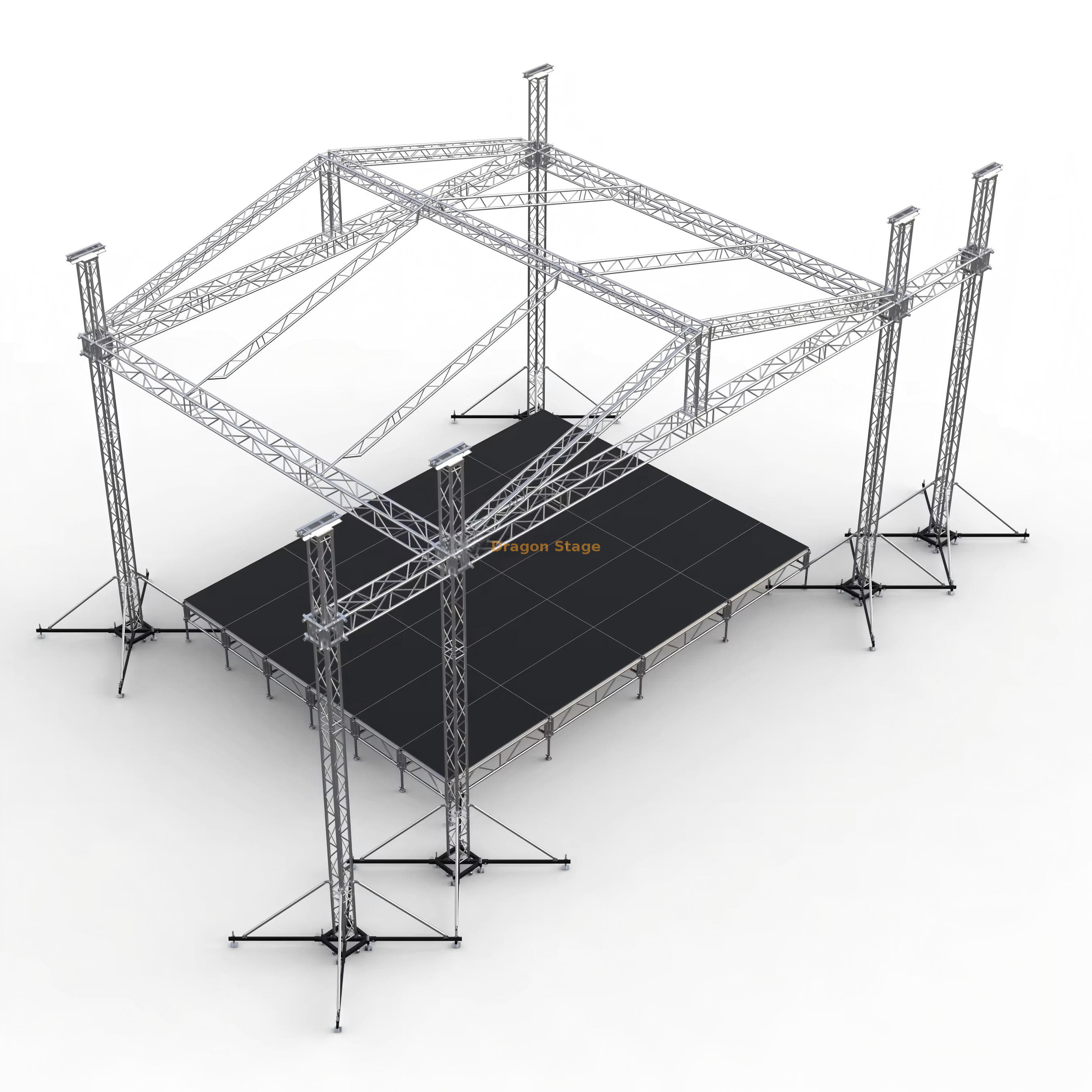

The DragonStage Aluminum Roof Truss Concert Line Array Speaker Lighting Stage Truss is a purpose-built, medium-to-large-scale outdoor structure engineered for complex live events requiring dedicated audio, lighting, and stage support. Sized at a substantial 14 meters wide by 11 meters deep, with a structural height of 8 meters, this system provides a robust, covered performance area and superior rigging capacity for professional concert production.
This comprehensive structure is categorized as an A-frame Roof Truss System and is distinguished by its integrated 3-meter wide Line Array Speaker Wings. This design ensures that heavy speaker clusters are safely suspended by independent towers, preventing them from overly stressing the main lighting grid—a critical consideration for structural safety in temporary entertainment structures (Source:https://www.etnow.com).
Challenges & Solutions in Modern Event Construction
Professional event builders and contractors demand solutions that solve core industry pain points:
Separation of Audio and Lighting Loads: Hanging heavy line arrays from the main roof can compromise the lighting plot's load capacity. DragonStage addresses this by integrating two 3.00 m Line Array Speaker Wings supported by their own 7.00 m high CS289x289 Pillars. This dedicated solution allows the main CS389x389 roof truss to maximize capacity for lighting and video.
Structural Stability and Elevation Safety: Erecting an 8m-high structure demands controlled lifting and enhanced stability. The system employs 6 total towers (4 main, 2 wing) and 6 sets of 2-Ton Manual Hoists (BA05) for secure vertical assembly. Furthermore, the inclusion of 24 total Long Outriggers (16 main, 8 wing) ensures a wide, stable base footprint for superior resistance to overturning moments (Source:https://www.dragontruss.com/Typical-A-frame-Roof-Truss-System-pl3101260.html).
Speed of Assembly and Logistical Planning: Using the modular Spigot connection system and two distinct, optimized truss profiles (CS389x389 for beams, CS289x289 for pillars), the system is engineered for rapid, reliable assembly and breakdown, significantly reducing on-site labor time.
Key Features & Benefits for Event Professionals
The Aluminum Roof Truss Concert Line Array Speaker Lighting Stage Truss 14x11x8m offers technical specifications optimized for maximum performance and logistical efficiency.
| Feature | Specification Details | Client Benefit |
| Overall Dimensions (L x W x H) | 14m x 11m x 8m (Rooftop) | Provides substantial, high-clearance coverage for medium-to-large concerts and festivals. |
| Main Truss Profiles | CS389x389 (Beam), CS289x289 (Pillar) | Ensures high load-bearing capacity and optimal weight distribution across the system. |
| Line Array Speaker Wings | 3.00 m wide; dedicated CS389x389 beam | Guarantees safe, elevated, and independent rigging points for professional sound systems. |
| Stage Platform Size | Approx. 12.2m x 9.76m (40 pieces 4x8ft topping) | Includes a large, fully adjustable performance area, simplifying structural integration and scheduling. |
| Canopy Coverage | PVC material, 258.16 sqm | Offers comprehensive weather protection for technical equipment and performers. |
| Truss Connection | Spigot (Conical Coupler, Safety Clip, Pin) | Facilitates quick, secure, and reliable assembly/disassembly. |
The main structural components feature a professional-grade 50mm x 3.0mm main tube size, a key indicator of the system's heavy-duty rating. The package includes an integrated podium stage deck of approximately 12.2m x 9.76m, which uses 40 wooden 4x8ft panels and 54 sets of adjustable bases, capable of setting the platform height between 1.2m and 2.0m. This modularity is essential for rapid turnover in the demanding touring market (Source:https://www.dragontruss.com/Stage-Truss-System).
Practical FAQ for Stage Professionals
Q: What is the total logistical volume for this entire system?
A: The total packing volume for the complete truss and stage system is approximately 32 CBM (15 CBM truss, 17 CBM stage), simplifying freight calculations.
Q: Are the pillars tall enough for large video screens?
A: The 7.00 m clear pillar height and use of heavy-duty CS289x289 truss provide significant vertical clearance and load-bearing capacity suitable for most concert lighting and video wall requirements.
Q: What alloy is typically used for this truss?
A: DragonStage structures typically utilize high-grade Aluminum Alloy 6061-T6 or similar, renowned in the industry for its strength-to-weight ratio and corrosion resistance.
Q: How is the stage height adjusted in the field?
A: The stage height from 1.2m to 2.0m is achieved through the included stands with extendable tubes and corresponding Stage adjustable bases, providing precise, secure height leveling.
Strong Call to Action (CTA)
For secure and integrated staging, lighting, and sound support, choose the engineered reliability of the DragonStage Aluminum Roof Truss Concert Line Array Speaker Lighting Stage Truss 14x11x8m.
Contact DragonStage's engineering team today to secure certified load data and customized production drawings for your next concert stage project.
