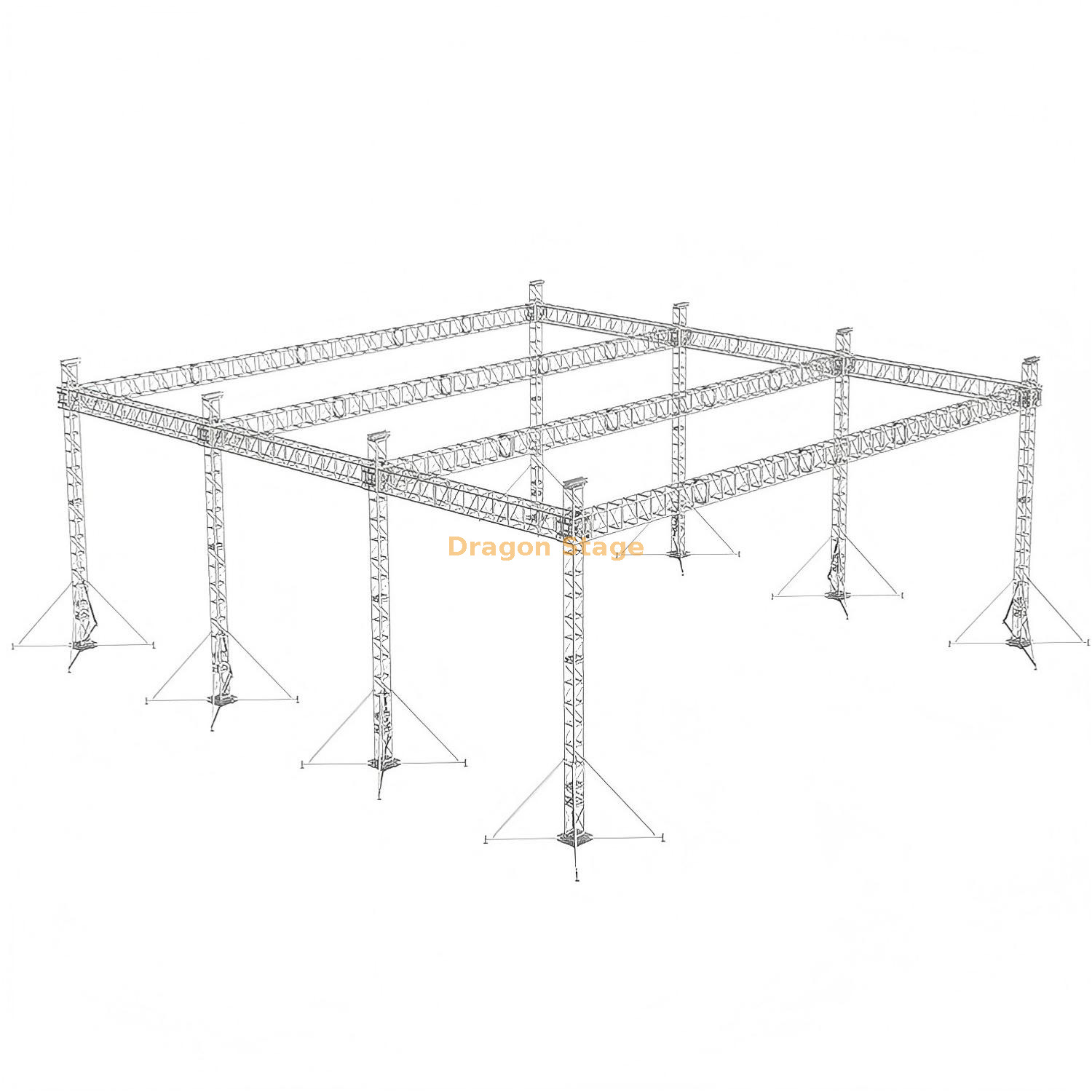

Designed for large-scale stage constructions, outdoor concerts, and industrial events, the Indian Aluminum Heavy Duty Truss Beam Pillar Aluminum Stage Truss (120x100x40ft, 8 legs) combines robust engineering with modular flexibility. Crafted from premium aerospace-grade aluminum alloys, this truss system delivers exceptional load capacity, stability, and adaptability for complex staging needs.
packing weight: 6300kg
packing volume: 137cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 30.00 m Beam(front) | 4 sets | 3.00 m | 50×5.0 | CS680×1010 | 40pcs |
| 2.00 m | 50×5.0 | CS680×1010 | 0pcs |
| 1.00 m | 50×5.0 | CS680×1010 | 0pcs |
| 36.00 m Beam(side) | 2 sets | 3.00 m | 50×5.0 | CS680×1010 | 24pcs |
| 2.00 m | 50×5.0 | CS680×1010 | 0pcs |
| 1.00 m | 50×5.0 | CS680×1010 | 0pcs |
| 11.00 m Pillar | 8 sets | 3.00 m | FALSE | CS520×520 | 24pcs |
| 2.00 m | FALSE | CS520×520 | 8pcs |
| 1.00 m | FALSE | CS520×520 | 0pcs |
| Frame Tower | Spigot Sleeve Block L | 8pcs |
| Steel Base L | 8pcs |
| Top Section L | 8pcs |
| Manual hoist,BA05 2Tons | 8pcs |
| Spigot Hinge Section,Height 1m | 8pcs |
| Fibre sling,BA04,2 tons 3m | 8pcs |
| Long outrigger | 32pcs |
