Dragon Stage
packing weight: 1600kg
packing volume: 12cbm
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| 13.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs | |||
| 2.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS389×389 | 2pcs | |||||
| 7.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs | |||
| 2.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS389×389 | 2pcs | |||||
| 6.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| beam cube | Spigot cube 389x389 | 0pcs | ||||||
| Frame Tower | Spigot Sleeve Block S | 4pcs | ||||||
| Steel Base S | 4pcs | |||||||
| Top Section S | 4pcs | |||||||
| Manual hoist,BA05 2Tons | 4pcs | |||||||
| Spigot Hinge Section,Height 1m | 4pcs | |||||||
| Fibre sling,BA04,2 tons 3m | 4pcs | |||||||
| Long outrigger | 16pcs | |||||||
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| Roof Pillar | 2 sets | 1.30 m | 50×3.0 | CS289×289 | 2pcs | |||
| 7.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 1pcs | |||||
| 6.70 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
| 1.70 m | 50×3.0 | CS289×289 | 4pcs | |||||
| 6.70 m Ladder truss | 6 sets | 3.00 m | 50×3.0 | CL30,289*50 | 6pcs | |||
| 2.00 m | 50×3.0 | CL30,289*50 | 6pcs | |||||
| 1.70 m | 50×3.0 | CL30,289*50 | 6pcs | |||||
| Roof Components | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs | |||||
| roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs | ||||||
| Connect plate with clamp | 2pcs | |||||||
| Single clamp | 12pcs | |||||||
| Double clamp | 8pcs | |||||||
| roof canopy material:pvc, Blue Colour or customized. | 177.66 | 1pcs | ||||||

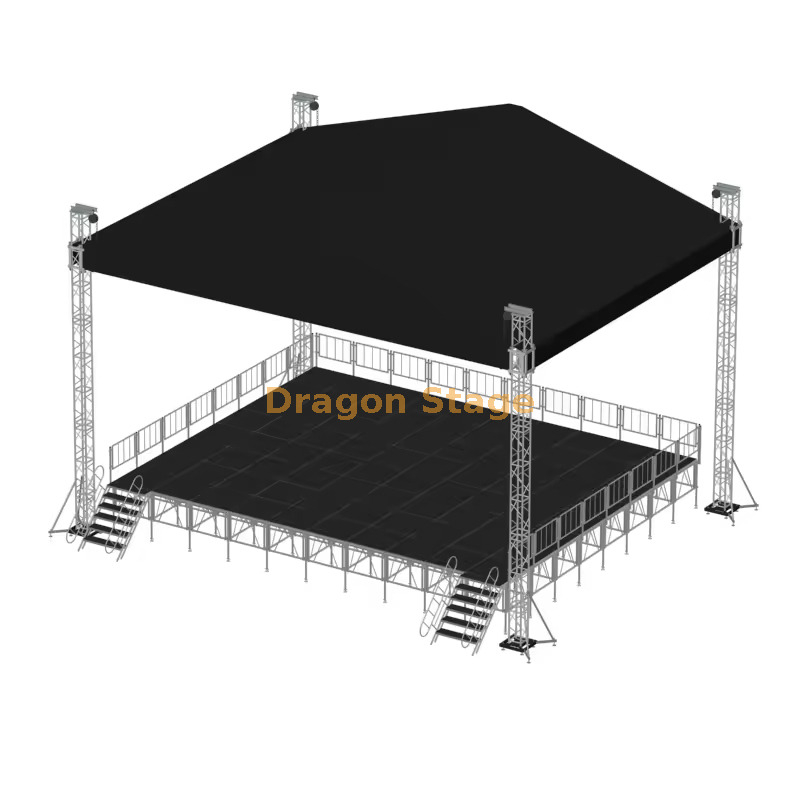

In the demanding sector of outdoor live entertainment, the 13x7x7m footprint has become a preferred standard for medium-to-large regional festivals and corporate performance stages. The Aluminium Concert Performance Roof Truss by DragonStage is engineered to provide a high-capacity rigging environment that combines an expansive 13-meter width with a commanding 7-meter vertical clearance. For stage builders and event organizers, the primary challenge is ensuring a "big-stage" aesthetic while maintaining structural safety and portability. This precision-built aluminium system addresses these needs, offering a robust foundation for complex lighting plots and high-fidelity audio arrays in any outdoor setting.
One of the most frequent hurdles in outdoor production is managing structural integrity against environmental variables like wind and rain. A 13-meter roof can act as a significant sail; without precise engineering, water pooling can lead to catastrophic weight loads. DragonStage solves this with a pitched-roof design and high-tension PVC that ensures immediate water runoff. Additionally, uneven terrain at festival sites often complicates the setup of large structures. Our solution features a modular tower system with heavy-duty adjustable leveling jacks, allowing the 7-meter pillars to remain perfectly plumb and stable on grass, gravel, or sloped pavement. This eliminates the need for expensive ground-leveling services and speeds up the assembly timeline.
The 13x7x7m system is fabricated from premium 6082-T6 aluminium alloy, the industry gold standard for temporary performance structures. This material offers a superior strength-to-weight ratio and natural resistance to corrosion, ensuring the truss remains a long-term, professional asset through hundreds of setup cycles (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html).
The structure utilize a modular ground-support design, which allows the horizontal roof grid to be assembled at waist height. Technicians can safely rig beam lights, cabling, and audio equipment before hoisting the entire grid to its 7-meter apex using synchronized hoists. According to international safety standards for temporary event structures, this ground-support method significantly reduces the risks associated with working at height (Source:https://www.lsionline.com).
To ensure a complete venue solution, this trussing is designed to be perfectly compatible with our modular aluminium stage platforms. These platforms feature 18mm anti-slip surfaces and high-load capacities, providing a stable foundation that matches the professional grade of the overhead rig (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html).
Q: What is the maximum load the 13m span can support?A: Depending on the specific truss series selected (e.g., 290mm or 390mm), the system is engineered to support significant distributed loads for professional lighting and LED screens.
Q: Can this system be assembled without a crane?A: Yes. By using our specialized tower lift system and manual or electric chain hoists, the entire 13x7m grid can be raised safely by a small ground crew.
Q: Is the PVC canopy fire-retardant?A: Absolutely. Our canopies are made from 850g/m² PVC that is waterproof, UV-resistant, and meets B1/M2 fire-retardant safety standards.
Q: How do you handle high-wind conditions?A: The system includes dedicated attachment points for guy-wires and is designed to be used with ballast weights to ensure stability during outdoor wind gusts.
Elevate your next outdoor production with a rig that combines professional scale with absolute structural safety. Contact DragonStage’s engineering team today for a custom quote on the 13x7x7m Aluminium Concert Performance Roof Truss. Download our technical specifications and start planning your most successful event season yet.
