packing weight: 1200kg
packing volume: 9cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 6.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 6.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 5.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | .60 m | 50×3.0 | CS289×289 | 2pcs |
| 6.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 3.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 0pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| 1.20 m | 50×3.0 | CS289×289 | 4pcs |
| 3.20 m Ladder truss | 4 sets | 3.00 m | 50×3.0 | CL30,289*50 | 0pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 4pcs |
| 1.20 m | 50×3.0 | CL30,289*50 | 4pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| Connect plate with clamp | 2pcs |
| Single clamp | 8pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 81.36 | 1pcs |
packing weight: 700kg
packing volume: 4.5cbm
| Item | Specification | Quantity |
| Aluminium assembly stage | topping: 4x8ft
(1.22x2.44m) | wooden | 8 pcs |
| 1.22m stage brace | 12 pcs |
| 2.44m stage brace | 10 pcs |
| stand with extendable tube | 15 pcs |
| Stage adjustable base | 15 pcs |
| Stage Stair | wooden topping | total | 8 | steps | adjustable to the stage height | 2 pcs |

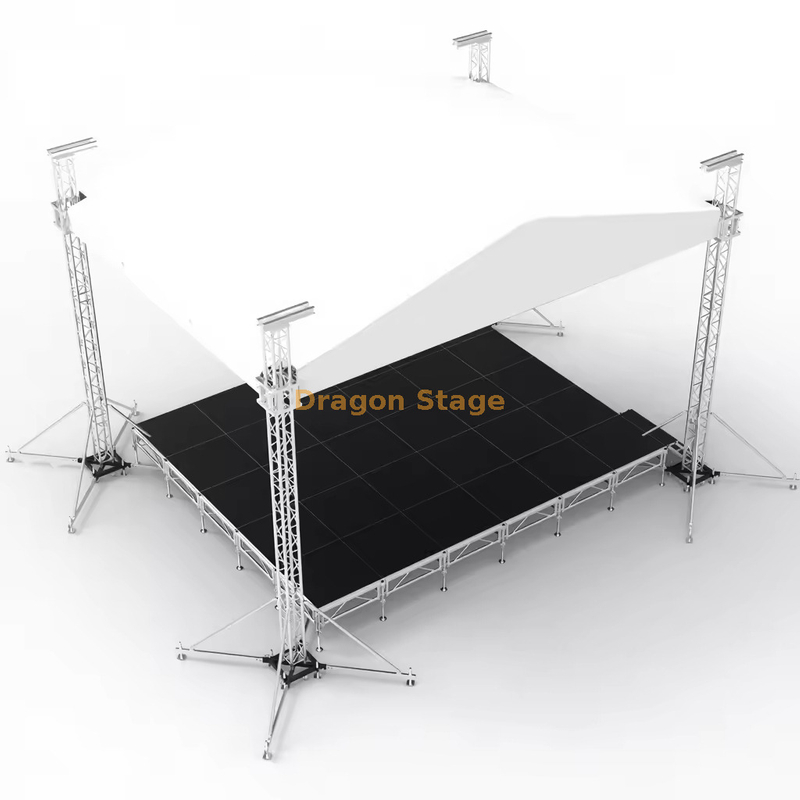

Barrier Tour Performance Aluminum Concert Truss System with Stage 6x6x6m: Compact Event Solution
1. Introduction: The Foundation of Large-Scale Live Production
For promoters, event companies, and production teams requiring a professional, compact, and safety-compliant setup, the DragonStage Barrier Tour Performance Aluminum Concert Truss System with Stage offers an ideal solution. This integrated system features a symmetrical 6m wide x 6m deep footprint and a commanding 6m high structure. It is perfectly suited for smaller outdoor concerts, promotional tours, club performances, and corporate presentations where space efficiency and quick deployment are key considerations.
This system is built using the reliable CS289x289 square truss profile, connected via the proven Spigot Hinge Section system, prioritizing both structural integrity and fast assembly. Its dimensions and integrated stage deck (4.88m x 4.88m) provide a professional-grade platform, making it the definitive choice for portable aluminum truss systems that need to deliver high performance in confined or mobile event settings.
2. Challenges & Solutions in Modern Event Construction
Setting up professional stages in smaller venues or during fast-paced tours often presents challenges related to logistical space constraints, variable ground conditions, and the need for a structure that maintains safety standards despite its compact size. Overly large systems are inefficient, while low-quality small systems often lack the capacity for proper lighting and sound rigging.
DragonStage’s solution optimizes these factors for tour performance applications:
Space-Efficiency: The 6x6x6m footprint maximizes stage area within a small envelope, making it versatile for numerous venues. The structure has a light transport profile (Total Packing Weight: 1200kg; Total Packing Volume: 9CBM for the truss structure), greatly simplifying logistics.
Integrated Safety: The system is engineered to include a robust ground support system, featuring four sets of Spigot Sleeve Blocks (S), Steel Bases (S), and Top Sections (S). Crucially, 16 Long Outriggers are included, ensuring maximum stability for this relatively high structure in outdoor settings (Source:https://www.dragontruss.com/Stage-Truss-pl3452133.html).
Controlled Lifting: Each of the four pillars is equipped with a 2-Ton Manual Hoist (BA05), allowing for precise and safe manual lifting of the roof grid during construction, mitigating risks associated with heavy manual handling.
3. Key Features & Benefits
This system provides a full-featured stage and roof solution in a compact package, designed for efficiency and safety.
Robust Truss and Connection System
The structure utilizes the certified CS289x289 square truss series throughout the beams and pillars:
Main Tubes: All primary structural members feature 50mm x 3.0mm main tubes, ensuring a strong base for light to medium-duty rigging loads.
Beam Spans: The 6.00m front and side beams are composed of the reliable CS289x289 truss, providing ample hanging space for lighting fixtures.
Roof Configuration: The roof utilizes a pitched design with CL30 ladder truss sections and CS289x289 truss for the top and oblique beams. The structure is completed with a 81.36 sqm PVC roof canopy for all-weather protection.
Integrated Stage Deck
The system includes a central performance area with an aluminum assembly stage featuring dimensions of 4.88m x 4.88m (16ft x 16ft).
Deck Material: The stage topping is made of wooden 4x8ft (1.22x2.44m) panels.
Adjustable Height: The stage system uses stand with extendable tube and Stage adjustable base components, allowing the platform height to be set flexibly within the 1.2m to 2.0m range, which is critical for visibility (Source:https://www.dragontruss.com/Aluminum-Stage-FAQ17608.html).
Comprehensive Safety Accessories
The system is delivered with all necessary accessories for a professional build, including:
Rigging Points: Single Clamp (8pcs) and Double Clamp (8pcs) are provided for secure attachment of lighting and sound elements to the truss grid.
Access: Two sets of Stage Stairs with adjustable height are included, ensuring safe and compliant performer access to the platform.
Load Stabilization: The Long Outriggers provide essential footprint extension to guarantee structural stability required for outdoor event permits.
4. Practical FAQ for Stage Professionals
Q: Is this system considered a heavy-duty or medium-duty truss?A: Given the use of the CS289x289 truss profile, this system is generally classified as a medium-duty solution, ideal for concerts requiring standard lighting and sound packages, but not suitable for extreme point loads or massive video walls.
Q: Are barriers included with this system?A: The product name suggests it is a system suitable for use with barriers ("Barrier Tour Performance"), but the detailed components list extracted from the webpage does not explicitly detail the number or type of crowd control barriers themselves. Barrier components must be confirmed separately.
Q: Can the 6m height be easily reduced?A: While the structure is modular, the 5.00m truss pillars are the main vertical elements. Modifying the height requires swapping or removing these standard truss lengths, which is possible but should be done based on engineering specifications.
Q: Is assembly feasible with a small team?A: Due to the manageable truss weights and the inclusion of Manual Hoists, the system is designed for relatively efficient assembly by a trained team, often making it ideal for tour applications where labor is time-constrained.
5. Strong Call to Action (CTA)
For a reliable, compact, and high-performance stage solution that meets the demands of a touring schedule, choose the DragonStage Aluminum Concert Truss System with Stage 6x6x6m.
Inquire now for technical drawings and a quotation to deploy this professional event solution.
