20mx18x9m Pitched/Gable Roof Aluminum Ground Support Truss System (9m Height)

5 0 Reviews

Professional 20m wide, 18m deep, and 9m high pitched roof aluminum stage truss. The classic gable roof design ensures superior drainage and load distribution. Ideal for medium to large outdoor concert stages, corporate events, and roadshows.

Price: ￥ 193824


Availability:



Inquire

Brand:
Dragonstage

Product Description

packing weight:4600kg

packing volume:56cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
20.00 m Beam(front)	3 sets	3.00 m	50×3.0	CS500×600	18pcs
		2.00 m	50×3.0	CS500×600	3pcs
		1.00 m	50×3.0	CS500×600	0pcs
18.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS500×600	12pcs
		2.00 m	50×3.0	CS500×600	0pcs
		1.00 m	50×3.0	CS500×600	0pcs
8.00 m Pillar	6 sets	3.00 m	50×3.0	CS389×389	12pcs
		2.00 m	50×3.0	CS389×389	6pcs
		1.00 m	50×3.0	CS389×389	0pcs
beam cube	6 faces	CS500×600			0pcs
Frame Tower	Spigot Sleeve Block M				6pcs
	Steel Base M				6pcs
	Top Section M				6pcs
	Manual hoist,BA05 2Tons				6pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	2.00 m	50×3.0	CS389×389	3pcs
18.00 m Top Beam	1 sets	3.00 m	50×3.0	CS389×389	6pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
10.20 m Oblique Beam	6 sets	3.00 m	50×3.0	CS389×389	12pcs
		2.00 m	50×3.0	CS389×389	6pcs
		2.20 m	50×3.0	CS389×389	6pcs
10.20 m Ladder truss	14 sets	3.00 m	50×3.0	CL40,389*50	28pcs
		2.00 m	50×3.0	CL40,389*50	14pcs
		2.20 m	50×3.0	CL40,389*50	14pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS389×389	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS389×389	1pcs
	1	Connect plate with clamp		CS389×389	3pcs
		Single clamp			28pcs
		Double clamp			12pcs
		roof canopy material:pvc, Blue Colour or customized.		525.76	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
2.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS500×600	0pcs
		2.00 m	50×3.0	CS500×600	2pcs
		1.00 m	50×3.0	CS500×600	0pcs
8.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS389×389	4pcs
		2.00 m	50×3.0	CS389×389	2pcs
		1.00 m	50×3.0	CS389×389	0pcs
Wings Tower	Spigot Sleeve Block M				2pcs
	Steel Base M				2pcs
	Top Section M				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set

This highly visible and versatile Pitched/Gable Roof Aluminum Ground Support Truss System is a professional-grade solution engineered for a wide range of outdoor events. The recognizable roof shape not only provides excellent aesthetic appeal but also offers crucial functional benefits for exterior installations.

Key Dimensions: The system provides generous event space with a 20-meter width, an 18-meter depth, and a tall 9-meter clear height, accommodating complex lighting and staging setups.
Optimal Drainage Design: The classic pitched (gable) roof angle is specifically designed to efficiently shed rain and snow, reducing water load on the structure and enhancing safety during adverse weather conditions.

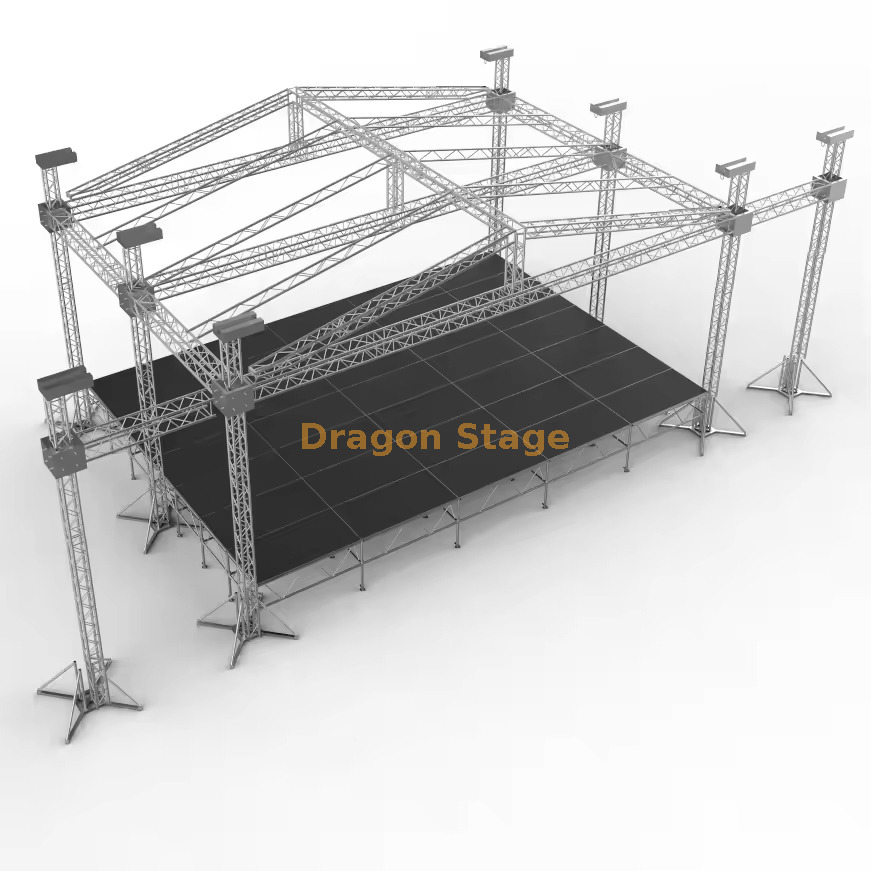

Integrated Stage Deck: The first image shows the structure paired with a modular stage platform (decking), providing a complete, ready-to-use performance area solution.
High-Quality Construction: Built using strong, lightweight 6061 aluminum alloy bolt truss components, the system ensures maximum stability, high load-bearing capacity for rigging, and ease of assembly and disassembly.
Applications: An excellent choice for music festivals, product launches, touring productions, and temporary exhibition spaces.
