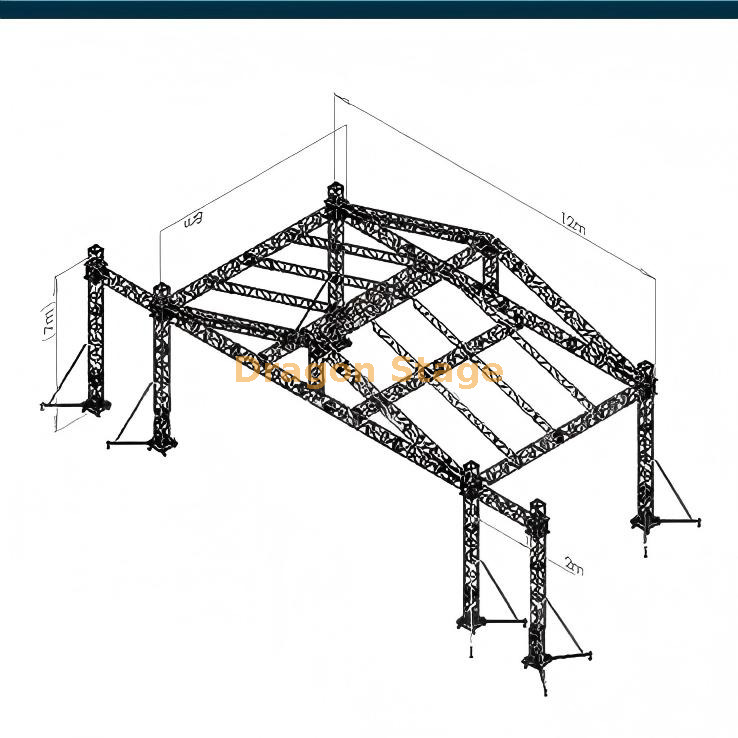

This 12×6×7m professional aluminum event pitched roof truss system is designed for large-scale outdoor events, concerts, and touring productions. The pitched roof structure improves load distribution and rainwater drainage while providing strong structural stability for lighting, audio, and LED systems. For engineering validation, refer to stage load analysis, modular system logic, and safety standards .
Product Name: Aluminum Event Pitched Roof Truss System
Size: 12m × 6m × 7m
Structure Type: Pitched Roof Truss System
Application: Outdoor stage, concert stage, event production
Material: High-strength aluminum alloy
Design Feature: Pitched roof for improved drainage and structural performance
System Type: Modular truss system
Installation: Fast modular assembly (see installation methodology)
This Professional 12m x 6m Event Pitched Roof Truss System is a high-performance structural solution designed for elite outdoor performances and large-scale event productions. Standing at a 7-meter vertical elevation, this system provides a comprehensive and safe environment for complex lighting and audio-visual deployments.
packing weight:1860kg
packing volume:17cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 12.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 6.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 6.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| beam cube | 6 faces | CS389×389 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | 1.20 m | 50×3.0 | CS289×289 | 2pcs |
| 6.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 6.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| 1.20 m | 50×3.0 | CS289×289 | 4pcs |
| 6.20 m Ladder truss | 4 sets | 3.00 m | 50×3.0 | CL30,289*50 | 4pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 4pcs |
| 1.20 m | 50×3.0 | CL30,289*50 | 4pcs |
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| 5 | roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| 1 | Connect plate with clamp | CS289×289 | 2pcs |
| Single clamp | 8pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 149.76 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 2.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 0pcs |
| 2.00 m | 50×3.0 | CS389×389 | 2pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 6.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| Wings Tower | Spigot Sleeve Block S | 2pcs |
| Steel Base S | 2pcs |
| Top Section S | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
Why This Product is Recommended
Structural Engineering Insight
The pitched roof truss system is designed to handle both vertical loads and environmental forces.
Key Structural Advantages
Improved load transfer across roof angles
Better rainwater drainage compared to flat roof systems
Enhanced wind resistance for outdoor events
Key Engineering Considerations
Incorrect load estimation or improper installation may lead to structural instability in outdoor conditions.
Application Scenarios
This pitched roof truss system is widely used in:
FAQ
What is a pitched roof truss system?
It is a truss structure with an angled roof design that improves drainage and structural stability for outdoor events.
Is a pitched roof better than a flat roof for outdoor events?
Yes, pitched roofs provide better rainwater drainage and improved performance under outdoor conditions.
What load can this system support?
Load capacity depends on configuration and equipment. Always calculate using load analysis standards .
What type of truss is used in this system?
This system uses aluminum stage truss systems and roof truss structures
Dragon Stage is a professional manufacturer specializing in aluminum stage and truss systems for global events. Learn more:
professional stage truss manufacturer
Check credibility:
Is Dragon Stage reliable?
If you are planning an outdoor stage or event structure, this pitched roof truss system provides a reliable and professional solution.
