Understanding the Engineering Design Behind Curved Aluminium Roof Systems, Keder Profiles and Fabric Tensioning
When audiences watch a large outdoor concert, the curved roof above the stage is often considered part of the visual design.
The elegant arc shape creates a modern appearance and makes the stage look more dynamic.
However, the curved roof is not only an aesthetic choice.
Behind this shape is a complete engineering system involving:
Steel support structures.
Aluminium curved roof frames.
Hydraulic lifting systems.
Tent Keder extrusion profiles.
PVC roof membranes.
Fabric tensioning principles.
The curved roof must achieve multiple objectives at the same time:
Provide weather protection.
Support suspended production equipment.
Reduce structural weight.
Maintain fabric tension.
Improve drainage.
Allow rapid installation and dismantling.

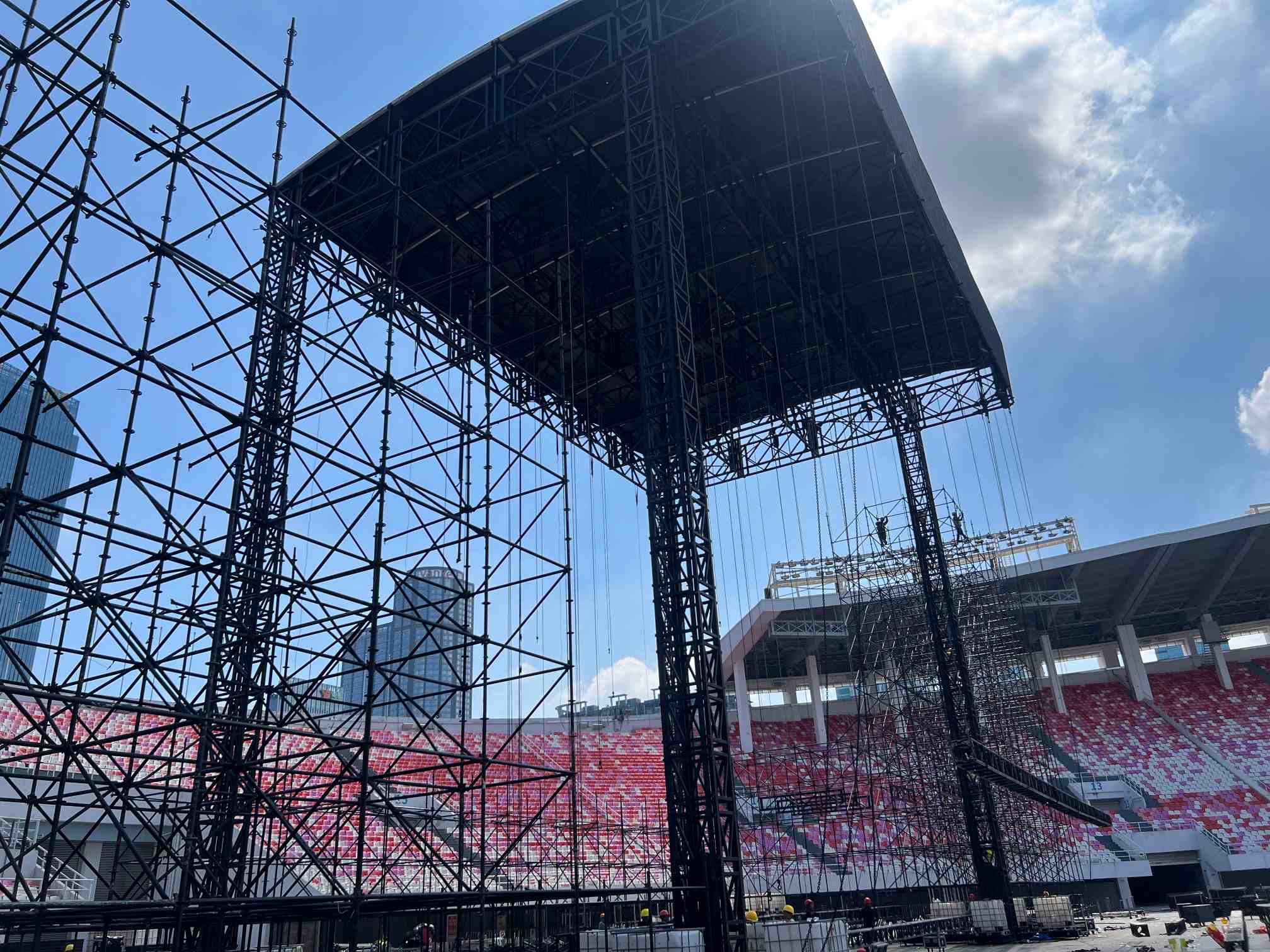

During the construction of the 2026 Guangzhou Pearl Beer Festival Music Festival, we observed a large hydraulic roof stage using a curved aluminium roof frame supported by steel structures.
The system demonstrated an important principle of temporary event engineering:
A concert roof is not a single structure. It is a layered system combining steel, aluminium and fabric to achieve strength, lightweight construction and efficient installation.
The relationship between this roof system and the complete stage structure can be understood through How Is a Large Concert Main Stage Constructed?, where the construction sequence of the hydraulic roof stage is explained in detail.
Engineering Observation
During this project, the curved roof system consisted of several structural layers:
Why Does the Aluminium Roof Frame Sit on Steel Fork Pillar Supports?
Another important detail observed was the connection between the aluminium roof and the hydraulic roof structure.
The load path was:
Aluminium Curved Roof Frame
↓
Steel Fork Pillar Support
↓
Hydraulic Roof Beam
↓
Main Roof Columns
The reason for combining steel and aluminium is that each material performs a different role.
Steel Fork Pillar Support
Steel provides:
High strength.
Strong connection capacity.
Resistance against concentrated loads.
The fork support transfers roof loads into the main hydraulic structure.
Aluminium Curved Frame
Aluminium provides:
Lower self-weight.
Easier installation.
Better transportation efficiency.
Corrosion resistance.
Because the roof structure must be lifted by hydraulic cylinders, reducing dead weight is extremely valuable.
This is another example of engineering optimisation:
Steel is used where strength is critical. Aluminium is used where weight reduction is important.
What Is a Tent Keder Extrusion Profile?
One of the most interesting details of this roof system is the connection between the aluminium frame and the fabric membrane.
The aluminium profile used for fixing the fabric is commonly known as a:
Tent Keder Extrusion Profile
On construction sites, workers sometimes describe this profile as a “pig nose” shape because of its cross-sectional appearance.
The profile contains a special channel that receives the reinforced edge of the fabric.
The roof fabric itself is manufactured with a reinforced circular rope or bead along its edge.
This bead slides into the Keder channel.
The simplified installation process is:
Fabric Reinforced Edge
↓
Inserted Into Keder Profile
↓
Fabric Pulled Along Curved Roof
↓
Continuous Tension Created
↓
Smooth Roof Surface Formed
This system allows the membrane to be installed and tensioned efficiently without relying on hundreds of individual fixing points.
How Does the Keder System Keep the Roof Fabric Tight?
The key advantage of the Keder system is controlled tension.
The reinforced edge of the fabric locks into the aluminium extrusion.
Because the extrusion has an opening along the profile, the fabric can be pulled from one side of the curved roof toward the other.
As the fabric is tensioned:
Wrinkles are removed.
The membrane becomes smooth.
Wind movement is reduced.
Water drainage improves.
This is why professional temporary roofs do not simply place fabric over a frame.
The fabric and aluminium profile are designed as one integrated system.
Why Is Accurate Fabric Width Calculation Important?
A common misunderstanding is that the roof fabric is simply made slightly larger and tightened during installation.
In reality, the fabric dimension must be precisely calculated.
The curved roof creates a specific arc length.
The fabric must match this geometry.
If the fabric is too large:
Excess material remains loose.
Wrinkles appear.
Water can collect.
If the fabric is too small:
Installation becomes difficult.
Excessive tension may damage the membrane or connection system.
The correct fabric calculation allows the membrane to stretch evenly across the curved structure.
The result is:
Smooth appearance.
Stable tension.
Better weather resistance.
Why Are Curved Roofs Better for Temporary Event Engineering?
The curved roof system provides several combined benefits.
Component
Engineering Function
Curved Aluminium Frame
Lightweight structural support
Steel Fork Support
Transfer concentrated loads
Keder Extrusion
Secure fabric connection
PVC Membrane
Weather protection
Curved Geometry
Improve stiffness and drainage
Bolted Connections
Modular installation
The success of the system comes from the interaction between every component.
No single material creates the final performance.
The Roof Is Designed as a Complete Production System
A modern concert roof must support more than weather protection.
It also provides infrastructure for:
Lighting systems.
Speaker suspension.
Rigging points.
Safety cables.
Production equipment.
The roof height, structural strength and connection details must all be considered together.
This principle is also explained in Why Is the Roof Higher Than the LED Screen?, where the relationship between roof structures and production equipment is discussed.
Engineering Lessons from This Roof System
Several important principles can be learned from this design.
1. Curved Shapes Are Functional, Not Decorative
The arc shape improves structural efficiency, drainage and fabric tension.
2. Material Selection Must Match Structural Requirements
Steel provides strength.
Aluminium provides lightweight performance.
Fabric provides weather protection.
Each material has a specific role.
3. Fabric Engineering Is as Important as Structural Engineering
A roof membrane only performs correctly when:
The frame geometry is correct.
The Keder profile is accurate.
The fabric dimensions are calculated properly.
4. Temporary Structures Require Modular Thinking
Bolted aluminium frames, replaceable components and efficient installation methods are essential for touring event systems.
Conclusion
The curved roof used on modern concert stages is not simply a visual design feature.
It is a carefully engineered system combining:
Steel support structures.
Aluminium curved frames.
Keder extrusion profiles.
PVC roof membranes.
Hydraulic lifting systems.
During the Guangzhou Pearl Beer Festival Music Festival project, the curved aluminium roof demonstrated how temporary event engineering balances strength, weight, weather protection and installation efficiency.
The aluminium frame reduced structural weight.
The steel fork supports transferred loads safely.
The Keder system created continuous fabric tension.
The curved geometry improved drainage and structural performance.
A successful concert roof is therefore not created by one component, but by the precise cooperation of structure, material and connection technology.
