How Are Cables Managed in Large Concert Productions?

Views: 12 Author: Site Editor Publish Time: 2026-07-22 Origin: Site

Inquire

How Are Cables Managed in Large Concert Productions?

Understanding Cable Routing, Protection and Operational Safety Behind Stadium Events

When audiences watch a large concert, they usually focus on:

Stage design.
Lighting effects.
LED screens.
Sound quality.
Performer interaction.

However, behind every successful performance is a complex network that is rarely noticed:

Thousands of power, audio, lighting and signal cables that allow every system to operate correctly.

In a large stadium concert, cable management is not simply an installation task.

It is an important part of:

Operational safety.
Equipment reliability.
Maintenance efficiency.
Weather protection.
Emergency access planning.

A temporary event structure may be structurally safe, but poor cable routing can still create operational risks:

Personnel tripping over cables.
Water entering electrical connections.
Signal interference.
Difficult equipment maintenance.
Blocked access routes.

Therefore:

Professional event cable management is not only about connecting equipment. It is about creating a safe and organised temporary infrastructure.

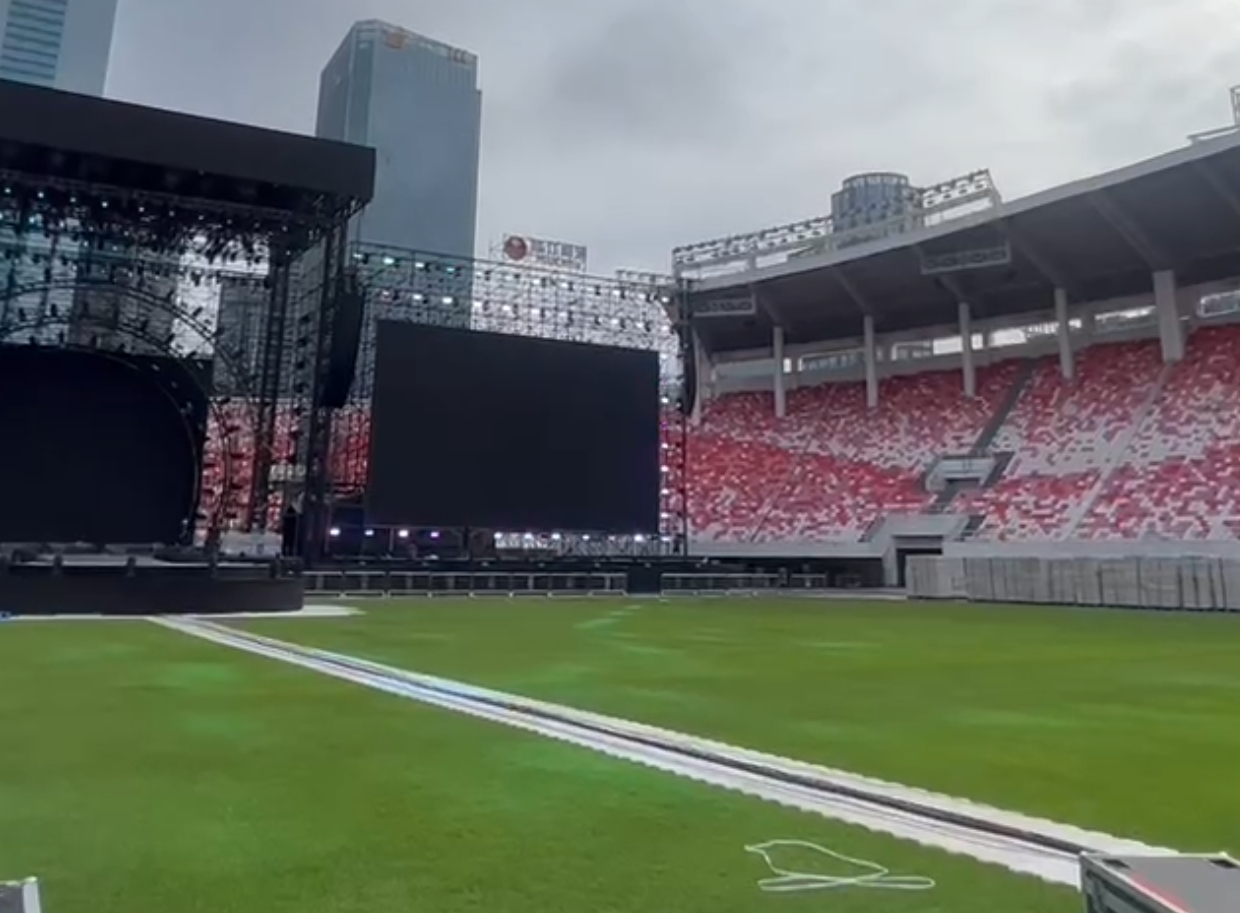

During the 2026 Guangzhou Pearl Beer Festival Music Festival project, several cable management principles could be observed:

FOH equipment areas protected by temporary tents.
Power cabinets and control equipment placed in protected areas.
Dedicated technical zones around the stage.
Separation between performance areas and equipment operation areas.

Although detailed cable tray layouts and cable bridge systems were not publicly visible, these principles represent common engineering practices used in large temporary productions.

The relationship between technical areas and the overall concert layout is introduced in:

Understanding the Layout of a Large Stadium Concert

Why Is Cable Routing Important in Large Concerts?

A stadium concert is essentially a temporary city.

It contains:

Power distribution.
Audio systems.
Lighting systems.
Video systems.
Communication systems.
Control equipment.

Each system requires large numbers of cables.

Typical cable categories include:

System	Cable Function
Power	Supply electricity to equipment
Audio	Transfer microphone and speaker signals
Lighting	Control fixtures and moving lights
Video	Transfer LED and camera signals
Communication	Connect production teams

Without proper planning, cables can quickly become an uncontrolled network.

Cable Routing Is a Safety System

Cable management is often considered an electrical issue.

However, in large events, it is also a safety issue.

A professional cable routing system must solve several problems:

1. Preventing Trip Hazards

Concert environments contain many moving groups:

Performers.
Technicians.
Camera operators.
Security personnel.
Production staff.

Cables crossing walking routes can create hazards.

Solutions include:

Overhead cable routing.
Cable ramps.
Cable bridges.
Protected channels.
Dedicated technical pathways.

The principle is:

Cables should follow planned routes instead of becoming obstacles inside working areas.

2. Protecting Cables from Weather

Outdoor stadium concerts face:

Rain.
Humidity.
Wind-driven water.
Temperature changes.

Electrical equipment requires protection from moisture.

Common solutions include:

Waterproof cable covers.
Raised cable routes.
Protected equipment tents.
Sealed connections.

During the Guangzhou project, many technical equipment areas were protected using temporary tents, especially around FOH and equipment control areas.

These tents helped protect:

Power distribution cabinets.
Control equipment.
Technical devices.

This is especially important during Guangzhou's summer rainy season.

The influence of weather conditions on temporary structures is discussed in:

How Do Temporary Concert Structures Resist Wind Loads?

Cable Routing Around the Main Stage

The main stage contains the highest concentration of technical systems.

It includes:

LED screens.
Lighting systems.
Line arrays.
Moving stage equipment.
Control systems.

Cable routing must consider:

Equipment position.
Structural movement.
Maintenance access.
Performer movement.

A typical principle is:

Equipment

↓

Local Connection Point

↓

Cable Route

↓

Control / Power Area

↓

Main Distribution System

The cable path should be as direct as possible while avoiding:

Public areas.
Moving equipment.
Emergency routes.

Cable Management Around LED Systems

Large LED systems require both:

Power cables.
Signal cables.

A large LED wall may contain hundreds of cabinets.

Cable management must consider:

Cabinet power distribution.
Signal transmission.
Maintenance access.

For example:

Side LED structures supported by Ringlock systems require cable routing that works together with:

Structural members.
Maintenance platforms.
Access routes.

LED support engineering principles are explained in:

How Are Large LED Screens Supported?

and

How To Install And Fix LED Screens on Ringlock Truss

Cable Management Around Audio Systems

Large sound systems require extensive cable networks.

Including:

Speaker signal cables.
Power cables.
Control cables.

For example:

Main stage line arrays require connections between:

Speaker positions.
Amplification systems.
FOH control.

Relay speaker towers require additional long-distance connections between:

Main control system.
Stadium distribution points.
Remote speaker positions.

Cable routing must consider:

Distance.
Protection.
Signal stability.
Access.

The distribution logic of stadium sound systems is discussed in:

How Is a Stadium Sound System Distributed?

FOH Cable Management

FOH is one of the most cable-intensive areas in a concert.

It contains:

Audio mixing.
Lighting control.
Video control.
Communication systems.

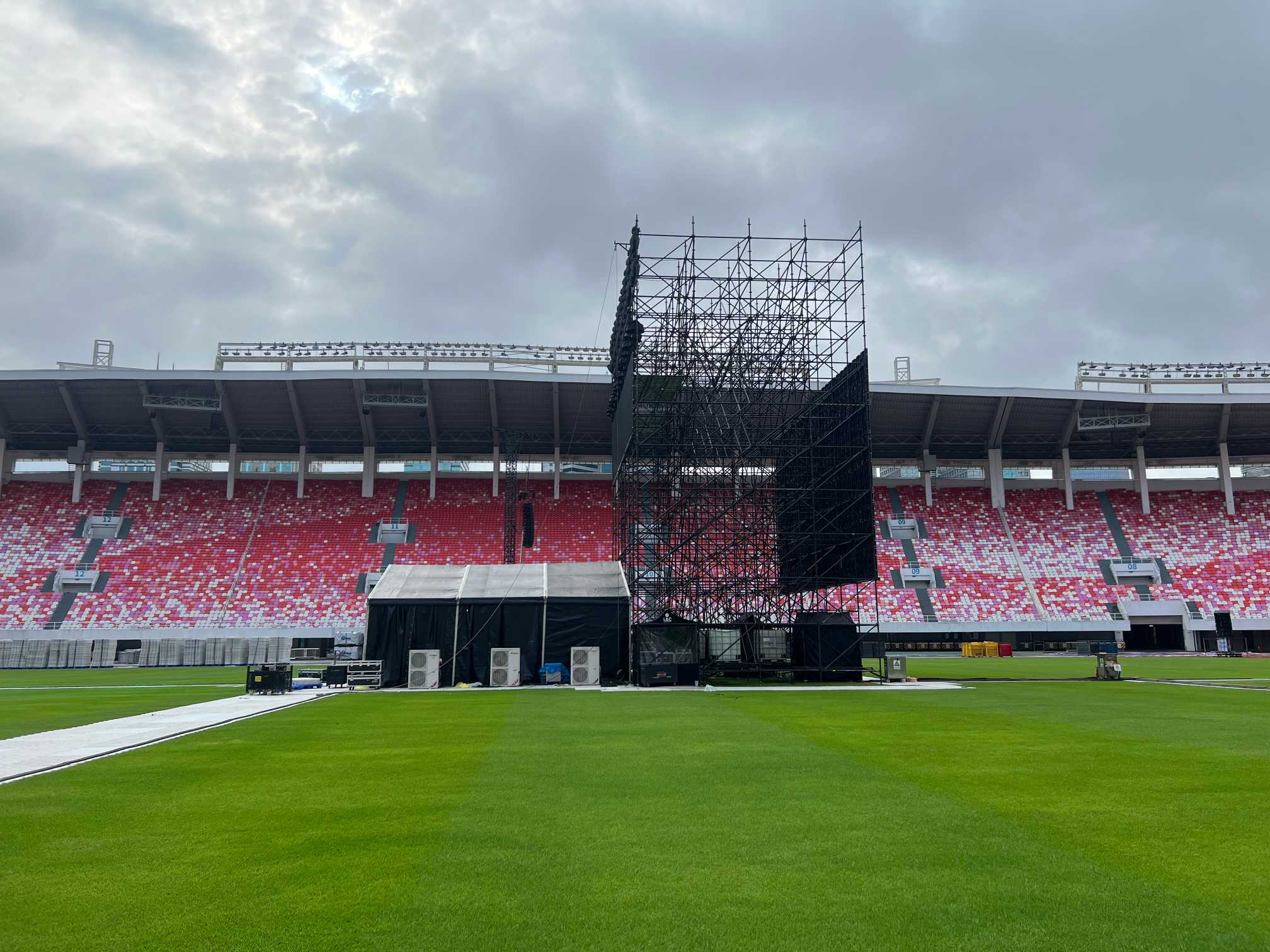

During this project, the FOH consisted of:

A large Ringlock structure.
Front tent structure.
LED systems.
Technical equipment areas.

Because FOH is located in the audience area, cable management must balance:

Technical requirements.
Operator safety.
Audience circulation.

The equipment underneath the FOH structure was protected using multiple smaller tents.

These protected:

Power cabinets.
Control equipment.
Other technical devices.

This arrangement helped reduce risks caused by:

Rain.
Humidity.
Accidental contact.

More about FOH design:

Why Is the FOH Positioned in the Middle of the Audience Area?

Backstage Cable Management

Backstage areas contain many temporary technical functions:

Performer preparation.
Equipment storage.
Lighting control.
Audio support.
Production management.

Cable routing must avoid conflicts between:

Performers.
Technicians.
Equipment transportation.

Typical backstage cable planning includes:

Separating power cables and signal cables.
Keeping access routes clear.
Protecting connections from weather.
Maintaining equipment access.

A good backstage system allows technicians to solve problems quickly without disturbing performance activities.

Cable Routing and Emergency Access

Cable management must work together with emergency access planning.

A cable route should never:

Block stairs.
Reduce walkway width.
Obstruct equipment movement.
Affect emergency passages.

This is why large events often create dedicated technical routes.

The principle is:

Cable Route

+

Access Route

+

Equipment Route

↓

Safe Event Operation

Access planning principles are discussed in:

How Are Emergency Access Routes Planned for Stadium Concerts?

Common Cable Routing Methods in Large Events

1. Ground Cable Protection

Used when cables must cross working areas.

Methods:

Cable ramps.
Cable protectors.
Modular covers.

Advantages:

Protect cables.
Protect people.
Allow equipment movement.

2. Overhead Cable Routing

Used when possible.

Advantages:

Keeps walking areas clear.
Reduces trip hazards.
Protects cables.

3. Dedicated Technical Zones

Large events often reserve specific areas for:

Power distribution.
Signal processing.
Equipment storage.

Advantages:

Easier maintenance.
Better organisation.
Faster troubleshooting.

Cable Management During Rainy Weather

Outdoor concerts require additional attention because water changes the risk level.

Rain can affect:

Power connections.
Signal stability.
Equipment safety.

Protection strategies include:

Equipment Protection

Using:

Temporary tents.
Weather covers.
Raised platforms.

Cable Protection

Using:

Waterproof connectors.
Protected cable routes.
Elevated cable paths.

Maintenance Access

Technicians must still be able to reach equipment safely during changing weather conditions.

Engineering Lessons from Concert Cable Management

1. Cable Routing Is Part of Event Design

It should be planned together with:

Stage layout.
Structural layout.
Equipment position.

2. The Shortest Cable Route Is Not Always the Best

A good cable route must balance:

Distance.
Safety.
Maintenance.
Accessibility.

3. Protection Is More Important Outdoors

Rain and humidity create additional risks.

4. Technical Areas Need Protection

FOH, backstage and equipment zones require controlled environments.

5. Good Cable Management Improves Reliability

A well-organised system helps:

Faster troubleshooting.
Safer operation.
Cleaner production areas.

Conclusion

Cable routing is one of the invisible engineering systems behind a successful stadium concert.

Although audiences rarely notice cables, they support almost every major production function:

Sound.
Lighting.
Video.
Communication.
Power.

A professional temporary event infrastructure requires cables to be:

Properly routed.
Protected from weather.
Separated from public movement.
Accessible for technicians.

The lesson from large concert production is simple:

A safe event is not only built with strong structures. It also depends on well-planned technical systems that allow every component to work together reliably.
