How a Hybrid FOH Compound Supports Sound, Lighting, Cameras, Show Control and Audience Sightlines
Engineering Observation
During the construction of the 2026 Guangzhou Pearl Beer Festival Music Festival, one temporary structure stood out because of both its location and scale.
The Front of House, commonly abbreviated as FOH, was positioned in the central audience area, directly facing the main stage. However, it was not a conventional FOH built entirely inside a single scaffold house.
The observed installation combined several distinct elements:
A ground-level tent measuring approximately 5 × 5 metres
A tall, multi-level Ringlock scaffold structure positioned behind the tent
An elevated platform facing the centre of the stage
Lighting fixtures mounted on the upper structure
A large LED screen installed on the audience-facing side
Several smaller tents beneath and around the Ringlock structure
This arrangement suggests that the FOH was not designed merely as an audio mixing position. It functioned as a temporary production compound integrating sound control, lighting operation, show direction, camera positioning, front lighting, video compensation and weather-protected equipment areas.
This article separates directly observable features from engineering interpretation. Functions that could not be confirmed from project documents are described as likely functions rather than established facts.
What Is the FOH at a Concert?
FOH originally refers to the technical control position located in front of the stage and within the audience area.
At a basic concert, it may contain little more than an audio mixing console. At a stadium-scale production, however, the FOH can accommodate several technical and production teams, including:
Front-of-house audio engineers
Lighting console operators
Show directors
Video control personnel
Communication and intercom operators
Timecode and playback technicians
Camera personnel
Technical supervisors
The FOH therefore acts as the operational interface between the performance taking place onstage and the experience received by the audience.
In a modern Concert & Event application, the stage, sound system, lighting system, video equipment, cameras and show-control network must operate as one coordinated production. The FOH is one of the main locations from which this coordination is observed and controlled.
1. The Audio Engineer Must Hear What the Audience Hears
The most fundamental reason for positioning the FOH within the audience area is sound evaluation.
An audio engineer cannot judge the audience experience accurately from backstage or from one side of the stage. Sound near the loudspeakers is different from sound in the main listening area.
The engineer needs to evaluate:
Overall sound pressure
Vocal clarity
Instrument balance
Low-frequency distribution
Left and right system balance
Reflections from the venue
Main-array and delay-system alignment
Changes in sound as the audience fills the stadium
A long, narrow performer-facing LED prompt display
A position near the centre of the principal audience zone provides a more representative listening reference than a location beside or behind the stage.
This does not mean that every spectator hears exactly what the engineer hears. Stadium acoustics vary significantly across seating zones. Nevertheless, a central FOH location gives the engineer a practical reference point from which the main system can be controlled and adjusted.

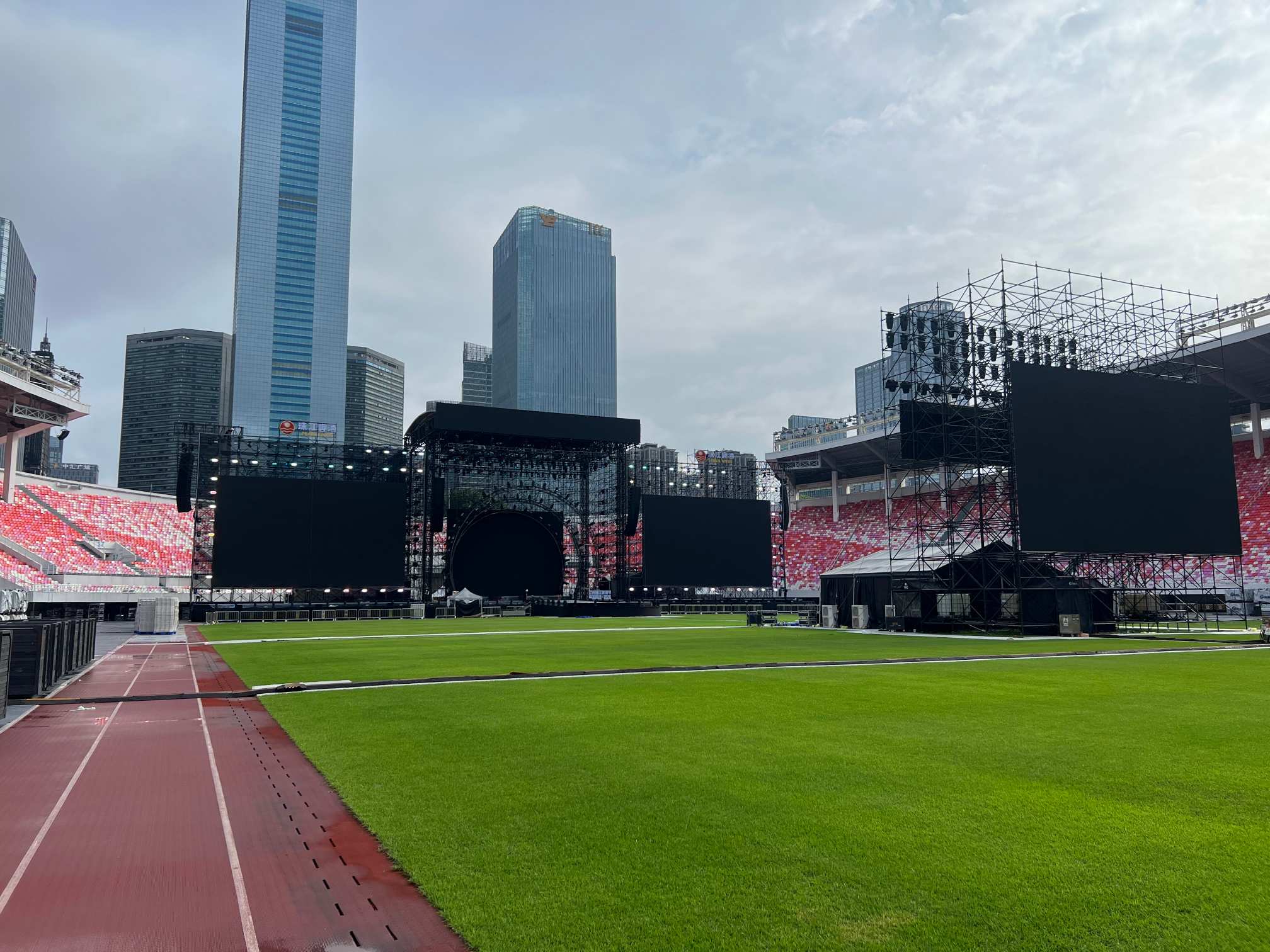

The relationship between the main stage, FOH and relay speaker towers should therefore be understood as part of one complete production layout rather than as a collection of unrelated structures. This system-level approach is consistent with the Modular System Logic for Stage, Truss and Scaffold, in which individual structures perform different roles within one coordinated temporary installation.
2. Lighting Operators Need the Audience’s Viewing Perspective
The lighting team also benefits from a central position facing the stage.
Lighting design is not evaluated only by checking whether fixtures turn on or whether the stage is sufficiently bright. Operators must see the visual composition presented to the audience.
From the FOH, the lighting team can assess:
Beam direction
Colour balance
Brightness relationships
Symmetry across the stage
Performer visibility
Lighting cue timing
Effects on the main LED screens
Illumination of the extended runway
Interaction between stage lighting and camera exposure
A lighting console placed backstage would provide poor visual feedback. Operators might see equipment working correctly without seeing whether the final stage picture appears balanced from the audience’s viewpoint.
The central FOH position therefore allows the lighting designer to evaluate the stage as a complete image.
3. The FOH Functions as a Show-Control Centre
In a large concert, the performance is managed through continuous communication between multiple departments.
The director or show caller may need to coordinate:
Performer entrances
Music playback
Lighting cues
Video playback
Live camera switching
Special effects
Stage movement
Safety instructions
Programme timing
Emergency responses
From a central FOH position, the production team can observe both the stage and a substantial part of the audience area.
This visual relationship is important. A control team does not only respond to a prepared cue list. It must also respond to real conditions, including delayed performer movement, audience behaviour, equipment faults or unexpected weather changes.
For this reason, the FOH can be understood as the operational brain of the live production. The main stage remains the visible centre of the event, but the FOH is one of the places where many technical decisions are converted into coordinated action.
The planning of these interdependent functions forms part of a wider Engineering Solution, because structural layout, equipment requirements, operator access and communication systems must be considered before installation begins.
4. This Project Used a Hybrid FOH Instead of a Conventional Scaffold House
One of the most distinctive characteristics of this project was the separation between the ground-level control tent and the tall Ringlock structure.
In many concerts, the FOH is constructed as a scaffold house. The control consoles, technicians, roof, upper platform and equipment areas are integrated into one temporary structure.
The observed arrangement at this event was different.
A tent measuring approximately 5 × 5 metres was positioned in front of the tall Ringlock tower rather than being enclosed within it. The two structures appeared to form a connected FOH compound while performing different functions.
The ground-level tent
The front tent likely provided a more suitable environment for operating sensitive technical equipment.
Possible advantages include:
Direct weather protection
Reduced exposure to sunlight
Easier temperature control
Better protection from wind-driven rain
A relatively enclosed working environment
Convenient ground-level access
Easier installation of large control consoles
Audio, lighting and video consoles require stable working conditions. Even when equipment is designed for touring use, continuous exposure to rain, condensation, excessive heat or direct sunlight can increase operational risk.
A tent can therefore provide environmental protection without requiring the entire FOH to be enclosed within a large scaffold house.
The Ringlock production tower
The tall Ringlock structure, by contrast, provided height, platform capacity and unobstructed sightlines.
Its possible functions included:
Elevated camera positions
Front-lighting support
Production observation
Communication equipment installation
Antenna or signal equipment support
Additional technical working platforms
The distinction is important:
The tent provided an operating environment, while the Ringlock structure provided elevation and structural capacity.
This hybrid arrangement demonstrates how temporary structures can be combined according to function instead of forcing every technical requirement into one conventional building form.
5. Why Was the Ringlock Tower Positioned Behind the FOH Tent?
Placing the tall Ringlock structure behind the ground-level tent preserved the direct relationship between the console operators and the stage.
If the tower had been positioned in front of the control tent, its columns, braces, platforms and installed equipment could have interfered with the operators’ sightlines.
The observed sequence was therefore logical:
Main stage → ground-level control tent → elevated Ringlock production tower → audience behind the FOH
This arrangement allowed ground-level operators to maintain a relatively direct view of the performance while the upper structure supplied elevated production positions.
It also separated two working environments:
Console-based operations at ground level
Camera, lighting and observation functions at height
Although the individual functions would need to be confirmed by project documentation, the physical arrangement strongly supports this interpretation.
6. The Upper Platform Likely Served as a Front Camera Position
The uppermost platform faced the stage from a central and elevated location.
Based on its orientation, this position was consistent with a main front-camera platform.
A central camera position can provide:
A symmetrical view of the main stage
Wide shots of the complete production
Direct views along the centreline
Clear coverage of the extended runway
Audience-and-stage composition shots
Stable footage for live LED-screen content
Reference footage for programme recording
For concerts using large LED screens, camera positions are not only used for recording. They are part of the live audience experience.
Spectators far from the stage often rely on real-time camera images to see performers clearly. The camera system therefore becomes part of the event’s visual distribution system, in much the same way that relay speaker towers extend audio coverage.
A high central position is particularly useful for capturing performers walking onto a projecting runway. Side cameras can provide dramatic angles, but a centrally positioned camera delivers a more balanced front view of the stage and runway.
7. The Upper Structure Also Supported Front Lighting
Lighting fixtures were visibly mounted on the upper Ringlock structure.
Their position suggests that the tower also contributed to front lighting, particularly for the stage and its extended runway.
Most stage lighting fixtures are installed:
Above the stage
Behind the performers
At the sides of the stage
On lighting wings
On overhead trusses
These positions create depth, colour, beam effects and backlighting. However, they do not always provide sufficient frontal illumination for the performers’ faces.
This becomes especially important when performers walk onto an extended platform projecting into the audience area.
Once the performer moves beyond the main roof and overhead lighting grid, the available lighting angles change. Fixtures positioned on the FOH tower can illuminate the performer from the front and help maintain visual continuity between the main stage and the extended runway.
Front lighting from the FOH area may support:
Facial visibility
Camera exposure
Natural skin tones
Runway illumination
Balanced frontal brightness
Reduced facial shadows
Clearer live-screen images
This illustrates an important principle: the FOH tower was not necessarily only a place for people. It could also function as an equipment-support structure within the overall lighting design.
Any such installation must consider fixture weight, mounting points, platform loading, dynamic effects, access and secondary safety attachments. These considerations relate directly to Load Analysis for Modular Stage Systems, even when the supporting structure is Ringlock scaffold rather than a conventional stage platform.

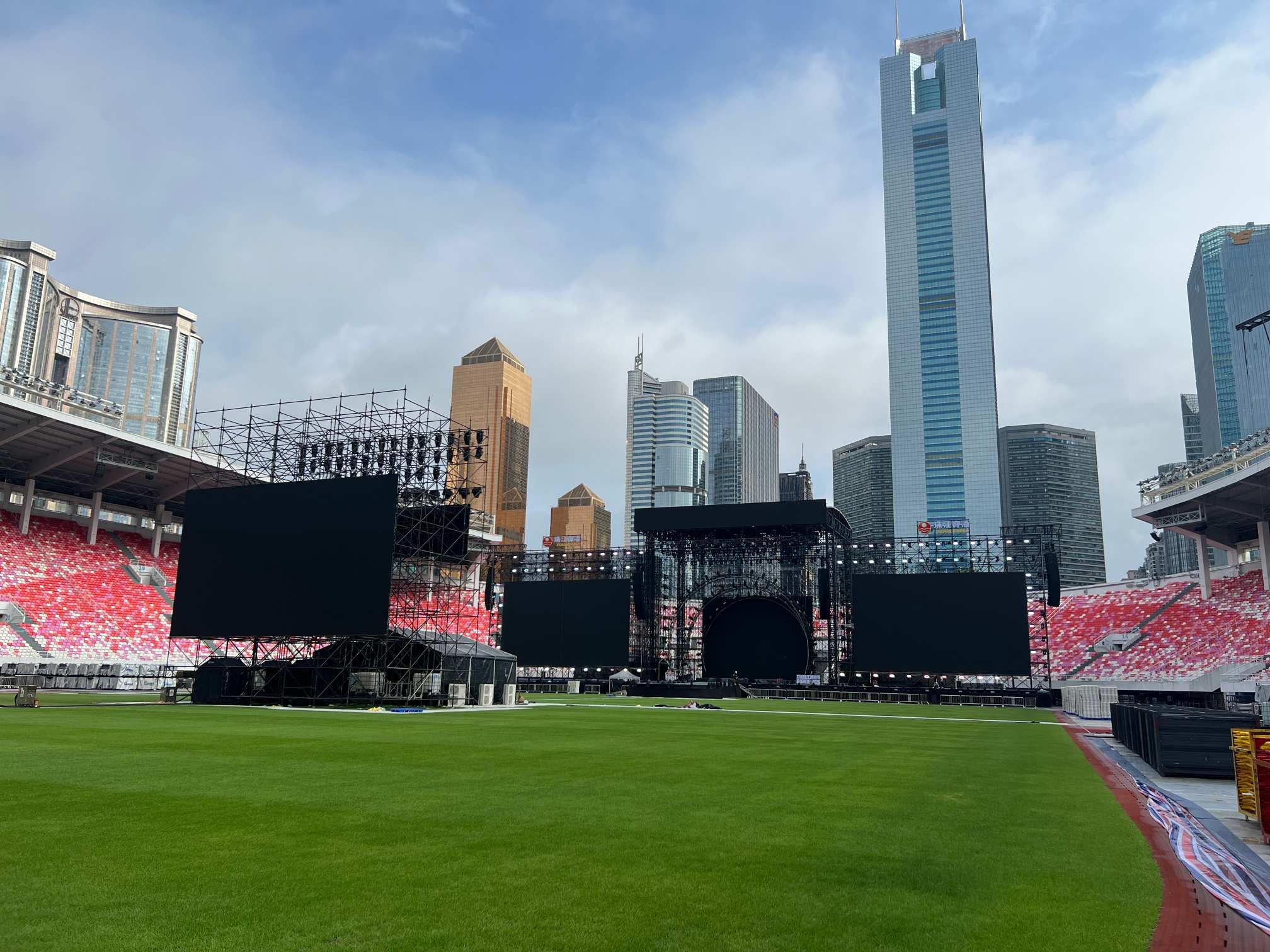

8. The Stage-Facing LED Display Functioned as a Performer Prompt Screen

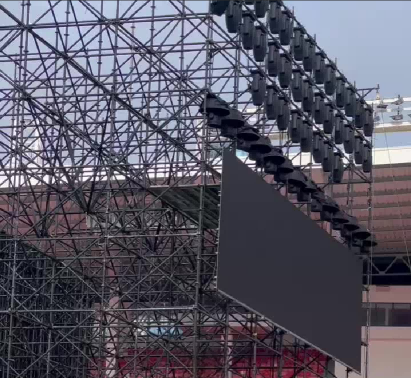

Another important feature was a long, narrow LED display installed on the side of the FOH structure facing the main stage.
Unlike the large LED screen mounted on the audience-facing side of the Ringlock tower, this display was not intended for spectators. Its orientation, elongated format and direct line of sight toward the stage indicate that it functioned as a performer prompt screen, commonly referred to as a lyrics screen or confidence monitor.
During a large concert, performers may need to follow more than song lyrics. A prompt display can present information such as:
Lyrics
Song titles
Running order
Speaking cues
Timing reminders
Guest introductions
Programme transitions
Emergency or production instructions
Positioning the display on the FOH structure provides several practical advantages.
First, the FOH is located directly in front of the stage and close to the venue centreline. This allows performers to look forward rather than turn toward a side-stage monitor.
Second, the distance between the FOH and the stage allows the screen to be made large enough for performers to read while remaining outside the main stage scenery.
Third, because the FOH already receives programme signals, communication links and technical power, integrating a prompt screen into the same production compound may simplify signal distribution and operational coordination.
The long horizontal format is also consistent with its likely purpose. A confidence monitor does not need to reproduce a complete stage image. It mainly needs to display several lines of clear, high-contrast text that can be read quickly from a long distance.
For performers using the extended runway, the centrally positioned display may remain visible even after they move away from the main stage. This makes the FOH location particularly suitable for a prompt system serving both the primary performance area and the projecting walkway.
As with other observed equipment functions, confirmation would require access to the production system documents. However, the display’s orientation, proportions and position are strongly consistent with a performer-facing prompt screen.
9. A Large FOH Creates a Serious Audience Sightline Problem
The central position that makes the FOH technically valuable can also make it disruptive to spectators.
A small control booth may block only a limited portion of the viewing area. A tall multi-level Ringlock tower, however, can obstruct the stage for a much larger group of spectators behind it.
The obstruction may be caused by:
Vertical standards
Diagonal braces
Working platforms
Roof structures
Installed lighting fixtures
Camera equipment
Personnel
Weather-protection materials
Cable routes
In this project, the FOH compound had become sufficiently large that it affected the direct stage view from the central audience area behind it.
This creates a design conflict:
The production team needs a central technical position, but the audience also needs an uninterrupted visual connection with the stage.
The location cannot simply be moved to one side, because that would compromise acoustic judgement, camera symmetry and the operators’ viewing perspective.
The solution must therefore reduce the consequences of the obstruction rather than eliminate the FOH itself.
10. The Audience-Facing LED Screen Provided Visual Compensation

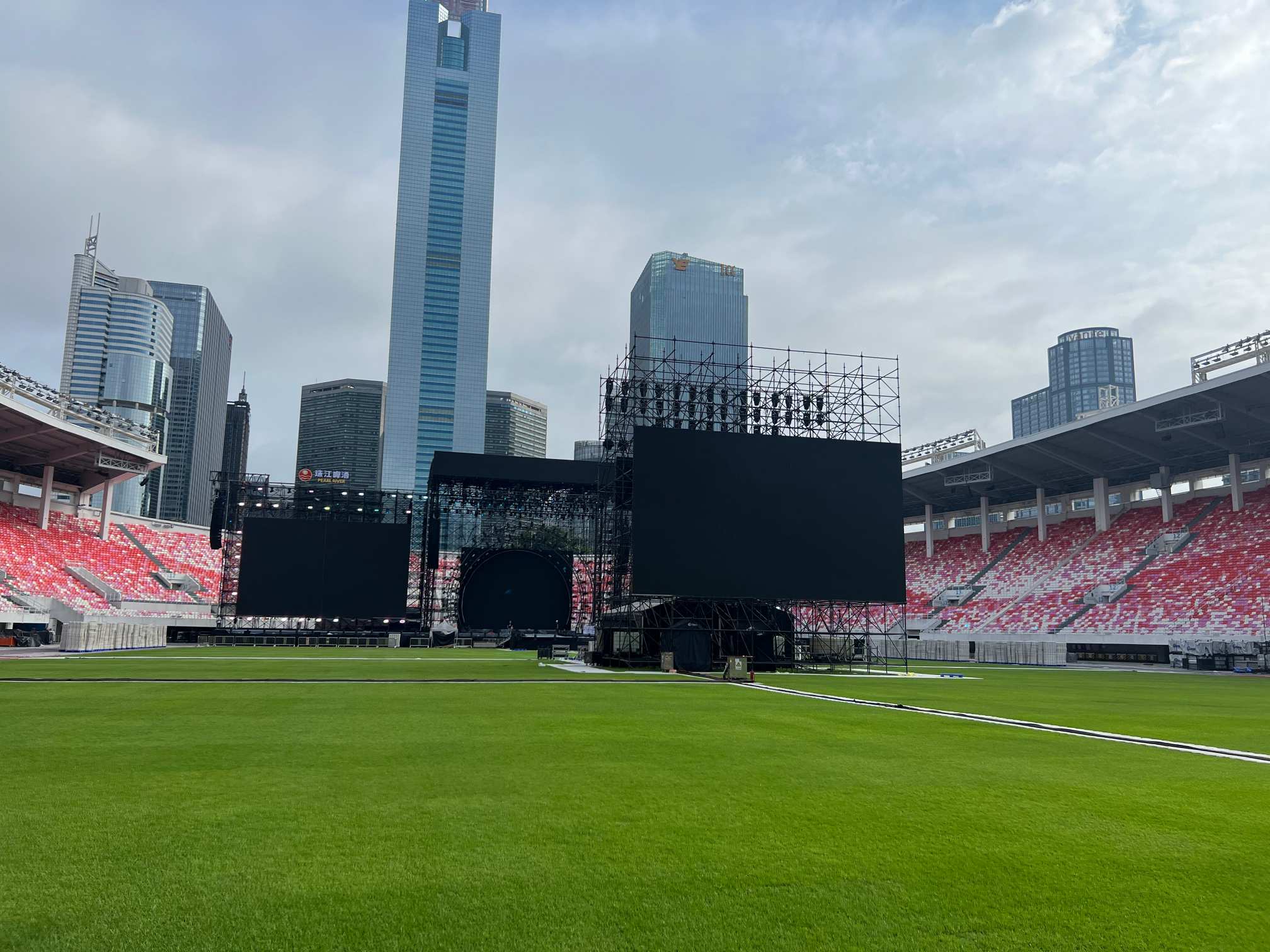

A large LED screen was installed on the side of the Ringlock tower facing away from the stage and toward the spectators behind the FOH.
This was one of the clearest responses to the sightline problem.
The screen could not remove the physical obstruction. However, it could restore access to live visual content for the affected audience.
Its likely functions included:
Displaying live camera images of performers
Showing stage close-ups
Reproducing programme video content
Maintaining visual engagement behind the FOH
Reducing the negative effect of the blocked stage view
Supporting spectators who could not see the extended runway directly
This can be described as visual compensation.
The screen did not make the FOH transparent. Instead, it transformed the audience-facing side of the obstruction into an additional display surface.
This leads to a broader event-planning principle:
The larger the FOH becomes, the more it must be treated not only as a technical facility but also as an object within the audience’s sightline.
A large FOH changes the venue layout. Its dimensions, height and position must therefore be considered during audience planning, camera planning and screen distribution.
The project demonstrates how temporary video infrastructure can be used to balance technical production needs with audience experience.
11. Why Were Several Small Tents Installed Under the Ringlock Structure?
Several smaller tents were positioned underneath and around the Ringlock tower.
Based on their size, location and surrounding equipment, these tents appeared to be technical protection areas rather than audience facilities.
The event was constructed during Guangzhou’s summer rainy season. Under these conditions, power-distribution equipment, signal systems and electronic control devices require protection from:
Direct rainfall
Wind-driven rain
Ground splash
Condensation
Persistent humidity
Water entering cable connections
Water accumulation around equipment bases
Possible equipment housed within these protected areas included:
Power-distribution cabinets
Lighting control equipment
Video-processing equipment
Network devices
Signal-distribution units
Communication equipment
Cable connection points
Backup electrical devices
The Ringlock tower itself provided structural height and platform capacity, but it did not automatically provide a fully waterproof environment.
Scaffold structures contain open sides, joints, platform gaps and multiple vertical routes through which water may travel. Even when a roof is installed above the structure, equipment at ground level may remain exposed to wind-driven rain or water runoff.
The smaller tents therefore provided localised environmental protection close to the equipment.
This creates a clear functional division:
Engineering requirement
Observed solution
Central sound and show control
FOH positioned in the audience area
Protected console environment
Approximately 5 × 5 m ground-level tent
Elevated camera and observation position
Multi-level Ringlock tower
Front lighting for the stage and runway
Fixtures mounted on the upper structure
Compensation for blocked audience views
Large audience-facing LED screen
Protection of electrical and control equipment
Multiple small tents below the tower
Lyrics, timing and performance cues
Long stage-facing LED prompt display
The design did not rely on one structure to solve every problem. Instead, different temporary systems were combined according to their strengths.
12. Weather Protection Is More Than Installing a Roof
A common misunderstanding in temporary-event construction is that installing a roof above equipment is sufficient to make the area weatherproof.
In reality, rain protection must consider the complete water path.
Questions include:
Can wind blow rain through the sides?
Where does roof runoff discharge?
Can water collect beneath equipment?
Are cables entering from above?
Are connectors raised from the ground?
Is drainage available?
Can condensation form inside enclosed areas?
Can technicians access equipment safely during rain?
Are distribution cabinets suitable for the environment?
Small equipment tents may appear visually secondary, but they can perform an important risk-control function.
The protection of electrical equipment must also remain compatible with ventilation, cable access and emergency operation. Completely enclosing heat-producing equipment without considering airflow could introduce another hazard.
Weather protection is therefore an engineering balance rather than a simple covering operation. It should be integrated with the wider Safety Standards and Engineering Constraints governing temporary event installations.
13. FOH Positioning Is a Balance, Not a Perfect Point
There is no universal location that is ideal for every FOH.
If it is positioned too close to the stage:
Sound levels may be unrepresentative
The engineer may hear excessive direct energy from the main arrays
The visual field may be too narrow
Camera framing may become less useful
If it is positioned too far away:
The listening position may be dominated by delay speakers
Communication and cable distances increase
Stage details become more difficult to observe
Front-lighting angles may become too shallow
If it is positioned to one side:
Stereo judgement becomes less accurate
The visual composition becomes asymmetrical
The main camera angle may be compromised
Lighting evaluation no longer reflects the central audience view
The final position must balance:
Acoustic reference
Stage visibility
Camera requirements
Lighting angles
Audience capacity
Emergency circulation
Cable routing
Relay speaker locations
Sightline obstruction
Structural footprint
This explains why FOH planning cannot be separated from the overall venue layout. It belongs within the same decision process as stage placement, audience zoning, relay tower positioning and emergency access.
14. The FOH Is a Temporary Building Designed for Precision
Although the FOH may exist for only a few days, it must support precise and continuous technical operations.
Its design may need to provide:
Stable and level working platforms
Safe stairs or access routes
Guardrails
Weather protection
Equipment loading capacity
Cable management
Lighting-fixture support
Camera stability
Power distribution
Communication links
Emergency access
Safe separation from the public
The FOH should therefore be treated as a temporary technical building rather than as an informal collection of consoles and scaffolding.
Its construction method should consider not only whether the structure can stand, but also whether technicians can work inside it safely and efficiently for many hours.
Temporary structures achieve this through the coordinated use of connection systems, platforms, braces, bases, roofs and access components. The engineering relationship between these parts is explained further in the Connection and Material System.
More Than a Mixing Booth
To many spectators, the FOH is simply a large temporary structure blocking part of the central audience area.
From an engineering perspective, it is much more.
It provides a location where the production team can hear what the audience hears, see what the audience sees and coordinate sound, lighting, cameras, video and show timing from a shared operational position.
The FOH observed at the 2026 Guangzhou Pearl Beer Festival Music Festival was particularly notable because it was not built as a conventional single scaffold house.
Instead, it combined:
A protected ground-level control tent
A tall Ringlock production tower
A likely central camera platform
Front-lighting positions
An audience-facing LED screen
Multiple rain-protection tents for technical equipment
A stage-facing LED prompt screen for performers
This configuration reveals the engineering trade-offs behind a modern stadium concert.
The technical team needs a central position, but that position can obstruct the audience. High platforms improve camera and lighting functions, but exposed technical equipment still requires local environmental protection. A larger production centre can support more functions, but it must also become part of the audience sightline and video-distribution strategy.
The FOH is therefore not merely positioned in the middle of the audience because the audio engineer needs a good listening point.
It is positioned there because modern live production requires a central location where acoustic judgement, visual observation, show direction and technical coordination can operate together.
In this project, that requirement produced a hybrid FOH compound that balanced production capability, weather protection and audience experience within one temporary event layout.
A 3×6m aluminum pagoda tent is created by connecting two standard 3×3m pagoda tents with an integrated rain gutter system. It provides a larger covered area while maintaining the modular flexibility of individual pagoda tents, making it ideal for exhibitions, weddings, outdoor events, and commercial activities.
we also call it Exhibition Tent, Wedding Celebration Tent, VIP tent
the price has including the curtain walls and roofing.
The Aluminum Outdoor European-style Pointed Top Tent is a remarkable addition to any outdoor event or gathering. With its elegant design and sturdy construction, this tent offers both functionality and style.
Protect exposed floor cables and reduce trip hazards with our carpet cable cover mat. Featuring a durable PVC construction with a non-slip rubber base, it is ideal for exhibitions, conferences, offices, hotels, event venues, stages, schools, and temporary cable management applications.
Compatible with F32-F34 lighting systems, this boom arm is a perfect addition to any professional studio or on-location shoot. Its lightweight construction makes it easy to transport and set up, while its durable design ensures that it will provide years of reliable service.
- Material: Aluminium 6061 T6 - Dimensions (H x W x D): 90(40) x 150 x 40mm - Weight: 2.5kg
The MQ-G137 IP65 Battery Powered Wireless DMX LED Linear Wash Light is a professional outdoor lighting fixture designed for concerts, festivals, architectural lighting, wedding productions, rental companies, television studios, hotels, churches, and large-scale event installations. Available with 21 or 18 high-brightness 10W RGBWA+UV LEDs, it combines a built-in rechargeable battery, 2.4GHz Wireless DMX, and IP65 waterproof protection to deliver powerful linear wash lighting without the need for external power or signal cables.
Unlike traditional PAR fixtures, the MQ-G137 features a linear bar design, making it especially suitable for evenly illuminating walls, stage backdrops, trusses, scenic elements, and architectural façades. Its wide coverage, vibrant RGBWA+UV color mixing, and cable-free operation make it an excellent solution for both indoor and outdoor professional lighting applications.
The MQ-IP1815 IP65 Battery Powered Wireless DMX LED Wash Light is a high-output professional lighting fixture engineered for concerts, festivals, touring productions, architectural lighting, rental companies, television studios, churches, hotels, and outdoor event installations. Featuring 18 high-brightness 15W RGBWA+UV LEDs, a 19500mAh rechargeable battery, built-in 2.4GHz Wireless DMX, and IP65 waterproof construction, it delivers powerful, uniform wash lighting without the limitations of power or signal cables.
Its high-power LED engine produces intense color output with smooth RGBWA+UV mixing, making it suitable for illuminating large stages, building façades, event backdrops, and landscape features. Designed for rapid deployment, the MQ-IP1815 helps production crews reduce installation time while maintaining professional lighting performance in demanding indoor and outdoor environments.
To learn more about complete lighting systems, visit our Stage Lighting knowledge hub. The MQ-IP1815 integrates seamlessly with our LED Par Lights, Wash Lights, and professional Lighting Accessories.
The MQ-G90 IP65 Battery Powered Wireless DMX LED Uplight is a professional rechargeable LED wash light designed for concerts, weddings, architectural lighting, churches, hotels, rental companies, exhibitions, and outdoor events. Equipped with 9 high-brightness 12W RGBWA+UV LEDs, a built-in rechargeable battery, 2.4GHz Wireless DMX, WiFi, and IP65 waterproof protection, it delivers powerful, uniform illumination while eliminating the need for power and signal cables.
Its multi-LED design creates smooth color blending and consistent wash coverage, making it particularly suitable for wall washing, venue decoration, stage backgrounds, architectural facades, and landscape lighting. Combined with flexible wireless control and durable outdoor construction, the MQ-G90 is an efficient lighting solution for professional event productions.
The MQ-G40 IP65 Battery Powered Wireless DMX LED Uplight is a professional rechargeable lighting fixture engineered for weddings, concerts, festivals, architectural lighting, hotels, churches, rental companies, and outdoor events. Featuring four high-output 20W RGBWA+UV LEDs, a built-in rechargeable battery, 2.4GHz Wireless DMX, WiFi connectivity, and IP65 waterproof protection, it delivers exceptional flexibility for both indoor and outdoor lighting applications.
Designed for cable-free installation, the MQ-G40 eliminates the need for extensive power and signal wiring, making it ideal for temporary productions where quick setup and clean venue presentation are essential. Its rich RGBWA+UV color mixing and multiple control options allow lighting designers to create vibrant uplighting, wall washing, stage decoration, and architectural illumination with ease.
To explore more professional lighting solutions, visit our Stage Lighting knowledge hub. The MQ-G40 pairs perfectly with our LED Par Lights, Wash Lights, and professional Lighting Accessories
The MQ-A202 LED Battery Powered Wireless DMX Moving Head Light is a compact and portable professional lighting fixture designed for mobile entertainment, rental companies, weddings, concerts, exhibitions, hotels, churches, and stage productions. Featuring a built-in 4800mAh rechargeable battery and integrated Wireless DMX512, it provides completely cable-free operation for fast installation and flexible lighting deployment.
Powered by a high-performance RGBW 4-in-1 LED light source with a service life of up to 50,000 hours, the MQ-A202 delivers vibrant color mixing, smooth movement, and reliable performance. Multiple control modes—including DMX512, Wireless DMX, Auto, Sound Active, and Master-Slave—allow the fixture to adapt easily to both professional lighting systems and standalone applications.
The MQ-A202 LED Battery Powered Wireless DMX Moving Head Light is a compact and portable professional lighting fixture designed for mobile entertainment, rental companies, weddings, concerts, exhibitions, hotels, churches, and stage productions. Featuring a built-in 4800mAh rechargeable battery and integrated Wireless DMX512, it provides completely cable-free operation for fast installation and flexible lighting deployment.
Powered by a high-performance RGBW 4-in-1 LED light source with a service life of up to 50,000 hours, the MQ-A202 delivers vibrant color mixing, smooth movement, and reliable performance. Multiple control modes—including DMX512, Wireless DMX, Auto, Sound Active, and Master-Slave—allow the fixture to adapt easily to both professional lighting systems and standalone applications.
The MQ-A201 LED Battery Powered WDMX Mobile Bar Light is a compact all-in-one lighting fixture designed for mobile productions, concerts, weddings, clubs, exhibitions, churches, and rental companies. Equipped with a high-capacity 9600mAh rechargeable battery and built-in Wireless DMX (WDMX), it delivers complete cable-free operation while significantly reducing installation time.
The fixture integrates RGBW moving heads, kaleidoscope effects, wash lighting, green lasers, and high-power white strobe LEDs into one portable unit, allowing lighting designers to create dynamic visual effects from a single fixture. With multiple control modes including DMX512, WDMX, Sound Active, Auto Run, and Master-Slave operation, the MQ-A201 is suitable for both professional lighting engineers and mobile entertainers.
For customers planning complete lighting systems, our Stage Lighting knowledge hub introduces different lighting technologies and fixture types. This fixture also works well alongside our Moving Lights, LED Par Lights, and professional Lighting Accessories to build flexible event lighting systems.
The Dragon Stage X5 Karaoke Processor combines professional DSP processing, karaoke effects and speaker management in one unit. Featuring 32-bit DSP, 24-bit audio processing, parametric EQ, feedback suppression, delay, limiter and multiple output control for KTV, bars and entertainment venues.
The Dragon Stage FIR Digital Speaker Processor features a 4-input, 8-output DSP architecture with FIR filtering, 32-bit DSP processing, advanced crossover control, parametric EQ, delay, limiter and professional loudspeaker management for touring, concerts and fixed installations.
The Dragon Stage Digital Speaker Processor Series provides professional DSP loudspeaker management with 2×4, 2×6, 3×6 and 4×8 configurations. Featuring 56-bit DSP processing, 192kHz sampling, advanced crossover filters, EQ, delay, limiter and remote control for professional PA and touring sound systems.
The AD 2U Class D Digital Power Amplifier Series delivers high-efficiency 2-channel amplification with Dual PFC technology, wide-voltage operation and stable performance down to 2Ω. Designed for touring, concerts, rental companies and fixed sound installations.
The AD Class D 1U Professional Power Amplifier Series combines lightweight 1U rack design, Class D amplification, Dual PFC technology and wide-voltage operation. Available in 2-channel and 4-channel models up to 2400W per channel, it is ideal for touring, concerts, rental companies and fixed installations.
The AF 4-Channel Professional Power Amplifier Series features dual transformer architecture and delivers up to 4×1100W at 8Ω. Designed for touring, concerts, stadiums and professional installations, it provides high headroom, low distortion and reliable continuous performance.
The A 4-Channel Professional Power Amplifier Series delivers reliable four-channel amplification from 4×400W to 4×800W at 8Ω, featuring low distortion, high damping factor and efficient operation for professional PA systems, conference venues, theaters and fixed installations.
The A High Power Professional Amplifier Series delivers ultra-high output from 2×1300W to 2×1800W at 8Ω, offering low distortion, high damping factor and stable performance for large-scale concerts, line array systems, passive subwoofers and touring sound reinforcement.
The A Professional Power Amplifier Series delivers reliable 2-channel amplification from 2×400W to 2×800W, featuring bridge mode, high damping factor, low distortion and stable performance for concerts, line array systems, PA speakers and fixed installations.
The L Professional Power Amplifier Series provides high-output 2-channel amplification from 2×400W to 2×1000W, featuring bridge mode, low distortion and reliable performance for line array, PA speakers and professional sound systems.
The AP Professional Power Amplifier Series delivers reliable 2-channel amplification for line array systems, PA speakers, monitor speakers and conference audio installations with low distortion, high damping factor and stable performance.
Explore the Dragon Stage HL Line Array Speaker Series, including compact passive line array speakers, active subwoofers and complete sound reinforcement systems for concerts, churches, conference halls, theaters and professional live events.
The HL1650 6.5-inch passive line array speaker delivers powerful sound reinforcement, high speech intelligibility and wide audience coverage for concerts, churches, conference halls, theaters and medium-sized live events. Compatible with the HL112BA active subwoofer and DSP system.
Discover the HL Large Line Array Speaker Series from Dragon Stage, featuring professional dual 10-inch and dual 12-inch line array speakers designed for concerts, festivals, touring productions, stadiums, churches and large-scale sound reinforcement. High output, long throw and scalable system configurations.
The Professional Auditorium Sound System is designed for large indoor venues accommodating approximately 2,000–2,500 people. The system combines high-performance line array loudspeakers, cardioid subwoofers, stage monitors, digital mixing consoles, network audio transmission, and power distribution equipment to provide excellent speech intelligibility and powerful music reproduction. Suitable for churches, theaters, conference centers, convention halls, and multipurpose auditoriums, this solution supports live events, worship services, conferences, and broadcasting applications.
Explore the Dragon Stage Professional Monitor Speaker Series, including passive and active stage monitor speakers designed for concerts, live performances, churches, theaters and professional sound reinforcement. Available in 12-inch and 15-inch configurations for clear on-stage monitoring.
Discover the HC Premium Coaxial Monitor Speaker Series from Dragon Stage. Featuring coaxial driver technology, Class-H power amplification and compact wedge enclosures, the HC Series delivers high-output, accurate stage monitoring for concerts, touring productions, theaters and professional live performances.
Discover the HKV Entertainment Speaker Series from Dragon Stage. Designed for karaoke rooms, bars, restaurants, clubs, lounges and commercial entertainment venues, the HKV Series delivers clear vocals, dynamic music reproduction and reliable performance in compact, stylish enclosures.
Discover the HKQ Premium Entertainment Speaker Series from Dragon Stage. Featuring wider sound coverage, higher output and professional acoustic performance, the HKQ Series is designed for karaoke venues, clubs, bars, lounges, restaurants and commercial entertainment applications.
Explore the HKE & HK Professional Entertainment Speaker Series from Dragon Stage. Designed for karaoke rooms, clubs, bars, restaurants and commercial entertainment venues, these full-range speakers deliver powerful music reproduction, clear vocals and reliable long-term performance.
Discover the HDF Club Speaker Series from Dragon Stage. Designed for nightclubs, DJ booths, dance floors and entertainment venues, the HDF Series combines high-output full-range speakers with powerful subwoofers to deliver dynamic music reproduction, deep bass and exceptional club performance.
Discover the HP Multi-Purpose Professional Speaker Series from Dragon Stage. Available in passive and active versions, the HP Series is designed for FOH, stage monitoring, side fill, conference rooms, bars, houses of worship, schools and outdoor sound reinforcement.
Discover the HV High-Power Multi-Purpose Speaker Series from Dragon Stage. Featuring full-range loudspeakers, dual 15-inch systems and dedicated subwoofers, the HV Series is designed for FOH, live performances, rental companies, houses of worship and outdoor sound reinforcement.
Explore the EM High-Performance FOH Speaker Series from Dragon Stage. Featuring premium full-range loudspeakers and powerful single and dual 18-inch subwoofers, the EM Series is engineered for professional live sound, touring productions, rental companies and large-scale event sound reinforcement.
Discover the ES Heavy-Duty Professional Speaker Series from Dragon Stage. Featuring rugged full-range loudspeakers and high-performance subwoofers, the ES Series is designed for fixed installations, touring productions, rental companies, houses of worship and professional live sound reinforcement.
Explore the HG Conference Speaker Series from Dragon Stage. Designed for conference rooms, meeting spaces, classrooms, houses of worship and commercial installations, the HG Series delivers clear speech intelligibility, balanced music reproduction and reliable long-term performance.
The HM Premium Conference Speaker Series is designed for conference centers, hotels, churches, lecture halls and commercial installations. Featuring high-output full-range loudspeakers with excellent speech clarity and music performance, the HM Series delivers reliable professional audio for fixed installation applications.
Discover the HM Column Speaker System from Dragon Stage. Combining slim column loudspeakers with dedicated subwoofers, the HM Series delivers outstanding speech intelligibility, even sound coverage and portable professional audio for conferences, hotels, churches, exhibitions and live presentations.
Discover the LC Column Array Speaker System from Dragon Stage. Designed for conference centers, hotels, lecture halls, churches and architectural installations, the LC Series combines slim line-array columns with powerful subwoofers to deliver exceptional speech intelligibility, controlled sound coverage and elegant system design.
The HM Column Speaker Series offers slim passive column speakers with excellent speech intelligibility and wide sound coverage for conference rooms, churches, lecture halls, hotels and commercial audio installations.
HL2450 dual 4-inch passive line array speaker features 120° horizontal coverage, adjustable 0°–12° rigging angles and clear vocal reproduction for churches, conference halls, theaters, restaurants and small to medium-sized events.
Heavy-duty mobile Layher storage rack with industrial casters. Manufactured from 3mm steel tubing with black powder coating for transporting and organizing ringlock scaffolding components.
Heavy-duty mobile Layher storage rack with industrial casters. Manufactured from 3mm steel tubing with black powder coating for transporting and organizing ringlock scaffolding components.
Professional 21m × 20m concert roof stage system featuring an 11m aluminum roof structure, six ground support towers, two 2m speaker wings, and two 6m LED screen wings. Designed for festivals, concerts, touring productions, and large outdoor events.
Packing size:2000x480x480mm N.W:100kg Load capacity:250kg Lifting high:1.8~7m Top bar Length:0.5m Base length:1.8m Material thickness:2.5MM Material size: square tube120/100/80/60/40mm
curved roof truss system 20m wide, 10m deep and 6m high, with 2 wings, each wing is 2m wide motor hoisting system （6 pieces), each motor is 1Ton capacity with 1 controller
