Understanding Weather Protection Strategies for Large Outdoor Event Structures
Outdoor concerts are temporary events, but the engineering challenges they face are similar to permanent facilities.
One of the biggest challenges is weather.
A large stadium concert structure must continue operating under changing environmental conditions, especially in regions with:
Heavy rainfall.
High humidity.
Tropical storms.
Seasonal weather changes.

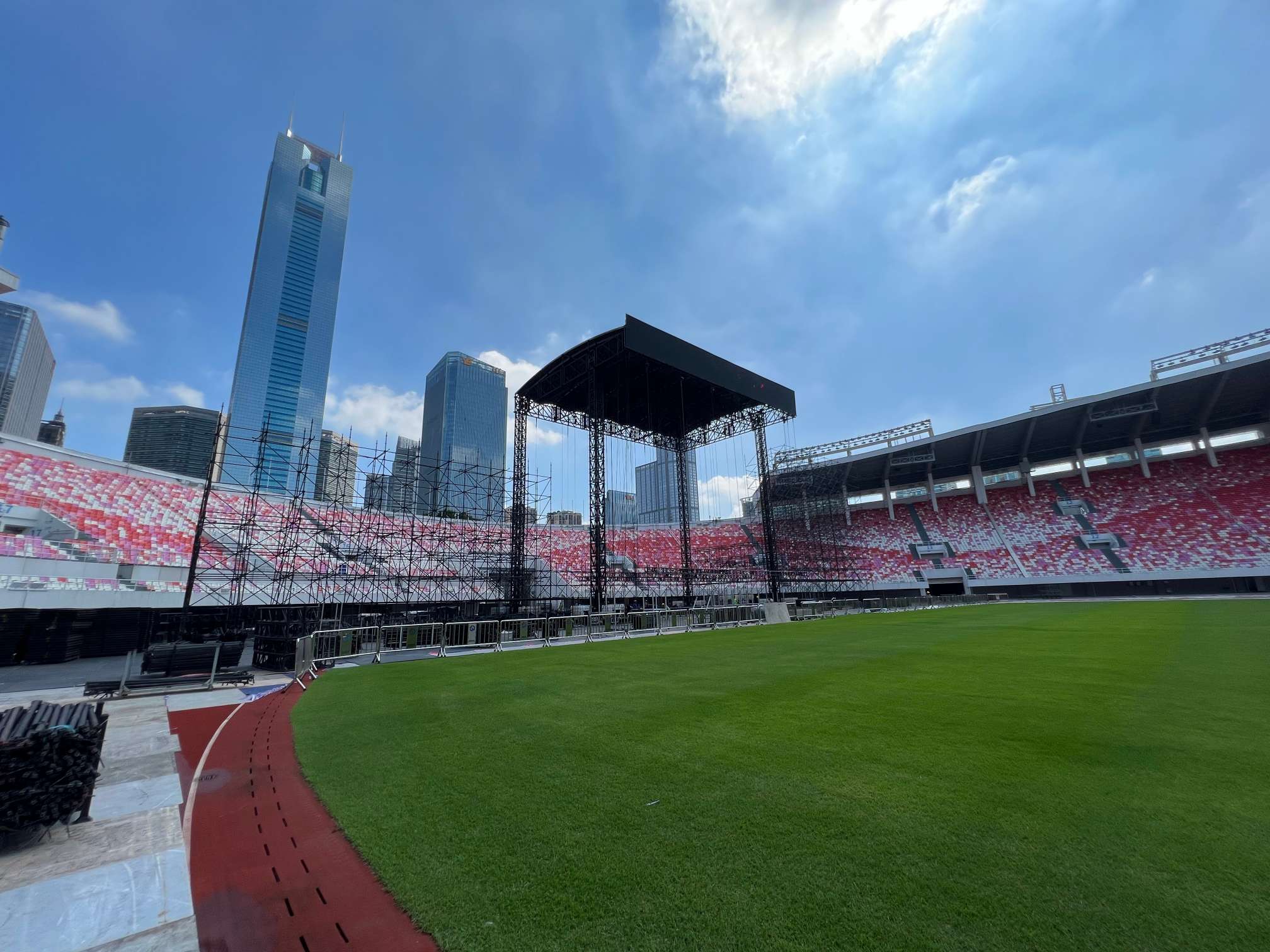

During the 2026 Guangzhou Pearl Beer Festival Music Festival project, the event was constructed and operated during the summer rainy season in Guangdong.
This period is characterised by:
Frequent heavy rain.
High humidity.
Possible typhoon influence.
Sudden weather changes.
Therefore, rain protection was not an additional feature.
It was integrated into the complete event engineering system.
The project included multiple weather protection strategies:
Curved aluminium roof structures with PVC membrane.
Raised technical equipment areas.
FOH equipment tents.
Backstage functional tents.
Protected power and control cabinets.
Stadium surface protection systems.
The key engineering principle is:
Weather protection for temporary events is not only about keeping people dry. It is about protecting structures, equipment, electrical systems and operational continuity.
Why Is Rain Protection Important for Stadium Concerts?
A large concert combines several systems that are sensitive to water.
These include:
Electrical equipment.
Audio systems.
Lighting fixtures.
LED screens.
Control systems.
Stage structures.
Temporary flooring.
Rain can create several risks:
Electrical Risk
Water can affect:
Power distribution cabinets.
Signal connections.
Control equipment.
Cable connections.
Equipment Reliability Risk
Moisture may influence:
LED operation.
Audio equipment.
Lighting systems.
Electronic control systems.
Structural Risk
Rain can also affect:
Roof membranes.
Temporary platforms.
Ground conditions.
Access routes.
Therefore:
A professional outdoor event requires a complete weather management strategy, not just a roof above the stage.

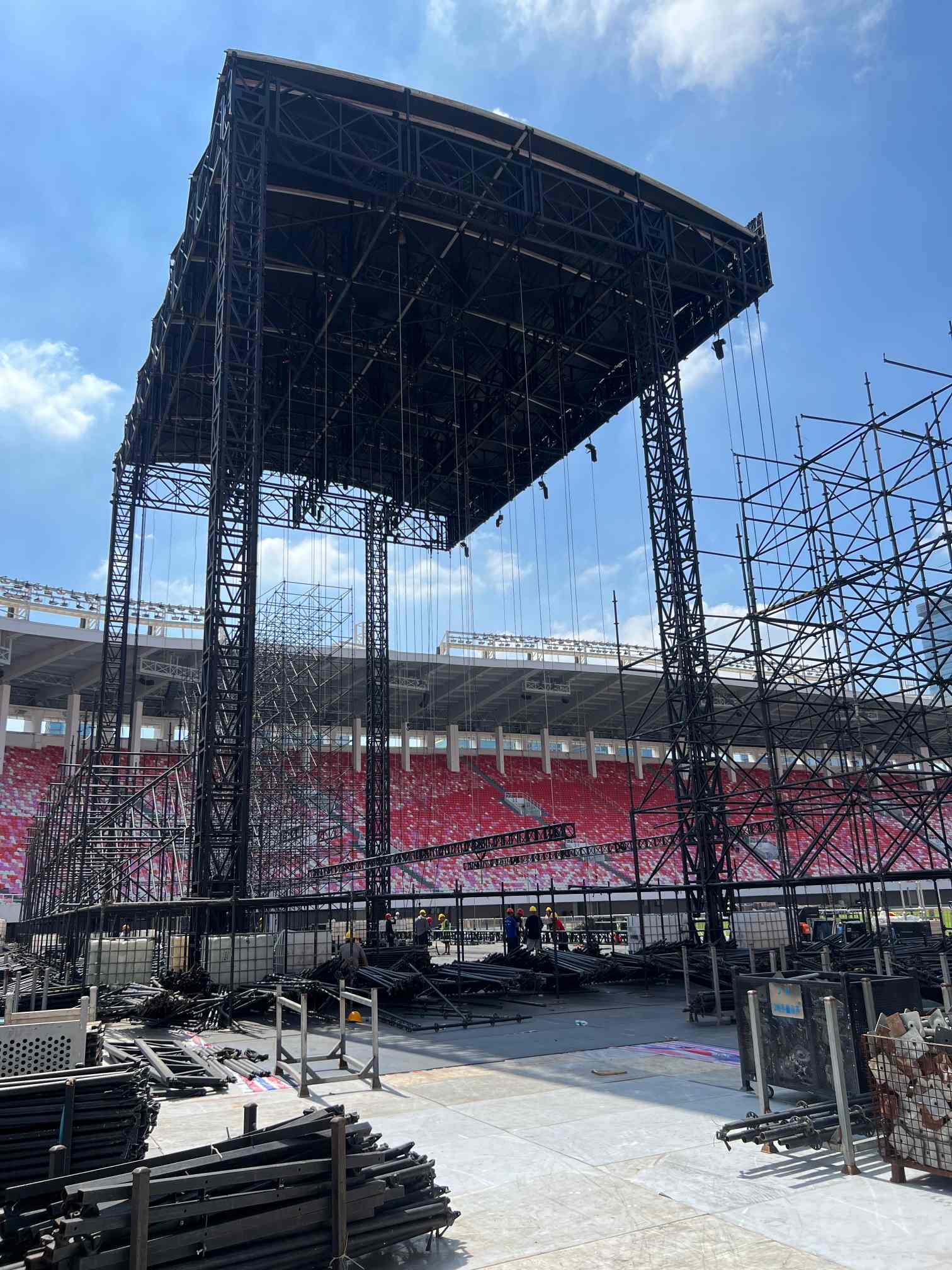

The Main Stage Roof: The First Layer of Weather Protection
The main stage roof is the most visible weather protection system.
During this project, the main stage used:
Steel hydraulic lifting structure.
Aluminium curved roof frame.
PVC membrane roof covering.
The roof was not only designed for visual appearance.
It performed several engineering functions:
Protecting performers.
Protecting equipment.
Managing rainwater.
Reducing exposure of production systems.
The relationship between the roof structure and event production requirements is discussed in:
Why Are Curved Trusses Used on Concert Stages?
Why Are Curved Roof Structures Used for Rain Management?
A flat roof may appear simpler.
However, outdoor event roofs need to solve several problems:
Water accumulation.
Drainage.
Fabric tension.
Structural weight.
The curved roof design provides natural drainage.
The principle is:
Rainfall
↓
Curved Roof Surface
↓
Controlled Water Flow
↓
Drainage Direction
The curved shape reduces the possibility of water pooling.
How Does PVC Membrane Roofing Help?
The aluminium roof frame supported a PVC membrane system.
The membrane works because it is installed under tension.
A properly tensioned membrane provides:
Smooth surface.
Better drainage.
Reduced water accumulation.
Cleaner appearance.
The connection between the membrane and aluminium frame is important.
The roofing profile allows the reinforced edge of the fabric to be inserted into the aluminium extrusion system.
When tension is applied:
The fabric becomes tight.
The curved roof shape is maintained.
Water can flow naturally.
This is similar to professional temporary structure systems used in:
Event tents.
Exhibition structures.
Large temporary venues.
Why Is the Roof Higher Than the LED Screen?
One interesting feature observed in the project was that the roof was higher than the LED screen.
This design has several advantages.
1. Protecting LED Equipment
If the LED screen reaches the same height as the roof edge, rainwater may directly affect:
LED cabinets.
Connections.
Signal systems.
A higher roof creates additional protection.
2. Improving Water Drainage
The roof needs enough slope and space to:
Direct rainfall away.
Prevent water flowing onto equipment.
Maintain membrane tension.
3. Allowing Production Space
The additional height also provides space for:
Lighting systems.
Rigging points.
Suspended equipment.
The detailed explanation is discussed in:
Why Is the Roof Higher Than the LED Screen?
FOH Weather Protection
The FOH area is another important weather-sensitive zone.
Unlike the main stage, FOH is located inside the audience area.
It contains:
Audio control.
Lighting control.
Video control.
Communication equipment.

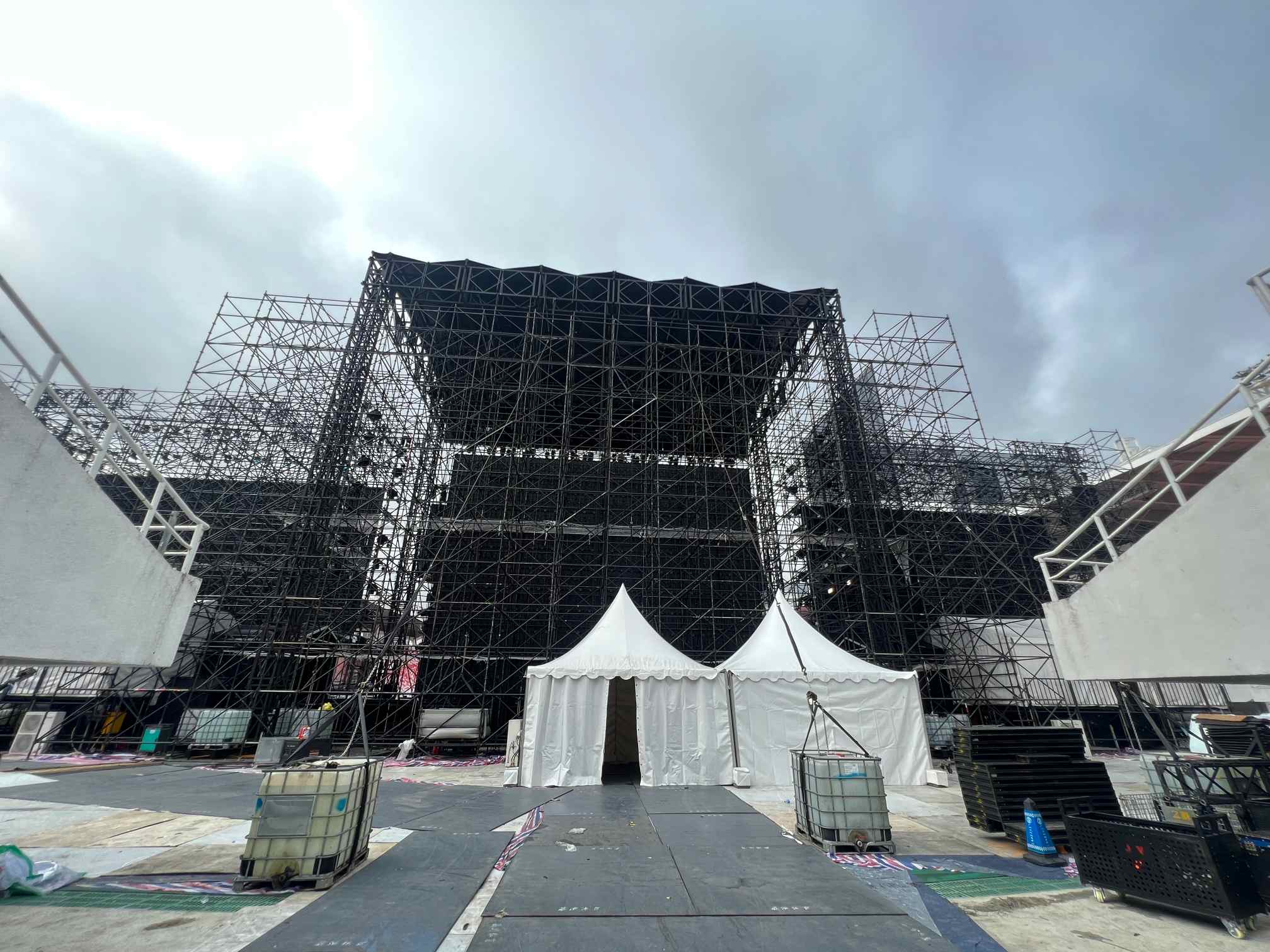

During this project, the FOH consisted of:
A large Ringlock structure.
A front 5×5m tent structure.
Multiple technical equipment areas underneath.
One notable feature was that many smaller tents were installed below the FOH structure.
Their purpose was to protect:
Power cabinets.
Control equipment.
Technical devices.
This arrangement was especially important because Guangzhou's summer weather often includes sudden rainfall.

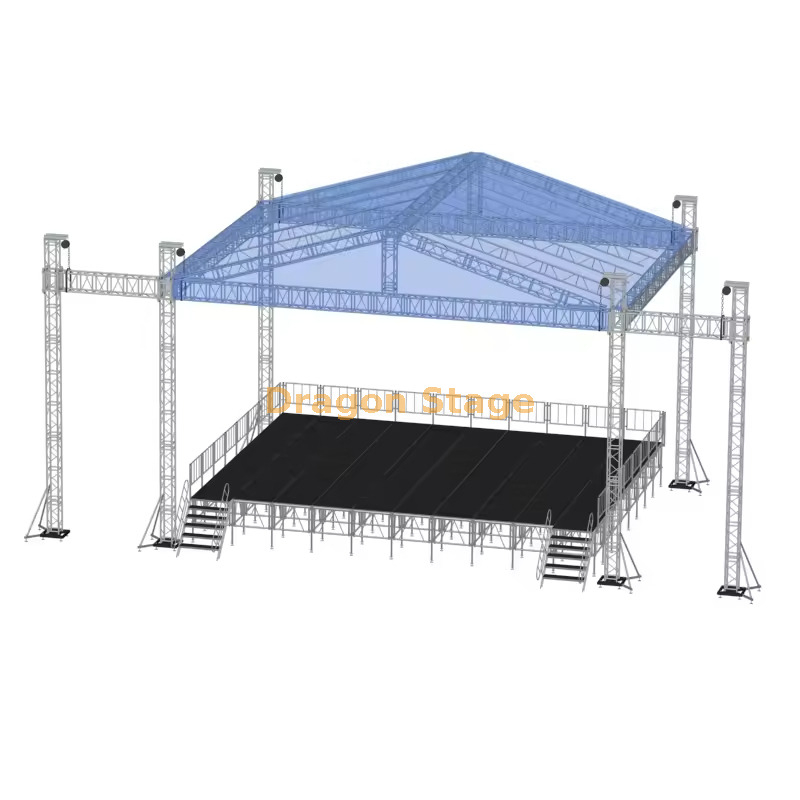

The DragonStage 11x6x7m Covered Concert Roof Truss System combines an 11m-wide × 6m-deep × 7m-high main stage roof with two 2m side PA speaker wings.
The illustrated configuration features a pitched aluminum roof framework with a blue roof canopy, four main support towers, two independent speaker towers, and a matching modular stage platform with guardrails and dual stair access.
Designed for concerts, festivals, live performances, community events, and temporary outdoor productions requiring a coordinated stage roof and separate speaker-support positions.

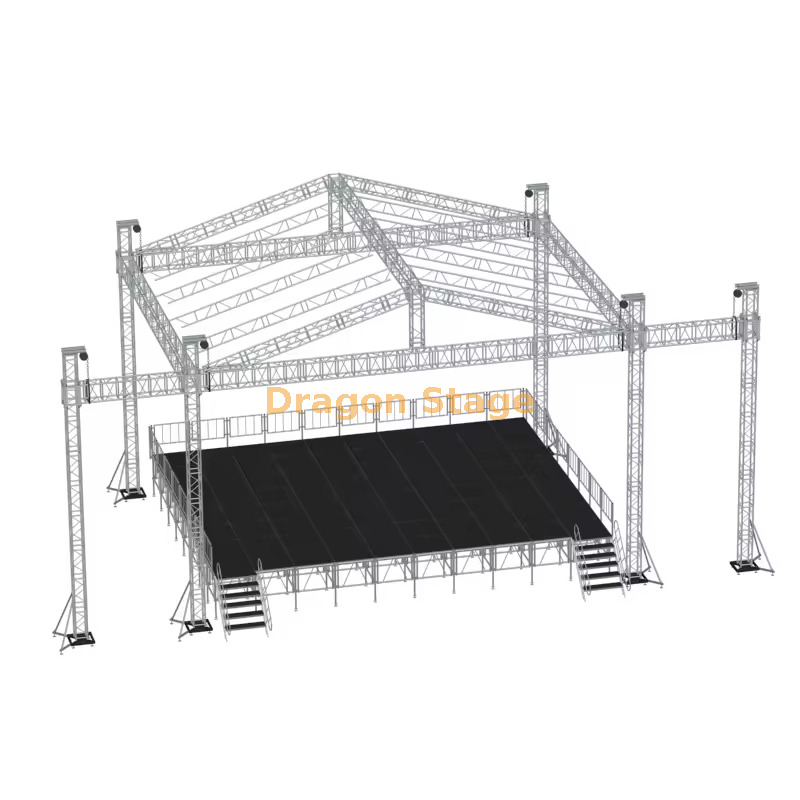

The DragonStage 10x5x7m Aluminum Pitched Roof Truss System is a modular concert-stage structure featuring a 10m-wide × 5m-deep × 7m-high main roof frame with 2m side speaker wings on both sides.
