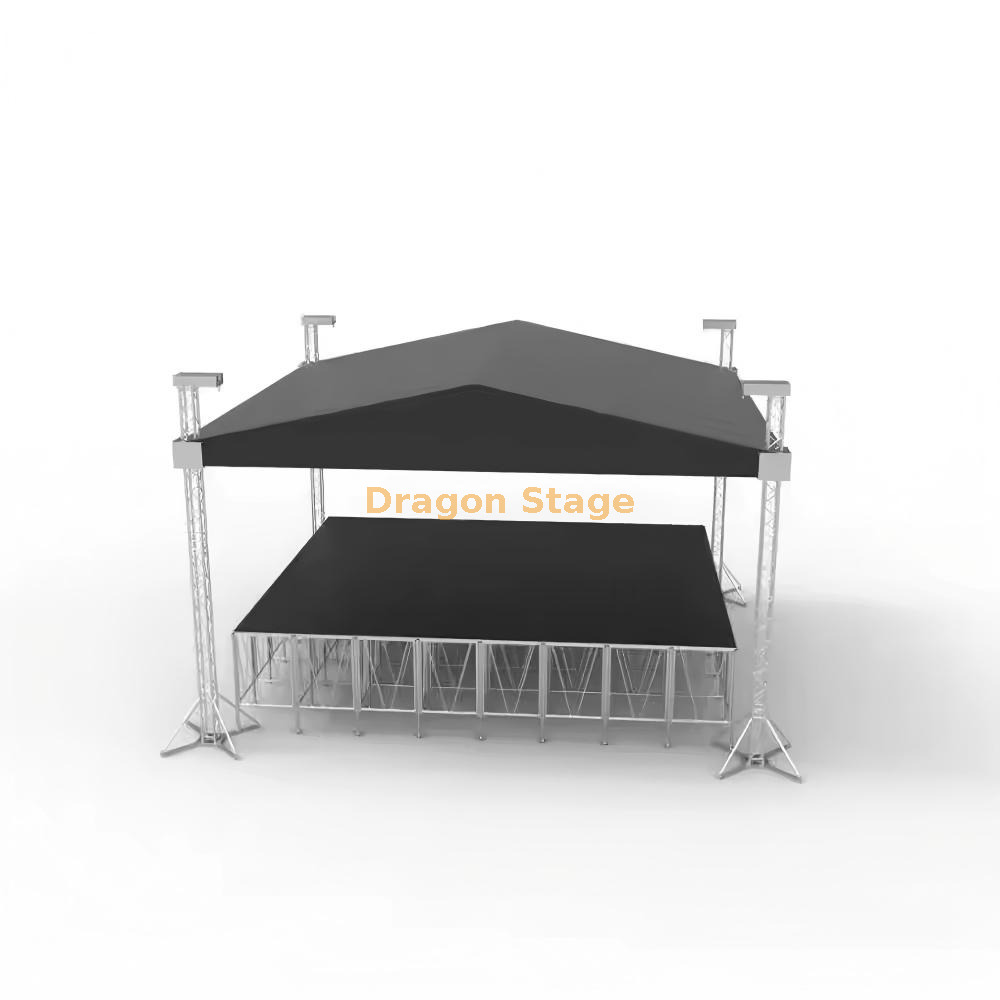

Aluminum Global Outdoor Roof Truss System Design 8x6x6m
weight: 1400KG
volume: 10CBM
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 8.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4 pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4 pcs |
| 1.00 m | 50×3.0 | CS289×289 | pcs |
| 6.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4 pcs |
| 2.00 m | 50×3.0 | CS289×289 | pcs |
| 1.00 m | 50×3.0 | CS289×289 | pcs |
| 5.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4 pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4 pcs |
| 1.00 m | 50×3.0 | CS289×289 | pcs |
| Frame Tower | Spigot Sleeve Block S | 4 pcs |
| Steel Base S | 4 pcs |
| Top Section S | 4 pcs |
| Manual hoist,BA05 2Tons | 4 pcs |
| Spigot Hinge Section,Height 1m | 4 pcs |
| Fibre sling,BA04,2 tons 3m | 4 pcs |
| Long outrigger | 16 pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | .80 m | 50×3.0 | CS289×289 | 2 pcs |
| 6.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2 pcs |
| 2.00 m | 50×3.0 | CS289×289 | pcs |
| 1.00 m | 50×3.0 | CS289×289 | pcs |
| 4.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4 pcs |
| 2.00 m | 50×3.0 | CS289×289 | pcs |
| 1.20 m | 50×3.0 | CS289×289 | 4 pcs |
| 4.20 m Ladder truss | 4 sets | 3.00 m | 50×3.0 | CL30,289*50 | 4 pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | pcs |
| 1.20 m | 50×3.0 | CL30,289*50 | 4 pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2 pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | pcs |
| Connect plate with clamp | 2 pcs |
| Single clamp | 8 pcs |
| Double clamp | 8 pcs |
| roof canopy material:pvc, Blue Colour or customized. | 103.36 | 1 pcs |
Aluminum Global Outdoor Roof Truss System Design: 8x6x6m Professional Solution
1. Introduction
In the fast-paced event rental industry, mid-sized outdoor stages require a structural solution that is both visually striking and mechanically sound. The 8x6x6m Aluminum Global Outdoor Roof Truss System by DragonStage is engineered to meet these precise demands, offering 48 square meters of covered performance space. With a commanding 6-meter height, this system provides the vertical clearance necessary for professional lighting plots and aerial effects. For event organizers and technical directors, the challenge lies in deploying a rig that is sturdy enough to withstand the elements while remaining light enough for rapid transport and setup. This "Global" design addresses these needs through universal compatibility and precision engineering.
2. Challenges & Solutions
One of the primary frustrations for event crews is "equipment silos"—trussing that only works with proprietary parts. DragonStage solves this by utilizing a "Global" compatible design, ensuring that standard clamps, couplers, and accessories integrate seamlessly. Another common outdoor challenge is water management; a flat roof can accumulate hundreds of pounds of rainwater, leading to structural stress. Our 8x6x6m system features a pitched roof geometry and high-tension PVC that facilitates immediate runoff. Furthermore, for events held on non-level surfaces like parks or sloped lots, our tower bases are equipped with heavy-duty adjustable leveling jacks, ensuring a perfectly plumb and safe structure regardless of the terrain.
3. Key Features & Benefits
This system is manufactured from high-strength 6082-T6 aluminum alloy. This specific grade is favored for outdoor touring due to its high yield strength and natural resistance to atmospheric corrosion, ensuring the truss remains a safe, long-term asset (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html).
The 8x6x6m rig utilizes a modular ground-support system. This allows the horizontal roof grid to be assembled at waist height, where lighting and audio can be safely rigged before the entire structure is hoisted to its 6-meter peak. According to industry safety standards for temporary structures, this ground-support method significantly reduces the risks associated with overhead work (Source:https://www.prolight-sound.com).
To create a complete performance environment, this truss system is designed to pair perfectly with our modular aluminum stage platforms. These decks feature 18mm anti-slip surfaces and high load-bearing capacities, providing a stable foundation that matches the professional quality of the overhead rig (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html). The 6-meter height is specifically optimized to provide clear sightlines for audiences while allowing "Pro Light" fixtures to reach their full beam potential.
4. FAQ Section
Q: Is the 8x6m footprint large enough for a standard band?A: Yes, the 48-square-meter surface is ideal for four-to-five piece bands, DJ setups, or corporate presentations with podiums and furniture.
Q: Can this be raised with manual winches?A: Yes. The system is compatible with both manual hand-winches and electric chain hoists, depending on your crew size and budget.
Q: Is the PVC canopy waterproof?A: Absolutely. We use 850g/m² heavy-duty PVC that is waterproof, UV-resistant, and fire-retardant (B1/M2).
Q: What type of connections does it use?A: This model uses high-precision conical couplers (spigot connections) for fast, vibration-resistant assembly, making it ideal for frequent travel.
5. Strong Call to Action (CTA)
Ensure your next outdoor production is built on a foundation of professional engineering and safety. Contact DragonStage’s engineering team for a custom quote on the 8x6x6m Global Outdoor Roof Truss System. Download our technical specifications today and start planning your most successful event season yet.
