What is the 7x7x7m Aluminum Event Stage Truss System with 2m Line Array Speaker Wings?
It is a versatile aluminum event truss system designed for medium-scale performances. The 7m × 7m × 7m main frame combined with 2m speaker wings provides balanced space for lighting rigs and precise line array speaker placement, delivering professional sound and visual performance with easy portability and quick setup.
Why Choose This 7x7x7m Event Stage Truss?
✅ Compact 7m × 7m × 7m main structure ✅ Integrated 2m line array speaker wings ✅ High-strength aluminum alloy construction ✅ Fast modular assembly and disassembly✅ Perfect for concerts, events, and touring productions
packing weight:1380kg
packing volume:14.5cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 7.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 2pcs |
| 7.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 2pcs |
| 6.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| beam cube | 6 faces | CS389×389 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 2.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 0pcs |
| 2.00 m | 50×3.0 | CS389×389 | 2pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 6.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| Wings Tower | Spigot Sleeve Block S | 2pcs |
| Steel Base S | 2pcs |
| Top Section S | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |

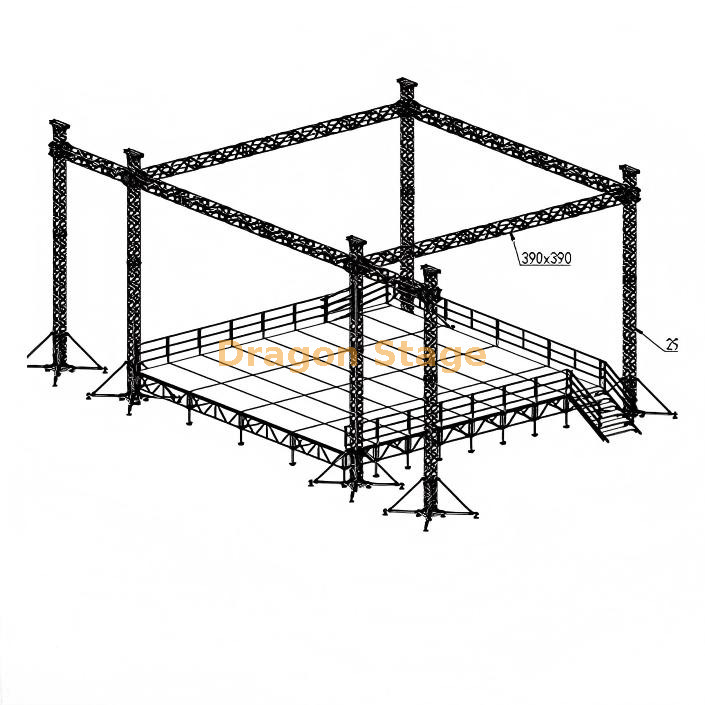

Professional 7m Cube Aluminum Stage Truss with Integrated Speaker Wings
Engineered for versatility and structural integrity, this Assembly
Aluminum Alloy Mobile Stage is the ultimate "all-in-one" solution for event planners and production companies. The symmetrical 7m design provides a perfect cube footprint, while the specialized side extensions (wings) allow for professional hanging of
speaker systems without obstructing the stage view.
Key Features:
Integrated Audio Wings: Two 2m wide cantilevered wings specifically designed for hanging line array speakers and side-fill monitors.
Standard 390mm Box Truss: Constructed using industry-standard
square truss for high load-bearing capacity and compatibility.
Symmetrical Design: The 7m height, width, and depth provide a clean, modern aesthetic suitable for both indoor and outdoor venues.
Enhanced Stability: Features heavy-duty outriggers and base plates to ensure safety during high-wind outdoor events.
Modular Stage Deck: Includes a height-adjustable mobile stage platform with integrated safety railings and access stairs.
Specifications:
Main Structure: 7x7x7m (LxDxH)
Speaker Wings: 2m Wide (each side)
Truss Profile: 390x390mm Aluminum Alloy
Applications: Mid-sized concerts, DJ sets, corporate presentations, and festival side-stages.
1. What are the dimensions and speaker wing size of this truss system?
The main stage measures 7m × 7m with 7m height, featuring 2m line array speaker wings on both sides for optimal audio placement and coverage.
2. Is this aluminum event stage truss suitable for outdoor events?
Yes. Its high-strength aluminum alloy construction provides excellent stability and portability, making it suitable for both indoor and outdoor medium-sized events. Learn more in How to Choose Aluminum Truss for Outdoor Events (Safety & Load Guide).
3. How easy is it to assemble this 7x7x7m event stage truss?
The modular spigot design allows professional crews to complete setup quickly and safely. For practical assembly guidance, check How do you assemble and disassemble a lighting truss?.
