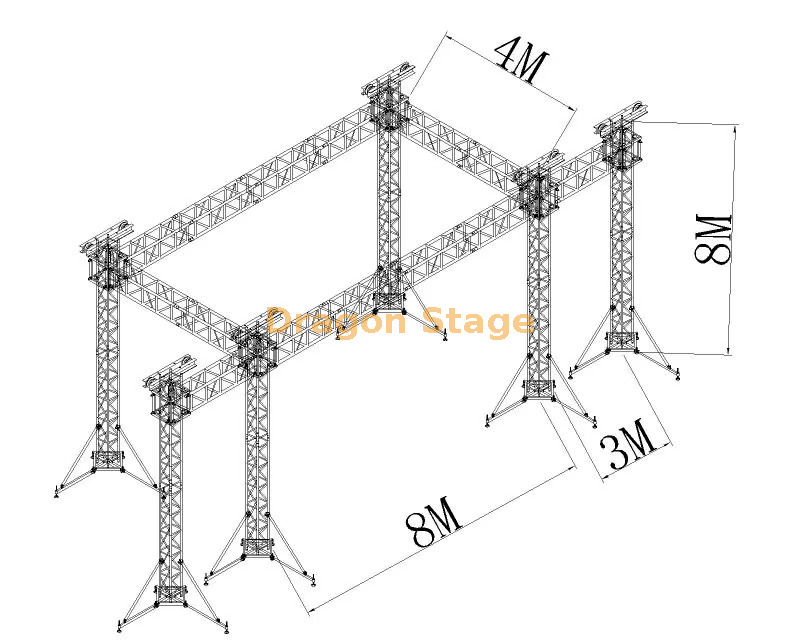

What is the 8x4x8m Professional Aluminum Alloy Mobile Stage Lighting Truss with 3m Audio Speaker Wings?
It is a complete mobile stage truss system designed for professional audio-visual productions. The main truss frame provides ample space for lighting and effects, while the integrated 3m speaker wings ensure optimal sound distribution and a clean stage appearance. Made from durable aluminum alloy, this system combines strength, portability, and quick assembly for demanding event environments.
Why Choose This Mobile Stage Lighting Truss?
✅ 8m × 4m × 8m main structure with 3m speaker wings ✅ High-strength aluminum alloy construction ✅ Reinforced outriggers for superior outdoor stability ✅ Modular design for fast setup and teardown ✅ Ideal for lighting, line array speakers & LED screens
Discover similar professional setups in our Aluminum Goal Post Gentry Truss for LED Screen.
packing weight:1350kg
packing volume:10cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 8.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 2pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 4.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| 7.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 4pcs |
| beam cube | 6 faces | CS289×289 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 3.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 7.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| Wings Tower | Spigot Sleeve Block S | 2pcs |
| Steel Base S | 2pcs |
| Top Section S | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
Professional 8m x 4m x 8m Heavy-Duty Aluminum Stage Truss System
Take your production to the next level with our versatile and robust Aluminum Alloy Mobile Stage Truss. Engineered for stability and visual impact, this system provides a massive height clearance, making it the ideal choice for large-scale outdoor performances, corporate events, and music festivals.
Innovative Wing Design
This specific configuration includes two 3m wide side wings, purpose-built for hanging line-array speaker systems or additional branding banners. This allows for a clean, professional stage look while ensuring optimal sound distribution for your audience.
Key Features:
Superior Durability: Constructed from high-grade aluminum alloy for maximum load-bearing capacity and corrosion resistance.
Impressive Dimensions: A main frame of
(Length) x (Depth) x (Height) provides a grand presence for any venue.
Enhanced Stability: Equipped with reinforced outriggers and base plates to ensure safety in outdoor environments.
Modular Assembly: Designed for efficient setup and teardown, saving you time and labor costs on-site.
Multi-Functional: Perfect for mounting heavy lighting rigs, LED screens, and professional audio equipment.
Technical Specifications:
| Feature | Dimension |
|---|
| Main Structure Length | 8m |
| Main Structure Depth | 4m |
| Overall Height | 8m |
| Speaker Wing Width | 3m(per side) |
| Material | High-Strength Aluminum Alloy |
1. What are the dimensions and speaker wing size of this truss system?
The main structure measures 8m wide × 4m deep × 8m high, with 3m wide audio speaker wings on both sides for optimal line array placement and sound distribution.
2. Is this mobile stage lighting truss suitable for outdoor events?
Yes. Its high-strength aluminum alloy construction and reinforced outriggers provide excellent stability and corrosion resistance, making it ideal for outdoor concerts and festivals. For more on outdoor selection, see How to Choose Aluminum Truss for Outdoor Events (Safety & Load Guide).
3. How long does it take to assemble this truss system?
Thanks to the modular spigot design and clear component layout, professional crews can typically complete full setup in a few hours. Practical assembly tips are available in How to assemble aluminum event stage roof truss.
