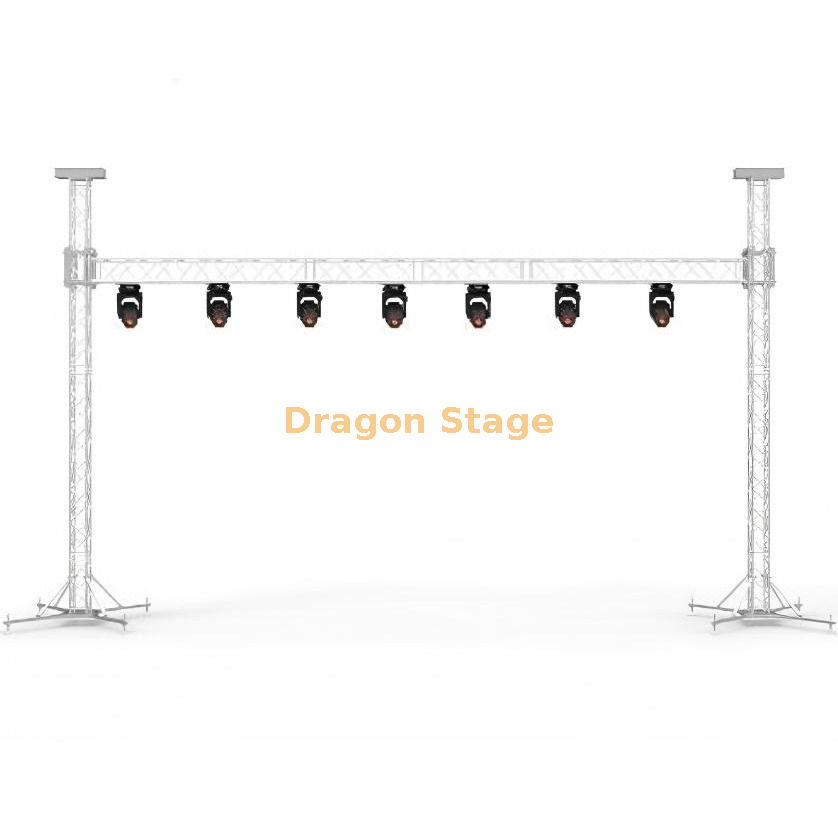

What is the 8x7m Aluminum Alloy Goal Post Truss System Heavy Duty Mobile LED Screen Lighting Rig?It is a professional heavy-duty aluminum goal post truss designed to securely support large LED video walls and full lighting systems. The 8m width and 7m height provide generous clearance and strong rigging points, making it a versatile mobile solution for both indoor and outdoor productions.
Answer CardWhy Choose This Heavy Duty Goal Post Truss?
✅ 8m wide × 7m high goal post structure ✅ Heavy-duty aluminum alloy for superior strength ✅ Optimized for large LED screens and lighting rigs ✅ Fast modular assembly and easy transport ✅ Reliable for concerts, festivals & exhibitions
packing weight:420kg
packing volume:3.5cbm
| Item | Specification(squre truss) | Qty |
| length(M) | main tube(MM) | size(MM) |
| Beam | 3 | 50×3.0 | CS389×389 | 2 pcs |
| 2 | 50×3.0 | CS389×389 | pcs |
| 1 | 50×3.0 | CS389×389 | 1 pcs |
| 0.5 | 50×3.0 | CS389×389 | pcs |
| Pillar | 3 | 50×3.0 | CS289×289 | 4 pcs |
| 2 | 50×3.0 | CS289×289 | pcs |
| 1 | 50×3.0 | CS289×289 | 2 pcs |
| 0.5 | 50×3.0 | CS289×289 | pcs |
| Tower | Spigot Sleeve Block S | 2 pcs |
| Steel Base S | 2 pcs |
| Top Section S | 2 pcs |
| Manual hoist,BA05 2Tons | 2 pcs |
| Spigot Hinge Section,Height 1m | 2 pcs |
| Fibre sling,BA04,2 tons 3m | 2 pcs |
| Long outrigger | 8 pcs |
| Truss Accessory | Conical coupler & Safrty clip & pin | whole
set |
Professional 8m x 7m Mobile Aluminum Goal Post Truss System
Take your event production to the next level with our 8m x 7m Aluminum Alloy Goal Post Assembly. This professional-grade structure is specifically designed for large-scale applications, providing an expansive 8-meter span and 7-meter height to accommodate massive high-definition LED video walls and complex overhead lighting arrays.
Key Features:
Expansive 8m x 7m Dimensions: Featuring an 8-meter width and 7-meter vertical clearance, this system is optimized for high-impact visual displays and large-format LED screens.
Aviation-Grade Aluminum Alloy: Manufactured from high-strength, corrosion-resistant aluminum alloy (typically 6061-T6 or 6082-T6), ensuring a lightweight yet incredibly rigid frame that stands up to frequent transport.
Mobile "Bolt or Spigot" Design: Engineered for rapid deployment, the modular design allows for fast assembly and teardown, making it the perfect mobile solution for touring bands, festivals, and corporate exhibitions.
Extreme Load Stability: Built to safely support heavy-duty equipment, including line array speakers, multiple moving head fixtures, and heavy LED panels, without compromising structural integrity.
Versatile Event Utility: Whether used as a grand entrance, a main stage lighting rig, or a dedicated LED screen support, this "goal post" configuration provides the professional aesthetic and safety required for modern events.
Specifications:
Material: High-Grade Aluminum Alloy (6061-T6/6082-T6)
Dimensions: 8 Meters (W) x 7 Meters (H)
Configuration: Square Box Truss Goal Post
Primary Use: LED Screen Rigging, Stage Lighting, Event Backdrops
FAQs
1. What are the exact dimensions of this goal post truss system?The system provides an 8m wide × 7m high goal post structure, optimized for supporting large LED screens and complete lighting rigs.
2. Is this aluminum goal post truss suitable for outdoor events?Yes. Its heavy-duty aluminum alloy construction offers excellent stability and corrosion resistance, making it ideal for both indoor and outdoor live events. Learn more in How to Choose Aluminum Truss for Outdoor Events (Safety & Load Guide).
3. How do I install LED screens and lighting on this goal post truss?The modular design allows flexible and secure mounting. For practical methods, see What Are 3 Ways To Install Led Screen and How To Install And Fix LED Screens on Layher Truss.
