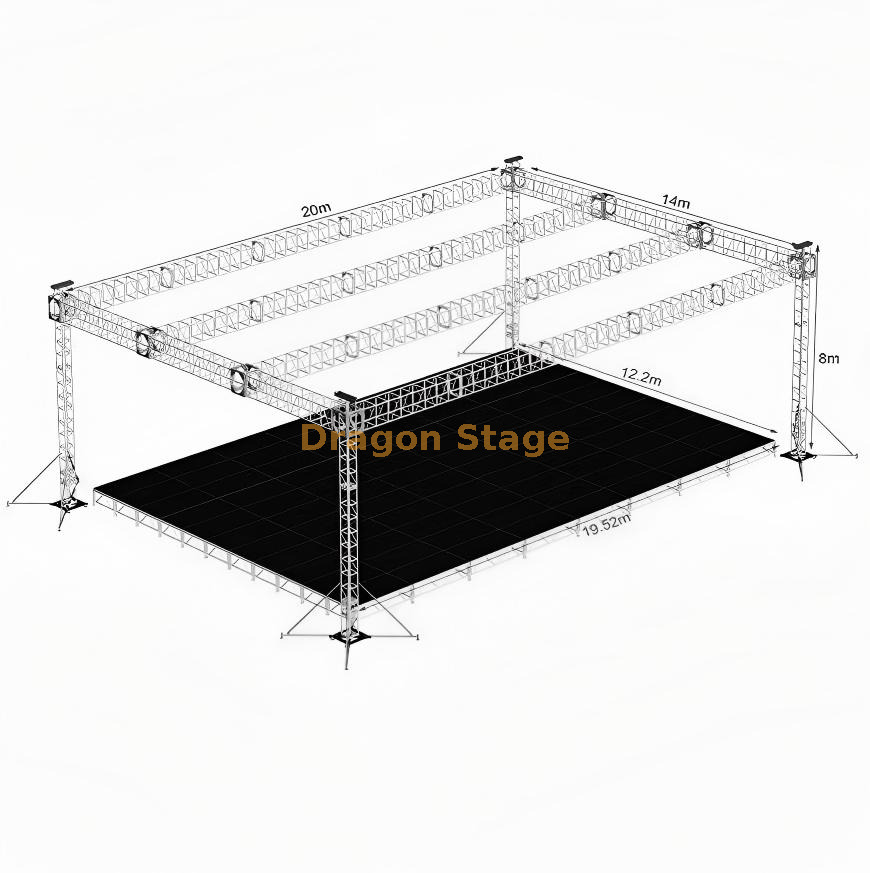

What is the 20x14x8m Aluminum Outdoor Concert Stage Truss System with Flat Roof Assembly?
It is a professional-grade aluminum flat roof truss system designed for outdoor concerts and major events. The 20m × 14m main structure with 8m height creates a large, versatile performance space while the flat roof design ensures optimal load distribution and easy integration of lighting and audio equipment.
Answer CardWhy Choose This Outdoor Concert Stage Truss?
✅ Generous 20m × 14m coverage with 8m height ✅ Heavy-duty aluminum alloy construction ✅ Flat roof assembly for clean sightlines and easy rigging ✅ Integrated support for lighting and line array speakers ✅ Fast modular setup ideal for touring and festivals
packing weight:2100kg
packing volume:40cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 20.00 m Beam(front) | 4 sets | 3.00 m | 50×3.0 | CS500×600 | 24pcs |
| 2.00 m | 50×3.0 | CS500×600 | 4pcs |
| 1.00 m | 50×3.0 | CS500×600 | 0pcs |
| 14.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS500×600 | 8pcs |
| 2.00 m | 50×3.0 | CS500×600 | 2pcs |
| 1.00 m | 50×3.0 | CS500×600 | 0pcs |
| 7.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 4pcs |
| beam cube | 6 faces | CS500×600 | 4pcs |
| Frame Tower | Spigot Sleeve Block M | 4pcs |
| Steel Base M | 4pcs |
| Top Section M | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
Professional Large-Scale Aluminum Stage Truss System - 20m x 14m x 8m
Take your production to the next level with our premium Flat Roof Assembly Truss. Engineered from high-grade aluminum alloy, this
mobile stage system provides a massive 280sqm coverage area, making it the ideal choice for major music festivals, outdoor tours, and stadium events.
Key Features:
Massive Dimensions: A sprawling 20m width and 14m depth provide ample space for large performers and complex stage sets.
High Clearance: The 8m vertical height allows for professional lighting arrays and line-array speaker rigging.
Heavy-Duty Load Capacity: Built with reinforced aluminum alloy for maximum safety and support of heavy lighting and audio equipment.
Weather-Resistant Design: The flat roof configuration is optimized for outdoor stability and efficient drainage.
Modular Assembly: Designed for rapid deployment and strike, saving you time and labor costs on-site.
Specifications:
1. What are the exact dimensions of this outdoor concert stage truss?The main structure measures 20m wide × 14m deep with an 8m height, providing generous space for performances and equipment rigging.
2. Is this aluminum flat roof truss suitable for outdoor concerts?Yes. Its heavy-duty aluminum alloy construction and stable flat roof design make it highly suitable for outdoor events, offering excellent weather resistance and load capacity. Learn more in How to Choose Aluminum Truss for Outdoor Events (Safety & Load Guide).
3. How long does it take to assemble this concert roof truss system?Thanks to the modular design, professional crews can complete assembly efficiently. For practical steps, check How To Install A Heavy-Duty Concert Roof Stage.
