Understanding the Engineering Design Behind Walkway Stages and B Stages in Large Stadium Concerts
When audiences watch a large stadium concert, one of the most memorable moments is often when performers leave the main stage and walk toward the audience.
This extended structure is commonly called a walkway stage, catwalk stage, or runway stage.
However, a concert walkway is not simply a long platform added for visual effects.
Behind the performance experience is a carefully planned temporary structure that must support performers, cameras, technical crews and equipment while maintaining safe circulation between the main stage and the audience area.
During the construction of the 2026 Guangzhou Pearl Beer Festival Music Festival, we observed how the walkway stage was integrated with the main stage, independent lighting platforms and the circular end stage.
The result was not an isolated extension, but a complete performance system designed to improve audience interaction while supporting the operational requirements of a modern stadium production.
The overall position of the walkway within the venue can be understood through the complete Understanding the Layout of a Large Stadium Concert, where the relationship between the main stage, FOH, audience area and other temporary structures is explained.
Engineering Observation
The walkway stage observed during this project included several distinctive features:
A central walkway extending approximately 20 metres from the main stage.
A circular stage approximately 10 metres in diameter at the end of the walkway.
Staircases installed on both sides of the walkway.
Two independent lighting platforms positioned parallel to the walkway.
The lighting platforms were approximately 500 mm lower than the walkway surface.
The entire structure was surrounded by black stage skirts.
The walkway was connected directly to the main stage system.
These features show that the walkway was designed not only for performers, but also for camera operation, technical access, maintenance and audience experience.
Why Are Walkway Stages Used in Large Concerts?
A stadium concert creates a unique challenge:
The audience area is extremely large.
Even with a powerful main stage, performers may appear distant to spectators located farther away from the centre of the performance area.
A walkway stage solves this problem by extending the performance zone into the audience space.
Instead of limiting the show to the main stage, performers can move closer to spectators while maintaining the same lighting, sound and video production environment.
This approach has become a common feature in large touring productions and is part of the wider planning principles behind Concert & Event Stage Solutions.
The purpose is not simply to make the stage longer.
The purpose is to create a better relationship between performers and audiences.
The Walkway and Circular B Stage Form One Extended Performance Area
At the end of the walkway, a circular stage approximately 10 metres in diameter created a secondary performance area.
Rather than functioning as an independent stage, the circular platform and walkway formed one continuous structure.
This configuration provided several advantages.
First, performers could move deep into the audience area while remaining connected to the main production system.
Second, the circular shape allowed performers to face different directions, improving interaction with spectators around the platform.
Third, the circular stage created a dedicated area for close audience engagement, especially for VIP spectators located near the front of the field.
From an engineering perspective, the walkway and circular stage should therefore be considered as one integrated stage platform system rather than separate structures.
Similar design principles can also be found in different types of Stage Platform Systems, where modular structures are configured according to performance requirements.

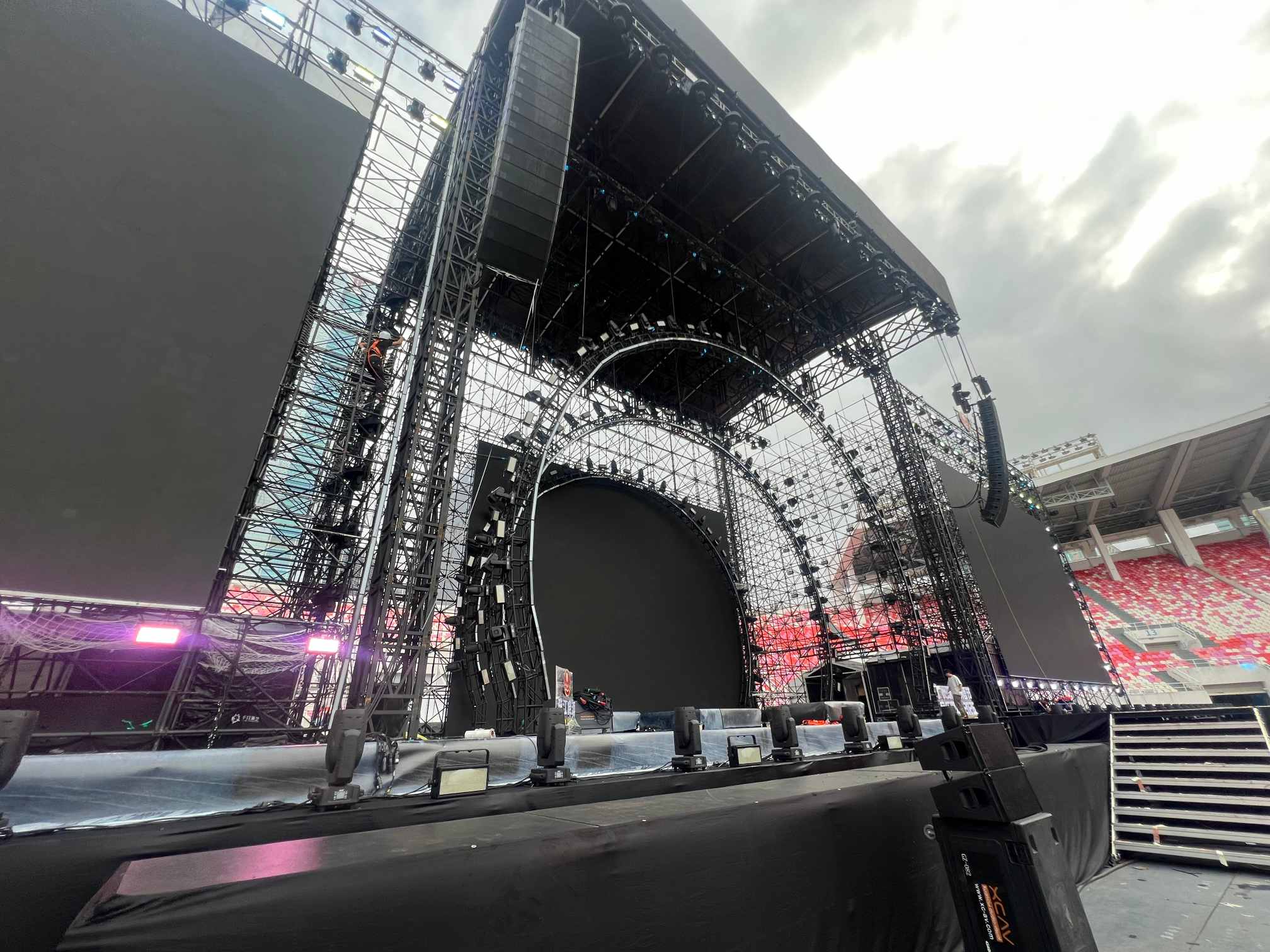

How Was the Walkway Connected to the Main Stage?
The walkway was not installed as a temporary object placed independently in front of the stage.
Instead, it formed part of the overall stage layout.

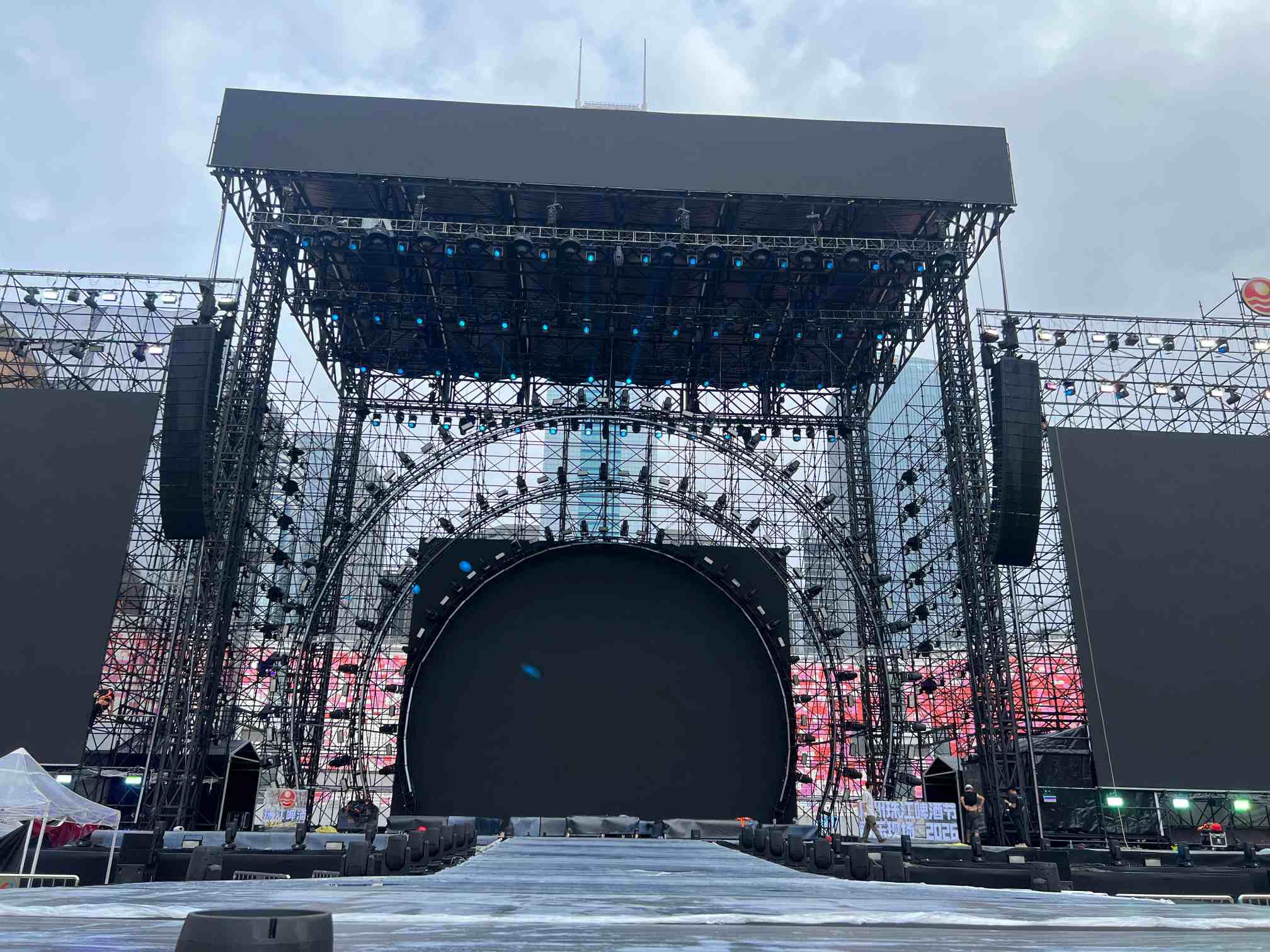

The central walkway was aligned with the main stage centreline and connected directly to the primary performance area.
This alignment provided:
A clear performer movement route.
Balanced visual composition.
Consistent camera angles.
Direct connection between the main stage and B stage.
The structural connection allowed performers and supporting staff to move between different performance zones without interrupting the main show flow.
The construction logic was consistent with other modular stage systems where different components are combined into one coordinated structure.

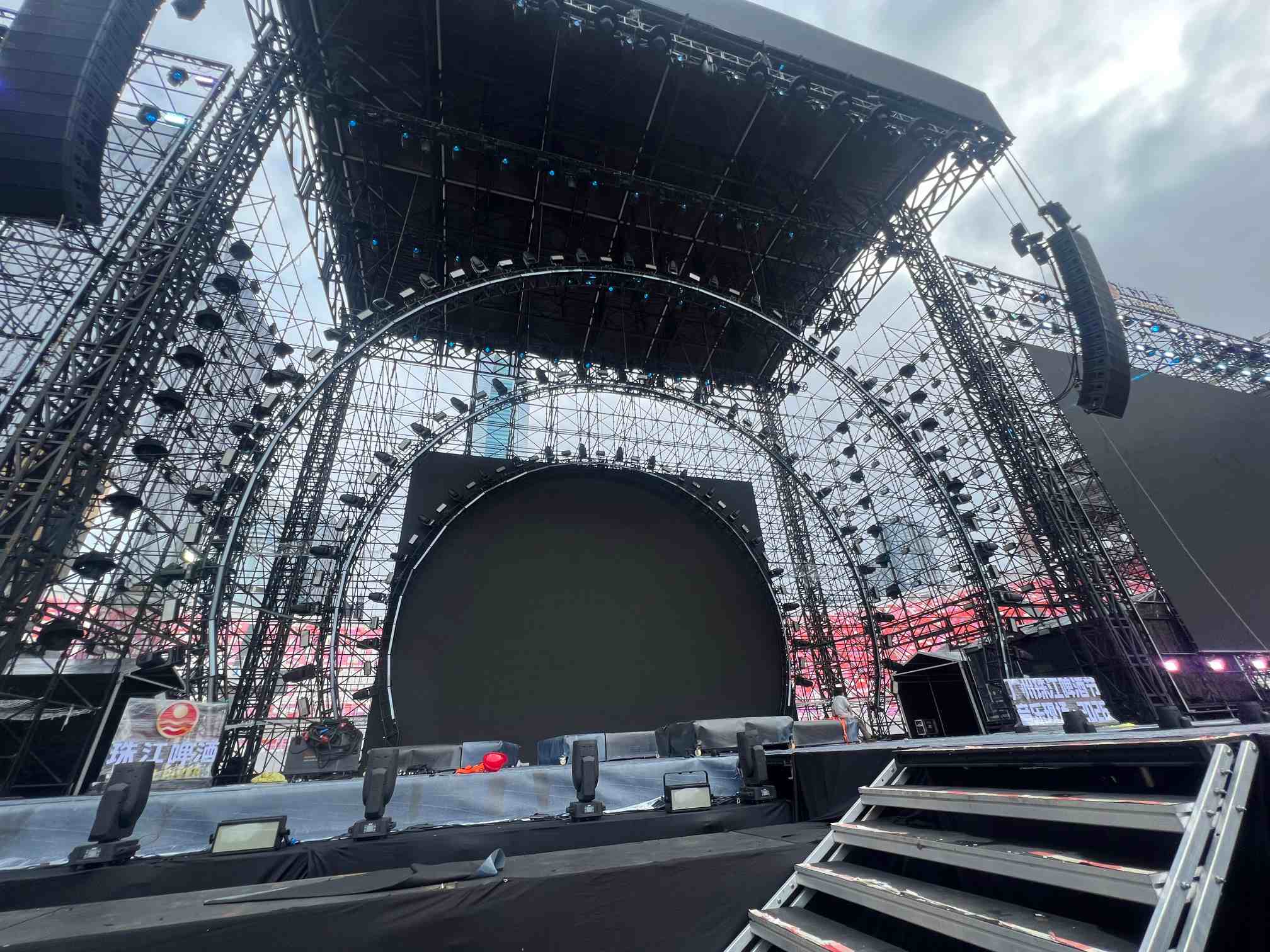

Why Were Staircases Installed on Both Sides of the Walkway?
One interesting detail observed during this project was the installation of staircases on both sides of the walkway.
At first glance, these stairs may appear to be designed mainly for performers.
However, based on the overall layout and construction requirements, their primary purpose appeared to be operational access.
Possible functions included:
Camera operator access.
Lighting technician access.
Construction and maintenance access.
Equipment transportation.
Supporting performer access, such as dancers.
The main singers or performers would normally use dedicated backstage routes connected to the main stage.
Therefore, these side staircases were more likely designed as flexible working access points rather than the primary performer entrance.
This separation between performer movement and technical circulation is an important principle in large event planning.

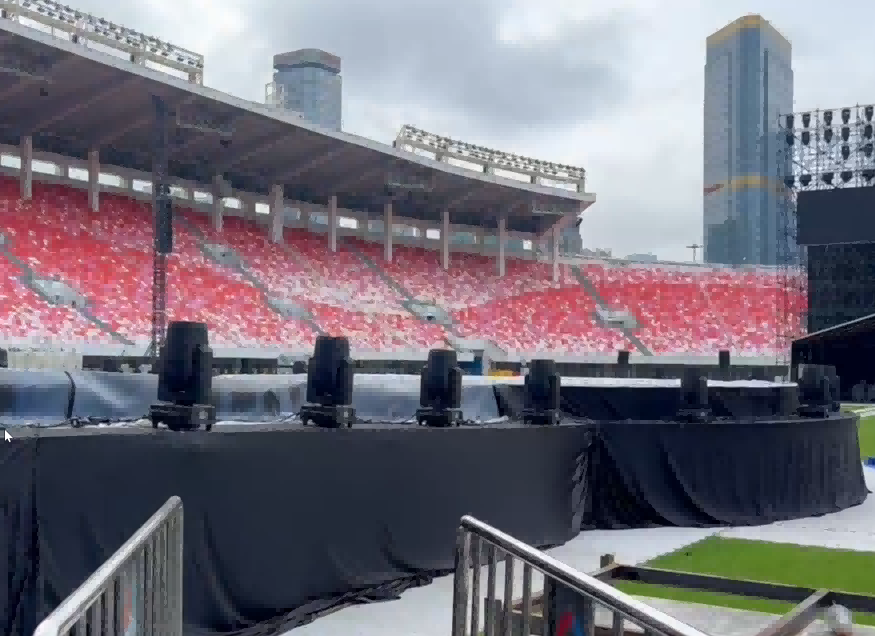

Another distinctive feature was the installation of two independent lighting platforms positioned in front of the main stage and alongside the walkway.
These platforms were approximately 500 mm lower than the walkway surface.
This height difference created a clear separation between the performance area and technical equipment areas.
The design likely served several purposes:
Prevent Uncontrolled Access
By lowering the lighting platforms, performers and backstage personnel were less likely to accidentally enter the technical equipment zone during the performance.
Lighting fixtures, cables and adjustment areas remained clearly separated.
Provide Stable Lighting Positions
The independent platforms provided dedicated positions for lighting equipment without occupying the main performer movement area.
This allowed lighting designers to create suitable angles for performers on the walkway and circular stage.
Improve Safety
Separating technical equipment from performance circulation reduces the risk of:
Equipment contact.
Cable interference.
Accidental collision.
Uncontrolled movement near lighting fixtures.
This reflects the same engineering philosophy used throughout temporary event structures: different functions should have clearly defined spaces.
Why Was the Entire Walkway Surrounded by Black Stage Skirts?
The entire perimeter of the walkway and circular stage was covered with black stage skirts.
Although stage skirts are sometimes considered a decorative element, they also perform important practical functions.
They hide:
Supporting structures.
Stage legs.
Connection components.
Cable routes.
Temporary storage areas.
Without these coverings, audiences would see the temporary engineering structure beneath the performance surface.
The black finish creates a cleaner visual appearance and helps the stage blend naturally into the concert environment.
Professional event engineering considers both structural performance and visual presentation.
A successful stage should not only be safe—it should also appear refined and intentional.
The Walkway Stage Required Coordination Between Structure and Production
A concert walkway must satisfy two different requirements.
For performers:
More movement space.
Closer audience interaction.
More dynamic stage performance.
For production teams:
Safe access.
Camera positions.
Lighting support.
Maintenance capability.
Equipment transportation.
This balance requires coordination between:
Stage structure.
Lighting system.
Sound system.
Camera system.
Performer circulation.
Safety requirements.
The walkway therefore cannot be designed separately from the main stage.
It must be considered together with the complete Stage System.
Engineering Principles Behind This Walkway Design
The observed walkway stage demonstrates several important engineering principles.
1. Performance Space and Technical Space Should Be Separated
The performer area remained clear, while lighting and technical functions were moved to independent platforms.
The circular B stage was not simply added for appearance.
It required integration with:
Load-bearing structure.
Access routes.
Lighting.
Sound coverage.
Safety systems.
3. Temporary Structures Must Support Both Construction and Operation
The side staircases were useful during installation and remained valuable during the event.
This dual-purpose approach improves efficiency.
4. Visual Quality Is Part of Engineering
The black stage skirts demonstrate that temporary structures must consider how they appear to the audience.
Engineering and presentation are not separate.
Conclusion
A concert walkway stage is much more than a simple extension from the main stage.
It is a carefully engineered temporary structure that combines:
Performer movement.
Audience interaction.
Camera access.
Lighting support.
Technical circulation.
Visual presentation.
During the 2026 Guangzhou Pearl Beer Festival Music Festival, the walkway and circular B stage created an extended performance zone that connected the main stage with VIP spectators and the wider audience area.
The side staircases provided operational flexibility.
The independent lighting platforms separated technical equipment from performer movement.
The black stage skirts created a clean professional appearance.
Together, these details demonstrate how modern concert structures are designed not only for performance, but also for safety, efficiency and audience experience.
A successful walkway stage is therefore not simply built outward from the main stage—it is engineered as an integrated part of the entire concert production system.
