DRAGON STAGE
packing weight:3350kg
packing volume: 30cbm
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| 20.00 m Beam(front) | 3 sets | 3.00 m | 50×3.0 | CS389×389 | 18pcs | |||
| 2.00 m | 50×3.0 | CS389×389 | 3pcs | |||||
| 1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
| 14.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs | |||
| 2.00 m | 50×3.0 | CS389×389 | 2pcs | |||||
| 1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
| 11.00 m Pillar | 6 sets | 3.00 m | 50×3.0 | CS389×389 | 18pcs | |||
| 2.00 m | 50×3.0 | CS389×389 | 6pcs | |||||
| 1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
| beam cube | Spigot cube 389x389 | 0pcs | ||||||
| Frame Tower | Spigot Sleeve Block S | 6pcs | ||||||
| Steel Base S | 6pcs | |||||||
| Top Section S | 6pcs | |||||||
| Manual hoist,BA05 2Tons | 6pcs | |||||||
| Spigot Hinge Section,Height 1m | 6pcs | |||||||
| Fibre sling,BA04,2 tons 3m | 6pcs | |||||||
| Long outrigger | 24pcs | |||||||
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| Roof Pillar | 3 sets | 2.00 m | 50×3.0 | CS289×289 | 3pcs | |||
| 14.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 1pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 10.20 m Oblique Beam | 6 sets | 3.00 m | 50×3.0 | CS289×289 | 18pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 1.20 m | 50×3.0 | CS289×289 | 6pcs | |||||
| 10.20 m Ladder truss | 10 sets | 3.00 m | 50×3.0 | CL30,289*50 | 30pcs | |||
| 2.00 m | 50×3.0 | CL30,289*50 | 0pcs | |||||
| 1.20 m | 50×3.0 | CL30,289*50 | 10pcs | |||||
| Roof Components | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs | |||||
| roof conner 5 ways, use for roof beam truss | CS289×289 | 1pcs | ||||||
| Connect plate with clamp | 3pcs | |||||||
| Single clamp | 20pcs | |||||||
| Double clamp | 12pcs | |||||||
| roof canopy material:pvc, Blue Colour or customized. | 434.56 | 1pcs | ||||||
| 0.4-0.8m | 0.8-1.2m | 1.2-2m | |
| packing weight | 7250 | 7650 | 8100kg |
| packing volume | 37 | 49 | 53cbm |
| Item | Specification | Quantity | |||
| Aluminium assembly stage | topping:1x2m | wooden | 140 pcs | ||
| 1m stage brace | 154 pcs | ||||
| 2m stage brace | 150 pcs | ||||
| stand with extendable tube | 165 pcs | ||||
| Stage adjustable base | 165 pcs | ||||
| Stage Stair | wooden topping | total | 7 | steps | 2 pcs |

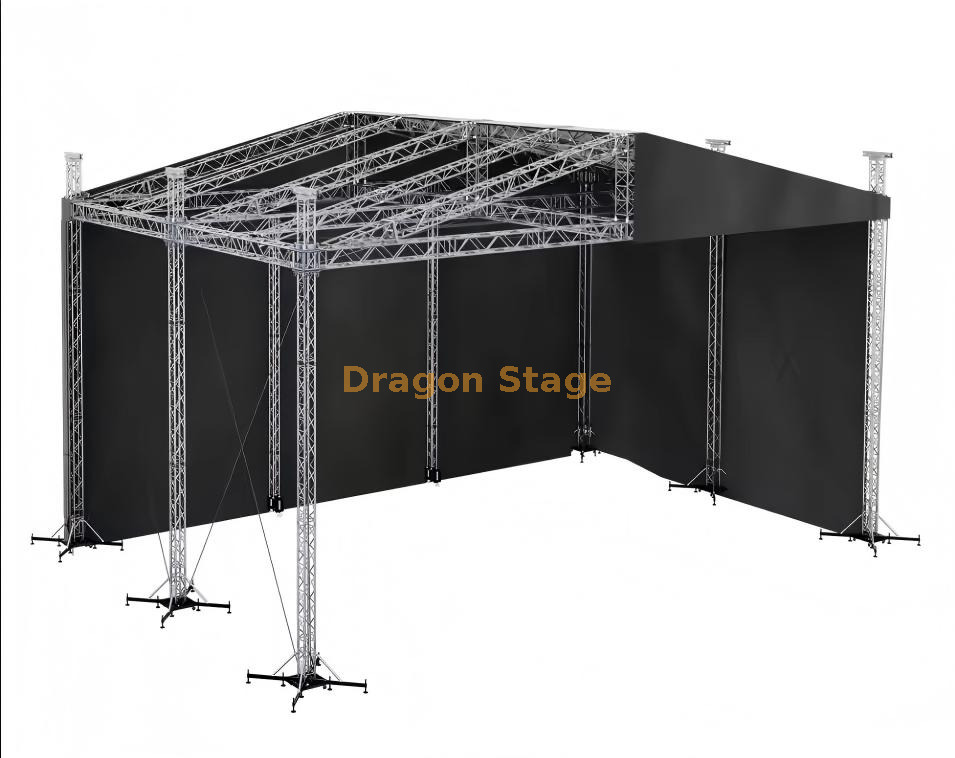

High-impact outdoor productions, such as country music festivals and stadium-level concerts, require a foundation that matches the scale of the performance. The 20x14x12m Aluminum Country Music Stage by DragonStage is a premier engineering solution designed for the biggest shows. Providing 280 square meters of covered performance area and a commanding 12-meter height, this structure accommodates multi-piece bands, tiered staging, and expansive LED backdrops. For production managers, the challenge is finding a structure that offers massive rigging capacity without sacrificing structural safety—a challenge this heavy-duty aluminum system solves with industrial precision and "stadium-grade" reliability.
A major challenge for 20-meter spans is structural deflection—the tendency for the truss to sag under the weight of lighting and audio gear. DragonStage solves this by utilizing heavy-duty 400x600mm or larger bolt-truss profiles that maintain a rigid horizontal line across the entire width. Furthermore, at a 12-meter height, wind resistance becomes a critical safety factor. Our solution involves a multi-tower ground support system and integrated ballast points that anchor the structure firmly against lateral forces. For event crews facing tight touring schedules, the modular aluminum design allows for a faster, tool-efficient setup compared to traditional steel scaffolding, ensuring the show starts on time, every time.
The 20x14x12m system is manufactured from aerospace-grade 6082-T6 aluminum alloy. This material is specifically chosen for its high tensile strength and superior resistance to corrosion in outdoor environments (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html). This ensures that the structure remains a safe, rust-free, and professional asset for years of continuous touring.
The system features a reinforced roof grid capable of supporting massive distributed loads for moving head beam lights and heavy LED screens. According to international safety standards for temporary performance structures, the 12-meter height is optimized to provide clear sightlines for audiences of thousands while maintaining the necessary distance for pyrotechnics and high-heat lighting (Source:https://www.prolight-sound.com).
To ensure a complete venue solution, this trussing is perfectly compatible with our modular aluminum stage platforms. These decks feature 18mm anti-slip surfaces and high-load capacities, providing a stable foundation for the dynamic movements of performers and heavy musical equipment (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html).
Q: What is the maximum load the 20m span can support?A: The 20m span is engineered for high-capacity rigging. While limits depend on the specific configuration, it can typically support several tons of distributed load. Please contact our engineers for a detailed load table.
Q: Is a crane required for the 12-meter towers?A: While the components are manageable, we recommend using a small crane or specialized heavy-duty motor hoists for the 12m pillars to ensure maximum safety and speed during assembly.
Q: Is the PVC canopy waterproof and fire-safe?A: Absolutely. The canopy is made from 850g/m² PVC that is waterproof, UV-resistant, and meets B1/M2 fire-retardant safety standards.
Q: Can this stage be used in high-wind festival grounds?A: Yes. When used with proper ballast and guy-wires, this system is designed for high-wind stability. We provide full structural guidance for outdoor anchoring.
Ensure your next large-scale production is built on a foundation of safety and elite engineering. Contact DragonStage’s engineering team today for a custom quote on the 20x14x12m Country Music Stage system. Download our technical specifications and start planning your most ambitious concert season yet.
