Dragon Stage
packing weight:1700kg
packing volume:12cbm
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| 9.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 6pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 7.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 2pcs | |||||
| 4.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
| beam cube | Spigotcube 289x289 | 0pcs | ||||||
| Frame Tower | Spigot Sleeve Block S | 4pcs | ||||||
| Steel Base S | 4pcs | |||||||
| Top Section S | 4pcs | |||||||
| Manual hoist,BA05 2Tons | 4pcs | |||||||
| Spigot Hinge Section,Height 1m | 4pcs | |||||||
| Fibre sling,BA04,2 tons 3m | 4pcs | |||||||
| Long outrigger | 16pcs | |||||||
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| Roof Pillar | 2 sets | .90 m | 50×3.0 | CS289×289 | 2pcs | |||
| 7.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 1pcs | |||||
| 4.70 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 1.70 m | 50×3.0 | CS289×289 | 4pcs | |||||
| 4.70 m Ladder truss | 6 sets | 3.00 m | 50×3.0 | CL30,289*50 | 6pcs | |||
| 2.00 m | 50×3.0 | CL30,289*50 | 0pcs | |||||
| 1.70 m | 50×3.0 | CL30,289*50 | 6pcs | |||||
| Roof Components | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs | |||||
| roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs | ||||||
| Connect plate with clamp | 2pcs | |||||||
| Single clamp | 12pcs | |||||||
| Double clamp | 8pcs | |||||||
| roof canopy material:pvc, Blue Colour or customized. | 126.46 | 1pcs | ||||||
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| 2.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 0pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 2pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 4.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 2pcs | |||||
| Wings Tower | Spigot Sleeve Block S | 2pcs | ||||||
| Steel Base S | 2pcs | |||||||
| Top Section S | 2pcs | |||||||
| Manual hoist,BA05 2Tons | 2pcs | |||||||
| Spigot Hinge Section,Height 1m | 2pcs | |||||||
| Fibre sling,BA04,2 tons 3m | 2pcs | |||||||
| Long outrigger | 8pcs | |||||||
| Truss Accessory | Conical coupler & Safrty clip & pin | whole set | ||||||
packing weight:900kg
packing volume:5cbm
| Item | Specification | Quantity | |||
| Aluminium assembly stage | topping: 4x8ft (1.22x2.44m) | wooden | 15 pcs | ||
| 1.22m stage brace | 20 pcs | ||||
| 2.44m stage brace | 18 pcs | ||||
| stand with extendable tube | 24 pcs | ||||
| Stage adjustable base | 24 pcs | ||||
| Stage Stair | wooden topping | total | 4 | steps | 2 pcs |

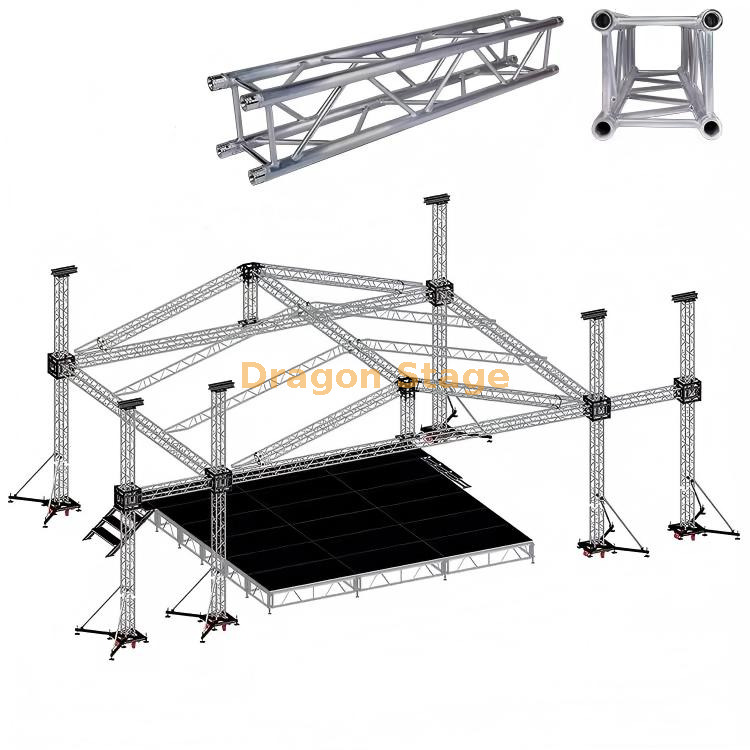

For mid-sized festivals and regional touring acts, the quality of the stage and sound support defines the production's professional caliber. The 9x7x5m Aluminum Outdoor Stage and Truss System by DragonStage is a high-performance solution designed to integrate lighting, roofing, and professional audio into a single, cohesive structure. Featuring dedicated 2m line array towers, this system provides the vertical and lateral clearance necessary for immersive outdoor sound and light shows. For event organizers, the primary challenge is deploying a rig that offers "big-stage" features—like flying audio—within a manageable 63-square-meter footprint. This precision-engineered system addresses those needs with industrial-grade reliability.
A common struggle in outdoor production is the safe suspension of line array speakers. Using independent speaker stands can be unstable on soft ground and creates a cluttered stage area. DragonStage solves this by integrating 2m line array towers directly into the truss architecture, providing a stable, reinforced outrigger system for audio. Additionally, outdoor events are often at the mercy of unpredictable weather; water pooling on a roof canopy can compromise structural integrity. Our solution features a pitched roof design with high-tension PVC that facilitates immediate water runoff. Furthermore, for setups on uneven festival fields, our adjustable stage legs and heavy-duty leveling jacks ensure a perfectly flat performance surface regardless of the terrain.
The 9x7x5m structure is manufactured from aerospace-grade 6082-T6 aluminum alloy, offering the highest strength-to-weight ratio for temporary outdoor structures and exceptional resistance to environmental oxidation (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html). This ensures a long-term, rust-free investment for rental houses and event organizers.
The system utilizes a 290mm or 390mm square truss profile with high-precision spigot connections for rapid, tool-free assembly. The 2m line array towers are a standout feature, allowing for optimized acoustic coverage by flying speakers clear of the performance area. According to international safety standards for temporary performance structures, the use of integrated towers with proper outriggers is essential for preventing structural tip-over during high-wind conditions (Source:https://www.lsionline.com).
To ensure a complete venue solution, this trussing is perfectly compatible with our modular aluminum stage platforms. These decks feature 18mm anti-slip birch plywood and can be adjusted in height to create ideal sightlines for any audience (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html). This total-system approach ensures that every component, from the stage floor to the 5m roof peak, works in structural harmony.
Q: What is the maximum hanging weight for the 2m line array towers?A: The 2m wings are reinforced to support heavy professional audio arrays; however, specific load limits depend on the ballast used. Please consult our engineers for a weight-calculation report.
Q: Can the 9x7m stage be used without the trussing?A: Yes, the system is fully modular. The aluminum stage platforms can be used independently for indoor events or smaller outdoor speaking engagements.
Q: Is the PVC canopy fire-retardant?A: Absolutely. Our canopies are made from 850g/m² PVC that is waterproof, UV-resistant, and meets B1 fire-retardant safety standards.
Q: How do we raise the 5-meter roof grid?A: The system utilizes specialized sleeve blocks and can be raised using manual hand-winches or electric chain hoists for synchronized lifting.
Empower your next outdoor production with a structure built for elite performance and safety. Contact DragonStage’s engineering team for a custom quote on the 9x7x5m Stage and Truss System with 2m Line Array Towers. Download our detailed technical specifications today and start planning your most successful concert season yet.
