Modular LED Screen Support & Stage Frame Aluminum Truss System

5 0 Reviews

6x5m for led 5x3m, 7x6m for led 6x4m , 9x8m for led 8x6m, 11x9m for led 10x7m Heavy-duty modular aluminum truss system engineered for securely supporting large LED video walls, stage lighting, and sound systems. Features reinforced towers and flexible design for indoor and outdoor event production and exhibition use.

Price: ￥ 17160 - 31580


Sizes:	6x5m 7x6m 9x8m 11x9m
Availability:



Inquire

Brand:
Dragonstage

Product Description

6x5m

packing weight:500kg

packing volume:4cbm

Item	Specification(squre truss)			Qty
	length(M)	main tube(MM)	size(MM)
Upper Beam	3	50×3.0	CS389×389	2 pcs
	2	50×3.0	CS389×389	pcs
	1	50×3.0	CS389×389	pcs
Ground Beam	3	50×3.0	CS289×289	2 pcs
	2	50×3.0	CS289×289	pcs
	1	50×3.0	CS289×289	pcs
Pillar Support Beam	1.5	50×3.0	CS289×289	4 pcs
Pillar	3	50×3.0	CS289×289	2 pcs
	2	50×3.0	CS289×289	pcs
	1	50×3.0	CS289×289	2 pcs
Tower	Spigot Sleeve Block S			2 pcs
	Top Section S			2 pcs
	Manual hoist,BA05 2Tons			2 pcs
	Spigot Hinge Section,Height 1m			2 pcs
	Fibre sling,BA04,2 tons 3m			2 pcs
	Diagonal bar			8 pcs
	cube connector		CS289×289	2 pcs
	Steel Base			8 pcs
Truss Accessory	Conical coupler & Safrty clip & pin			whole set

7x6m

packing weight:530kg

packing volume:4.5cbm

Item	Specification(squre truss)			Qty
	length(M)	main tube(MM)	size(MM)
Upper Beam	3	50×3.0	CS389×389	2 pcs
	2	50×3.0	CS389×389	pcs
	1	50×3.0	CS389×389	1 pcs
Ground Beam	3	50×3.0	CS289×289	2 pcs
	2	50×3.0	CS289×289	pcs
	1	50×3.0	CS289×289	1 pcs
Pillar Support Beam	1.5	50×3.0	CS289×289	4 pcs
Pillar	3	50×3.0	CS289×289	2 pcs
	2	50×3.0	CS289×289	2 pcs
	1	50×3.0	CS289×289	pcs
Tower	Spigot Sleeve Block S			2 pcs
	Top Section S			2 pcs
	Manual hoist,BA05 2Tons			2 pcs
	Spigot Hinge Section,Height 1m			2 pcs
	Fibre sling,BA04,2 tons 3m			2 pcs
	Diagonal bar			8 pcs
	cube connector		CS289×289	2 pcs
	Steel Base			8 pcs
Truss Accessory	Conical coupler & Safrty clip & pin			whole set

9x8m

packing weight:1000kg

packing volume:10cbm

Item	Specification(squre truss)			Qty
	length(M)	main tube(MM)	size(MM)
Upper Beam	3	50×3.0	CS500×600	3 pcs
	2	50×3.0	CS500×600	pcs
	1	50×3.0	CS500×600	pcs
Ground Beam	3	50×3.0	CS389×389	3 pcs
	2	50×3.0	CS389×389	pcs
	1	50×3.0	CS389×389	pcs
Pillar Support Beam	2	50×3.0	CS389×389	4 pcs
Pillar	3	50×3.0	CS389×389	4 pcs
	2	50×3.0	CS389×389	pcs
	1	50×3.0	CS389×389	2 pcs
Tower	Spigot Sleeve Block M			2 pcs
	Top Section M			2 pcs
	Manual hoist,BA05 2Tons			2 pcs
	Spigot Hinge Section,Height 1m			2 pcs
	Fibre sling,BA04,2 tons 3m			2 pcs
	Diagonal bar			8 pcs
	cube connector		CS389×389	2 pcs
	Steel Base			8 pcs
Truss Accessory	Conical coupler & Safrty clip & pin			whole set

11x10m

packing weight:700kg

packing volume:12cbm

Item	Specification(squre truss)			Qty
	length(M)	main tube(MM)	size(MM)
Upper Beam	3	50×4.0	CS520×760	3 pcs
	2	50×4.0	CS520×760	1 pcs
	1	50×4.0	CS520×760	pcs
Ground Beam	3	50×3.0	CS389×389	3 pcs
	2	50×3.0	CS389×389	1 pcs
	1	50×3.0	CS389×389	pcs
Pillar Support Beam	2	50×3.0	CS389×389	4 pcs
Pillar	3	50×3.0	CS389×389	4 pcs
	2	50×3.0	CS389×389	2 pcs
	1	50×3.0	CS389×389	pcs
Tower	Spigot Sleeve Block L			2 pcs
	Top Section L			2 pcs
	Manual hoist,BA05 2Tons			2 pcs
	Spigot Hinge Section,Height 1m			2 pcs
	Fibre sling,BA04,2 tons 3m			2 pcs
	Diagonal bar			8 pcs
	cube connector		CS389×389	2 pcs
	Steel Base			8 pcs
Truss Accessory	Conical coupler & Safrty clip & pin			whole set

This robust Modular LED Screen Support and Stage Frame Aluminum Truss System is a professional, high-capacity rigging solution designed specifically to meet the demands of modern live event production. It is highly adaptable and can be configured as a large stage roof, an extensive exhibition booth frame, or a dedicated LED screen support wall.

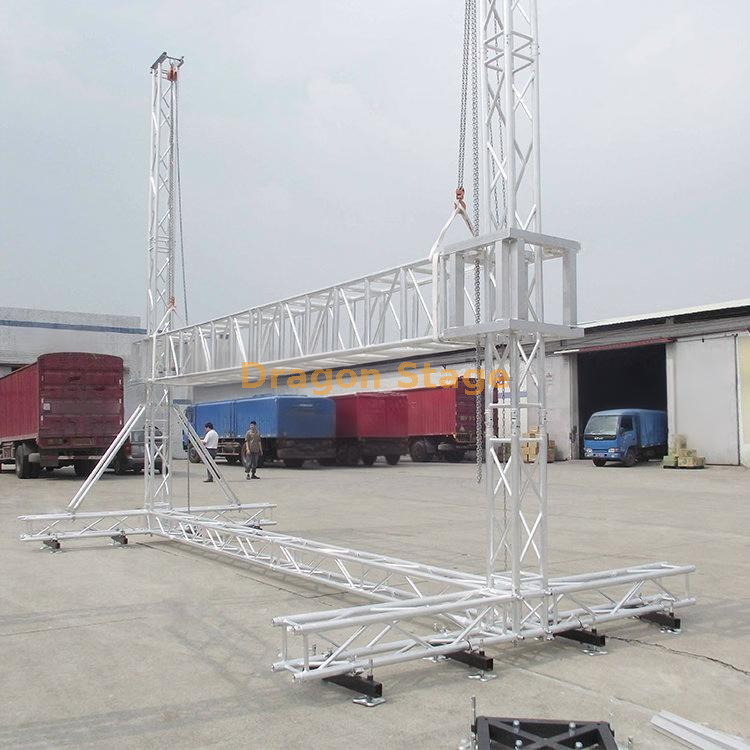

Dedicated Rigging Capacity: The structure features a main roof grid and often includes extra-tall, heavy-duty vertical columns/towers (as seen in the photo) specifically designed to lift and support large, heavy LED video screens or speaker arrays (PA Wings).
Versatile Configuration: The modular design allows for customization of width, depth, and height. It is suitable for creating large, covered stage areas (as seen with the optional stage deck), exhibition halls, or robust video support walls.
Ground Support Design: The system is built on a ground support principle, utilizing adjustable bases and sleeve blocks, making it ideal for temporary, non-permanent installations where high rigging points are required.
Premium Material: Constructed from durable, certified 6061 aluminum alloy (typically bolt or heavy-duty box truss) for maximum stability, superior load-bearing strength, and long-term resistance to corrosion.
