Outdoor Tent Structures, Small Roof Frameworks, Lightweight Support Structures
Cross Section
Width 200mm × Height 200mm
Main Tube
50mm Aluminum Round Tube
Length Options
0.31m / 0.35m (90° Corner) / 0.65m
Environment
Outdoor Tent Truss Applications
Material
Aluminum Alloy
Connection System
Bolt Connection with End Plates
Drawing Type
2D CAD Drawing
Design Purpose
Outdoor tent structural components and lightweight aluminum framework systems
Related Products
Standard Lighting Truss Systems and Outdoor Roof Truss Structures
BS200 Triangular Bolt-Connected Truss Overview
The BS200 aluminum triangular bolt-connected truss system is a compact and lightweight structural solution designed for outdoor tent structures and small-scale aluminum framework applications.
The truss adopts a 50mm round tube design with end plate bolt connections, providing a modular structure that is easy to assemble, transport, and reuse.
With a 200mm × 200mm triangular profile, this system is suitable for:
Outdoor tent frameworks;
Small roof support structures;
Decorative aluminum structures;
Lightweight event structures.
Main Features
Compact Triangular Structure
The triangular configuration provides:
Good structural stability;
Lightweight design;
Efficient material usage;
Suitable geometry for roof and canopy structures.
Bolt Connection System
The end plate connection design allows:
Quick installation;
Easy dismantling;
Convenient transportation;
Flexible structural combination.
Aluminum Alloy Construction
The aluminum structure provides:
Lightweight handling;
Corrosion resistance;
Good appearance;
Suitability for temporary outdoor applications.
Structural Components
Component
Description
Main Chords
50mm aluminum round tubes forming the triangular frame
Diagonal Bracing
Improves structural stability and load distribution
End Plates
Provide modular bolt connection points
Corner Sections
Allow special-angle installation such as 90° turning structures
Bolt System
Enables assembly and disassembly
Available Length Specifications
Model
Cross Section
Length
Main Tube
Connection

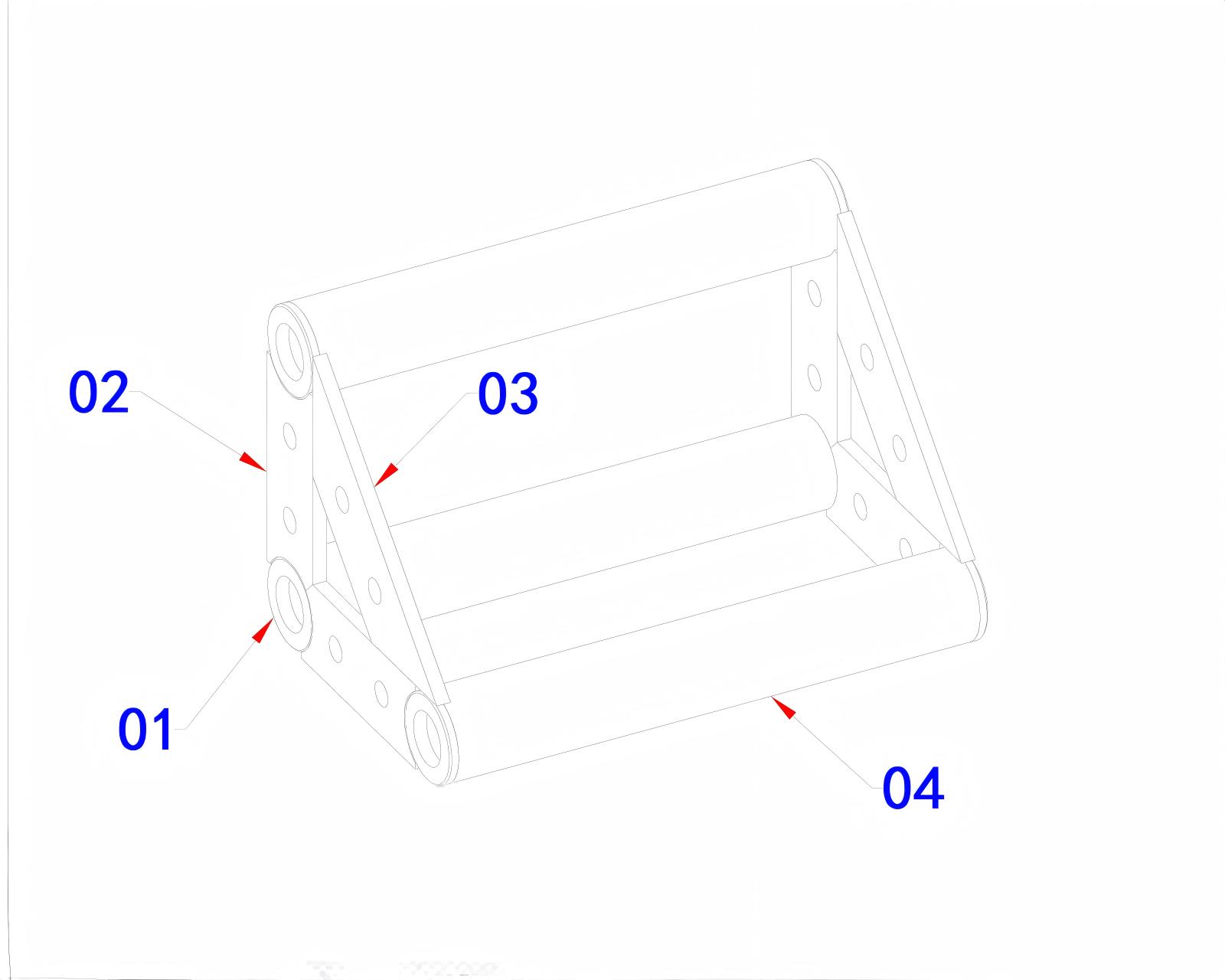

BT20-0.31
200mm × 200mm
0.31m
50mm Aluminum Round Tube
Bolt Connection

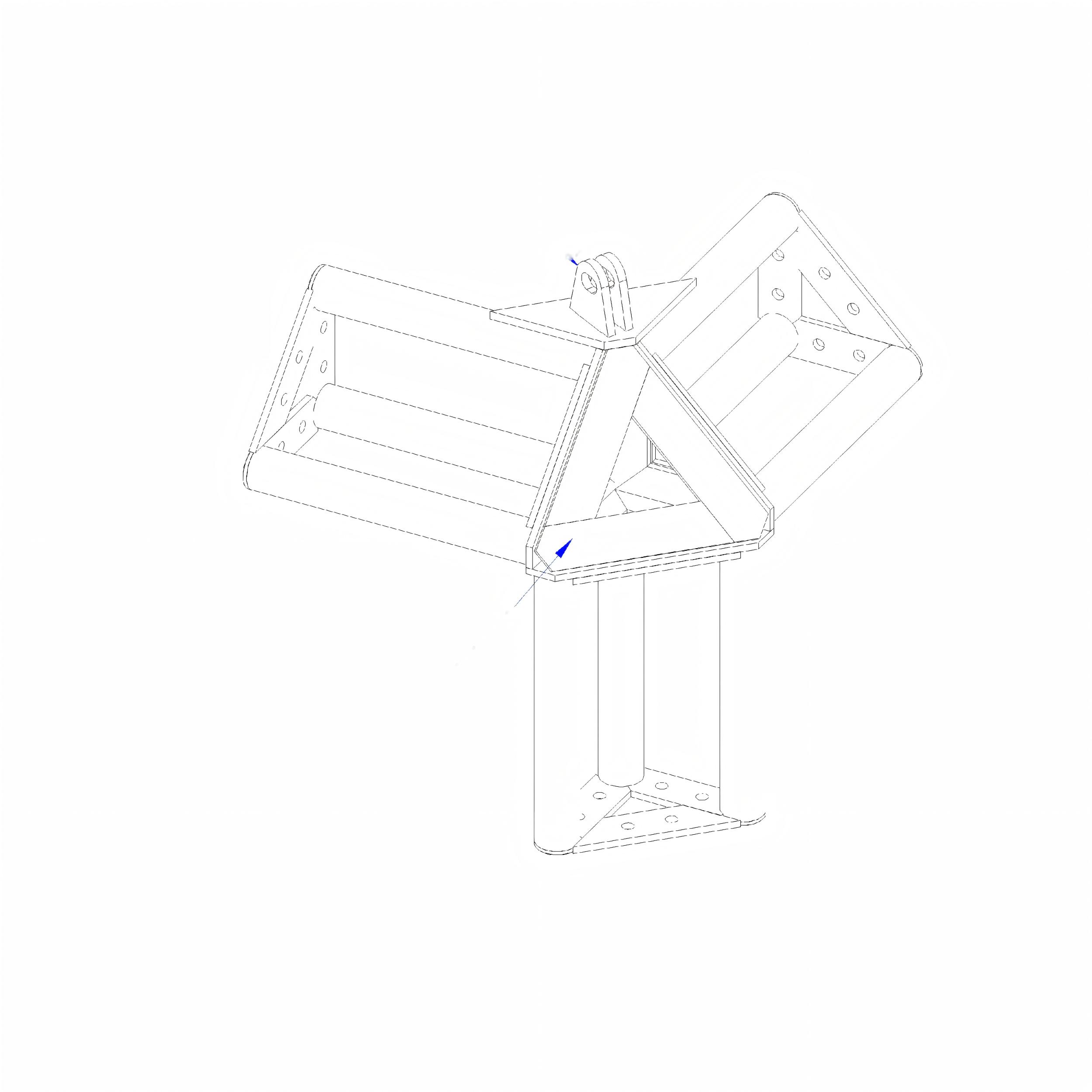

BT20-0.35 Corner
200mm × 200mm
0.35m
50mm Aluminum Round Tube
Bolt Connection

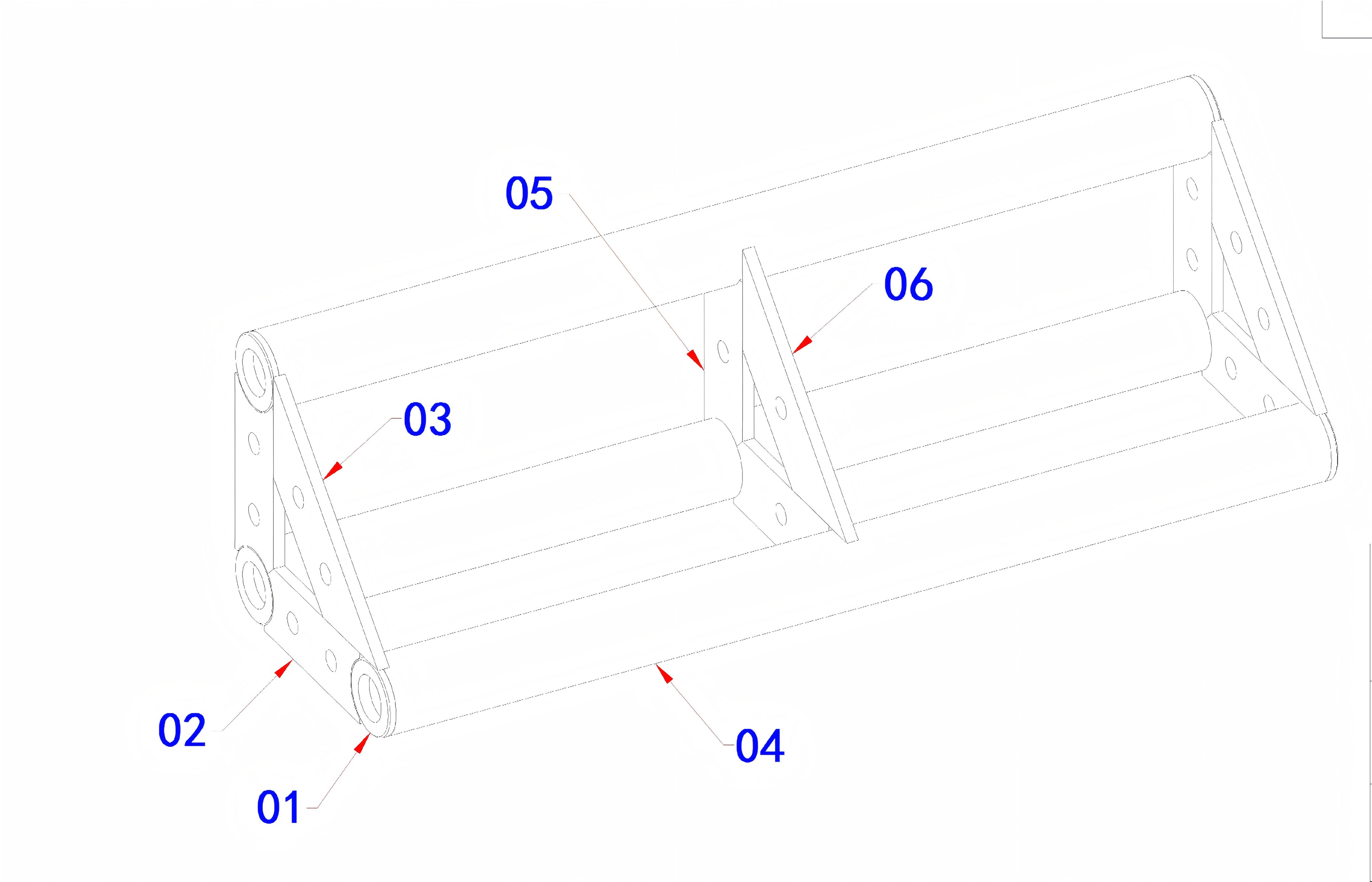

BT20-0.65
200mm × 200mm
0.65m
50mm Aluminum Round Tube
Bolt Connection
Custom dimensions are available according to project requirements.
1. What is BS200 triangular aluminum truss used for?
BS200 triangular aluminum truss is mainly used for outdoor tent structures, lightweight roof frameworks and small event structural systems.
2. What is the size of BS200 truss?
The standard triangular profile size is approximately 200mm × 200mm, using 50mm aluminum round tube as the main structural member.
3. What lengths are available for BS200 truss?
Standard lengths include:
0.31m;
0.35m 90° corner section;
0.65m.
Customized lengths are available.
4. What connection system does BS200 use?
BS200 uses an end plate bolt connection system, allowing fast assembly and dismantling.
5. Can BS200 truss be used outdoors?
Yes. BS200 is suitable for outdoor tent and canopy structures. However, outdoor applications should consider wind loads, covering materials and installation conditions.
Design Notice
The drawings show standard BS200 triangular bolt-connected aluminum truss configurations.
Final structure selection should be confirmed according to project requirements, environmental conditions and engineering considerations.
