12x10x6m Professional Dome Tent Truss Stage System

5 0 Reviews

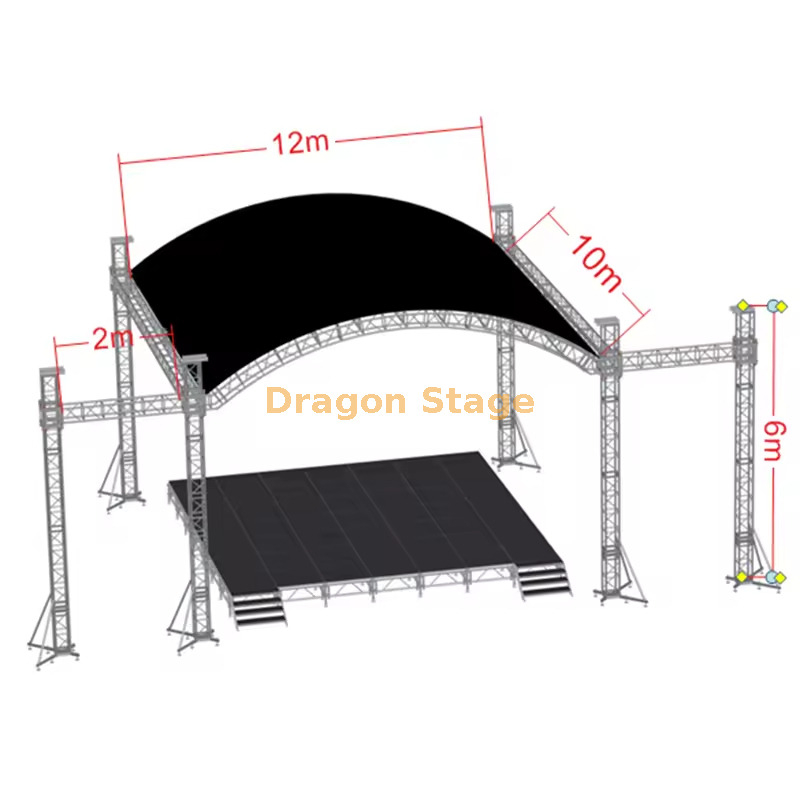

Professional 12m x 10m Aluminum Dome Tent Truss Stage Roof System - 6m High 4-Pillar Ground Support Structure with Dual 2m Speaker Wings

Price: ￥ 67027


Availability:



Inquire

Brand:
Dragonstage

Product Description

Heavy-duty 12m x 10m aluminum dome tent truss stage system standing 6m high. Featuring a reinforced 4-pillar ground support design and dual 2m wide speaker wings. Engineered for professional outdoor concerts, festivals, and events requiring superior arched weather protection and high-capacity rigging.

12m x 10m aluminum dome tent truss stage system

packing weight:1660kg

packing volume:11cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
10.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	6 pcs
		2.00 m	50×3.0	CS389×389	pcs
		1.00 m	50×3.0	CS389×389	2 pcs
6.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	4 pcs
		2.00 m	50×3.0	CS289×289	4 pcs
		1.00 m	50×3.0	CS289×289	pcs
Tower	Spigot Sleeve Block S				4 pcs
	Steel Base S				4 pcs
	Top Section S				4 pcs
	Manual hoist,BA05 2Tons				4 pcs
	Spigot Hinge Section,Height 1m				4 pcs
	Fibre sling,BA04,2 tons 3m				4 pcs
	Long outrigger				16 pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
10.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	3 pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	1 pcs
14.00 m Arch Beam	sets	3.00 m	50×3.0	CS289×289	pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	pcs
14.00 m Ladder truss	6 sets	3.00 m	50×3.0	CL40,389*50	24 pcs
		2.00 m	50×3.0	CL40,389*50	pcs
		1.00 m	50×3.0	CL40,389*50	12 pcs
Roof Components		spigot multi cube, use for roof beam truss		CS289×289	pcs
		Single clamp			24 pcs
		curve truss connector			pcs
		roof canopy material:pvc, Blue Colour or customized.		183.68	1 pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
2.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS389×389	pcs
		2.00 m	50×3.0	CS389×389	2 pcs
		1.00 m	50×3.0	CS389×389	pcs
6.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS289×289	2 pcs
		2.00 m	50×3.0	CS289×289	2 pcs
		1.00 m	50×3.0	CS289×289	pcs
Wings Tower	Spigot Sleeve Block S				2 pcs
	Steel Base S				2 pcs
	Top Section S				2 pcs
	Manual hoist,BA05 2Tons				2 pcs
	Spigot Hinge Section,Height 1m				2 pcs
	Fibre sling,BA04,2 tons 3m				2 pcs
	Long outrigger				8 pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
