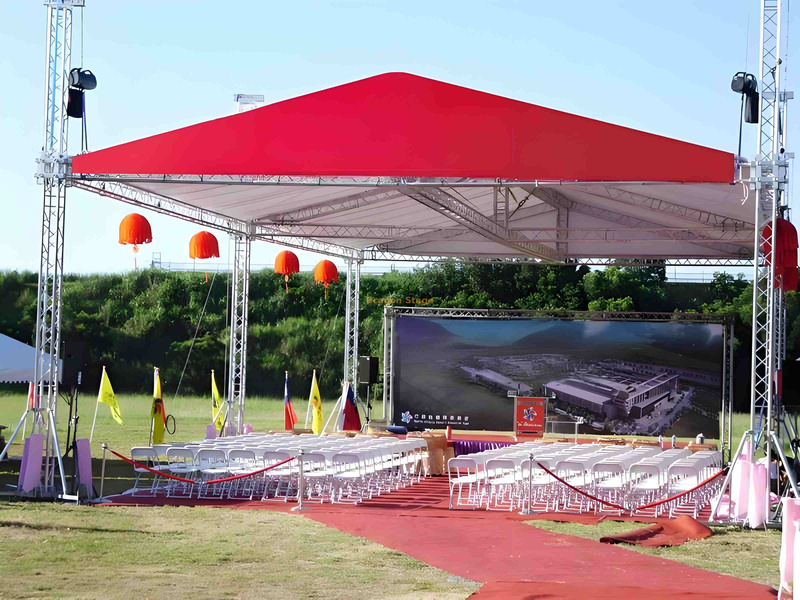

Outdoor Canopy Tent Truss System for Party Wedding Event 18x12x7m

5 0 Reviews

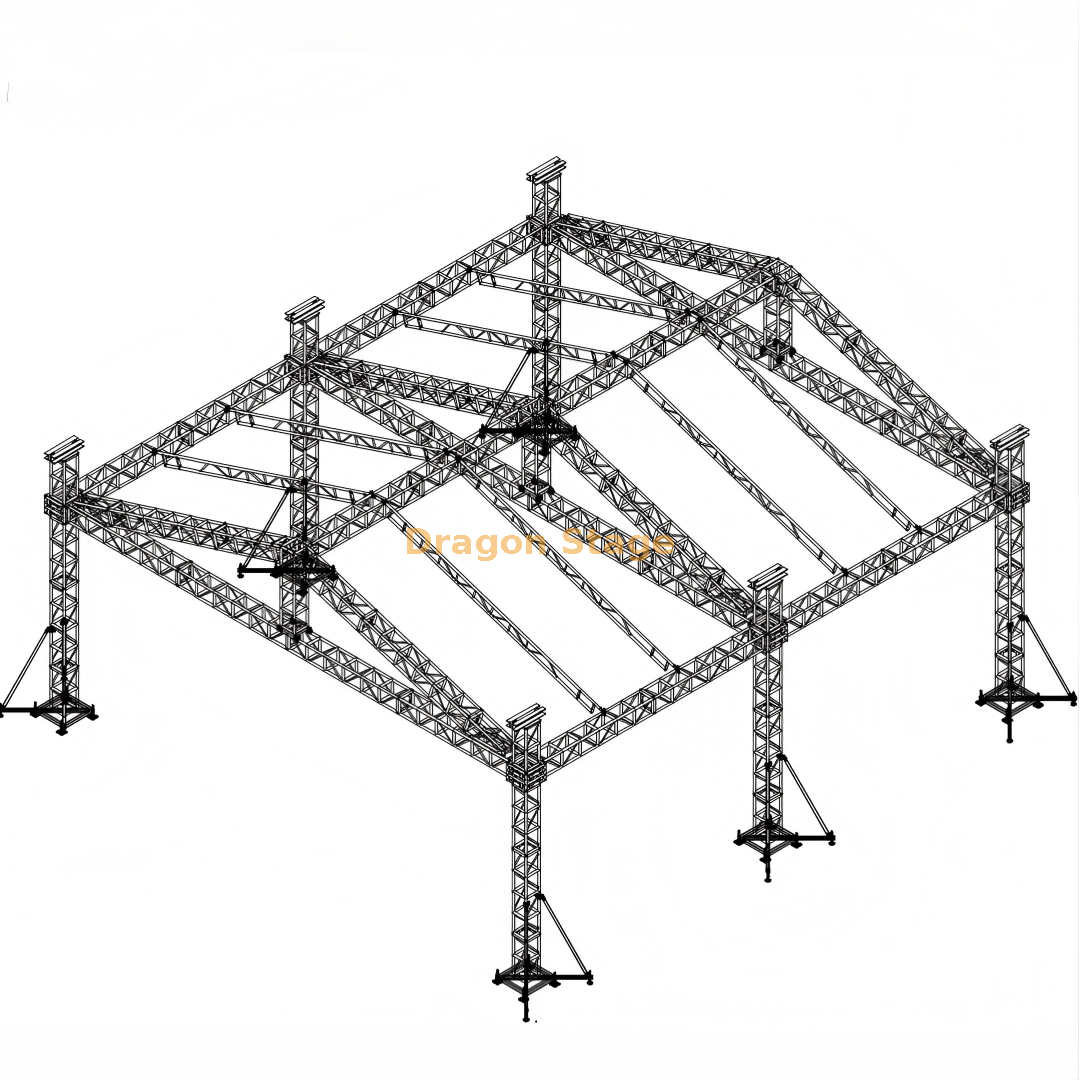

this is a custom Outdoor Canopy Tent Truss System for Party Wedding Event 59x39x23ft (60x40x23ft)

it is 40ft wide and 60ft deep and 23ft high.

it is made of 290mm spigot truss

Price: ￥ 109500

Outdoor Canopy Tent Truss System for Party Wedding Event 18x12x7m(1)

packing weight: 2700kg

packing volume: 22cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
12.00 m Beam(front)	3 sets	3.00 m	50×3.0	CS289×289	12pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
18.00 m Beam(side)	3 sets	3.00 m	50×3.0	CS289×289	18pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
6.00 m Pillar	6 sets	3.00 m	50×3.0	CS289×289	12pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
beam cube	6 faces	CS289×289			0pcs
Frame Tower	Spigot Sleeve Block S				6pcs
	Steel Base S				6pcs
	Top Section S				6pcs
	Manual hoist,BA05 2Tons				6pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	1.20 m	50×3.0	CS289×289	3pcs
18.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
6.20 m Oblique Beam	6 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	6pcs
		1.20 m	50×3.0	CS289×289	6pcs
6.20 m Ladder truss	14 sets	3.00 m	50×3.0	CL30,289*50	14pcs
		2.00 m	50×3.0	CL30,289*50	14pcs
		1.20 m	50×3.0	CL30,289*50	14pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	1pcs
	1	Connect plate with clamp		CS289×289	3pcs
		Single clamp			28pcs
		Double clamp			12pcs
		roof canopy material:pvc, Blue Colour or customized.		327.36	1pcs
