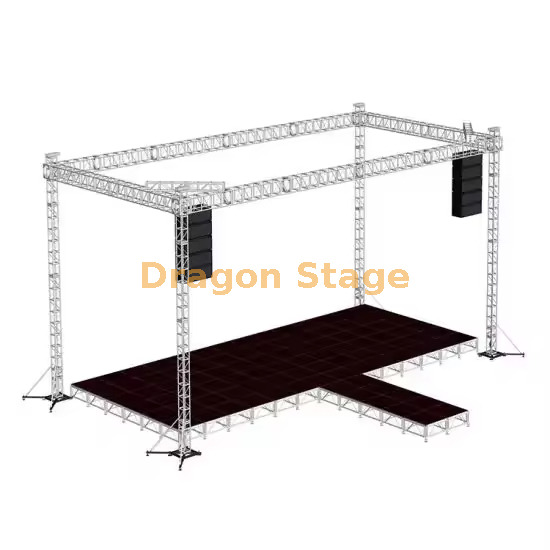

12x3x8m Aluminum Stage Lighting Truss System

5 0 Reviews

For touring productions, fashion runways, and regional festivals, the overhead structure must offer elite-tier height and uncompromising safety. The 12x3x8m Aluminum Stage Lighting Truss System by DragonStage is a premier engineering solution, providing a specialized 36-square-meter footprint with a commanding 8-meter vertical clearance. Optimized for high-impact lighting plots and professional rigging, this system utilized high-strength 6061-T8 aluminum alloy and a precision spigot-connection framework to deliver stadium-scale performance in a portable package.

Price: ￥ 33420


Availability:



Inquire

Brand:
Dragonstage

Product Description

packing weight:970kg

packing volume:9cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
12.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS389×389	8pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
3.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	2pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
7.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	8pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	4pcs
beam cube	6 faces	CS389×389			0pcs
Frame Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs

A critical challenge for 12-meter horizontal spans is managing structural "sag" or deflection when fully loaded with lighting fixtures and LED screens. DragonStage addresses this by using 6061-T8 aluminum alloy, which features a higher yield strength and hardness than standard T6 alloys, ensuring the structure remains rigid and safe under heavy loads.

Another primary concern for 8-meter structures is stability against lateral forces and wind. Our ground support towers are engineered with reinforced bases, extended outriggers, and heavy-duty leveling jacks to provide a secure center of gravity on any terrain, from flat concrete to park grass. To mitigate weather risks during outdoor events, the system is compatible with our high-tension pitched roof canopies, which ensure rapid water runoff to prevent dangerous weight accumulation.
