10x8x6m Professional Stage Roof with Dual Lighting Beams & PA Wings

5 0 Reviews

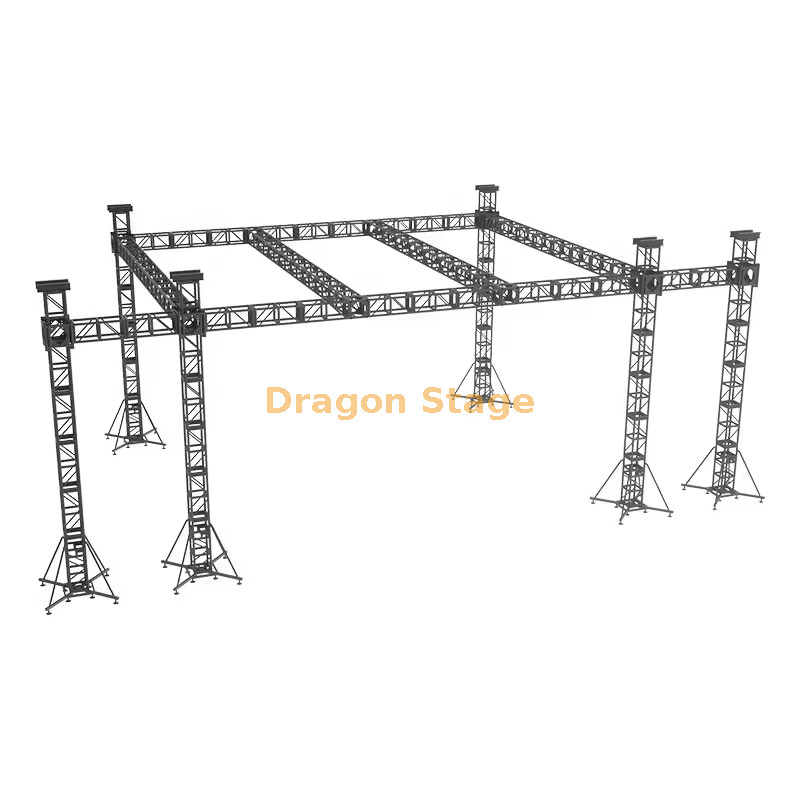

Professional 10m x 8m Aluminum Stage Roof Truss System - 6m High 4-Pillar Ground Support Rig with Dual Vertical Lighting Beams and 2m Speaker Wings

Price: ￥ 60300


Availability:



Inquire

Brand:
Dragonstage

Product Description

Heavy-duty 10m x 8m aluminum stage roof truss system standing 6m high. Featuring a reinforced 4-pillar ground support design, dual vertical internal lighting beams, and 2m wide speaker wings. Engineered for professional concerts and events requiring integrated chain hoist rigging and high-capacity audio-visual support.

10x8x6m Professional Stage Roof with Dual Lighting Beams & PA Wings

packing weight:1870kg

packing volume:13cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
10.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	2pcs
8.00 m Beam(side)	4 sets	3.00 m	50×3.0	CS289×289	8pcs
		2.00 m	50×3.0	CS289×289	4pcs
		1.00 m	50×3.0	CS289×289	0pcs
5.00 m Pillar	6 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	6pcs
		1.00 m	50×3.0	CS289×289	0pcs
beam cube	6 faces	CS289×289			4pcs
Frame Tower	Spigot Sleeve Block S				6pcs
	Steel Base S				6pcs
	Top Section S				6pcs
	Manual hoist,BA05 2Tons				6pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
2.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS289×289	0pcs
		2.00 m	50×3.0	CS289×289	2pcs
		1.00 m	50×3.0	CS289×289	0pcs
5.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS289×289	2pcs
		2.00 m	50×3.0	CS289×289	2pcs
		1.00 m	50×3.0	CS289×289	0pcs
Wings Tower	Spigot Sleeve Block S				2pcs
	Steel Base S				2pcs
	Top Section S				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
