Heavy Duty Modular Aluminum Stage Roof Truss System with Speaker Wings 16x10x8m

5 0 Reviews

Maximize your event's potential with our heavy-duty 16x10x8m aluminum stage roof truss system. This modular, spigot-connected canopy includes two 2m wide speaker wings and is engineered for large-scale outdoor concerts, festivals, and professional events. It offers superior strength, easy assembly, and reliable support for all your lighting and audio equipment.

Price: ￥ 136760


Availability:



Inquire

Brand:
Dragonstage

Product Description

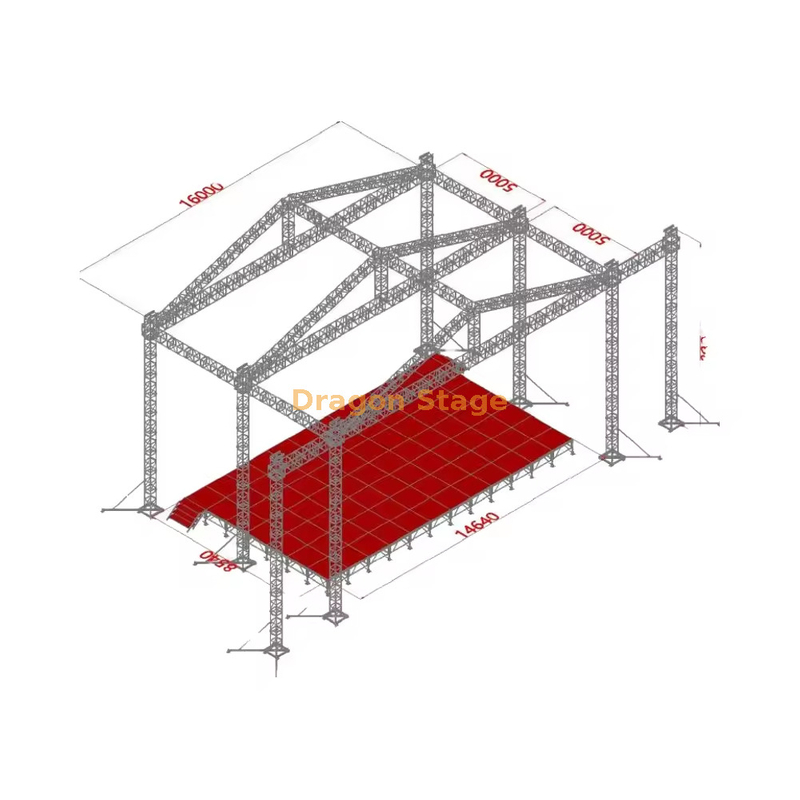

Elevate your next major event with this robust and versatile 16m x 10m x 8m (L x D x H) aluminum stage truss system.

Features:

Durable Construction: Built from high-grade aluminum alloy 6061 for exceptional strength and corrosion resistance, ensuring long-term outdoor use.
Optimal Dimensions: Provides a massive 16m span, 10m depth, and 8m height for maximum audience visibility and performance space.
Integrated Speaker Wings: Includes dedicated 2-meter wide side wings (PA wings) to securely rig large line array speaker systems, optimizing sound coverage and stage layout.
Modular & Easy Assembly: Features a spigot connection system for quick, efficient setup and disassembly, making transport and storage straightforward.
Versatile Application: Ideal for suspending heavy stage lighting, professional audio equipment, LED screens, and backdrops with confidence at concerts, festivals, corporate events, and trade shows.

Heavy Duty Modular Aluminum Stage Roof Truss System with Speaker Wings 16x10x8m

packing weight:3560kg

packing volume: 40cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
16.00 m Beam(front)	3 sets	3.00 m	50×3.0	CS500×600	15pcs
		2.00 m	50×3.0	CS500×600	0pcs
		1.00 m	50×3.0	CS500×600	3pcs
10.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS500×600	6pcs
		2.00 m	50×3.0	CS500×600	0pcs
		1.00 m	50×3.0	CS500×600	2pcs
7.00 m Pillar	6 sets	3.00 m	50×3.0	CS389×389	12pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	6pcs
beam cube	6 faces	CS500×600			0pcs
Frame Tower	Spigot Sleeve Block M				6pcs
	Steel Base M				6pcs
	Top Section M				6pcs
	Manual hoist,BA05 2Tons				6pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	1.60 m	50×3.0	CS289×289	3pcs
10.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	3pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	1pcs
8.20 m Oblique Beam	6 sets	3.00 m	50×3.0	CS289×289	12pcs
		2.00 m	50×3.0	CS289×289	0pcs
		2.20 m	50×3.0	CS289×289	6pcs
8.20 m Ladder truss	6 sets	3.00 m	50×3.0	CL30,289*50	12pcs
		2.00 m	50×3.0	CL30,289*50	0pcs
		2.20 m	50×3.0	CL30,289*50	6pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	1pcs
	1	Connect plate with clamp		CS289×289	3pcs
		Single clamp			12pcs
		Double clamp			12pcs
		roof canopy material:pvc, Blue Colour or customized.		274.56	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
2.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS500×600	0pcs
		2.00 m	50×3.0	CS500×600	2pcs
		1.00 m	50×3.0	CS500×600	0pcs
7.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS389×389	4pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	2pcs
Wings Tower	Spigot Sleeve Block M				2pcs
	Steel Base M				2pcs
	Top Section M				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
