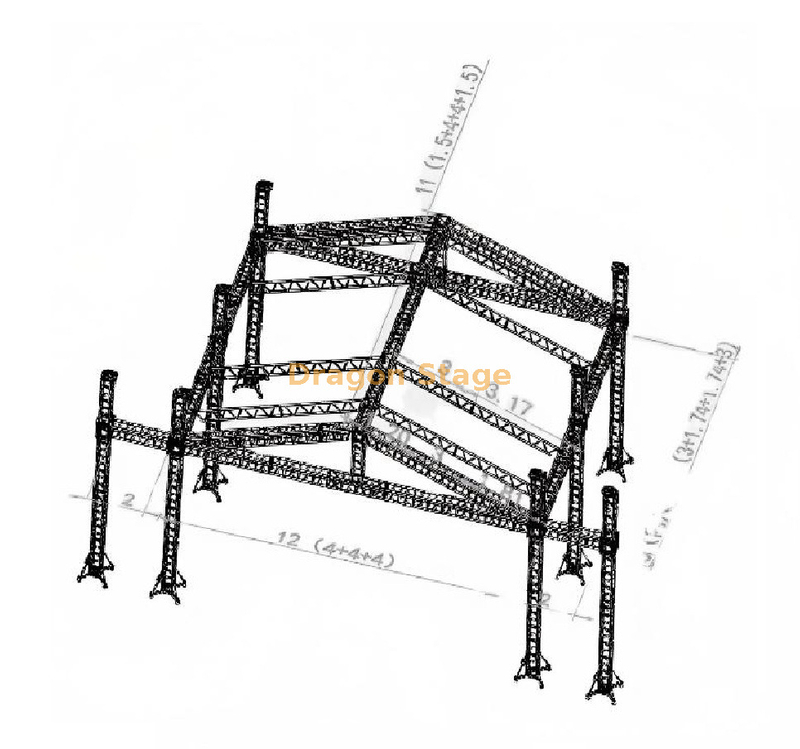

12x12x8m Aluminum Outdoor Concert Stage Truss System with 2m PA Wings

5 0 Reviews

Discover our massive 12m x 12m aluminum outdoor stage truss system. Standing 8m high with two 2m PA speaker wings, this heavy-duty ground support rig is ideal for large concerts and festivals. Durable and reliable!

Price: ￥ 101518


Availability:



Inquire

Brand:
Dragonstage

Product Description

Elevate your large-scale productions with this professional-grade 12m x 12m aluminum outdoor event truss system. Engineered for maximum stability and performance, this robust ground support structure is the premier solution for demanding environments such as major concerts, festivals, and large corporate events.

12x12x8m Aluminum Outdoor Concert Stage Truss System with 2m PA Wings

packing weight:2660kg

packing volume:23cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
12.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS389×389	8pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
12.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	8pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
7.00 m Pillar	6 sets	3.00 m	50×3.0	CS289×289	12pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	6pcs
beam cube	6 faces	CS389×389			FALSE
Frame Tower	Spigot Sleeve Block S				6pcs
	Steel Base S				6pcs
	Top Section S				6pcs
	Manual hoist,BA05 2Tons				6pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	1.20 m	50×3.0	CS289×289	2pcs
12.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
6.20 m Oblique Beam	6 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	6pcs
		1.20 m	50×3.0	CS289×289	6pcs
6.20 m Ladder truss	8 sets	3.00 m	50×3.0	CL30,289*50	8pcs
		2.00 m	50×3.0	CL30,289*50	8pcs
		1.20 m	50×3.0	CL30,289*50	8pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	0pcs
	1	Connect plate with clamp		CS289×289	2pcs
		Single clamp			16pcs
		Double clamp			12pcs
		roof canopy material:pvc, Blue Colour or customized.		238.56	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
2.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS389×389	0pcs
		2.00 m	50×3.0	CS389×389	2pcs
		1.00 m	50×3.0	CS389×389	0pcs
7.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	2pcs
Wings Tower	Spigot Sleeve Block S				2pcs
	Steel Base S				2pcs
	Top Section S				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
