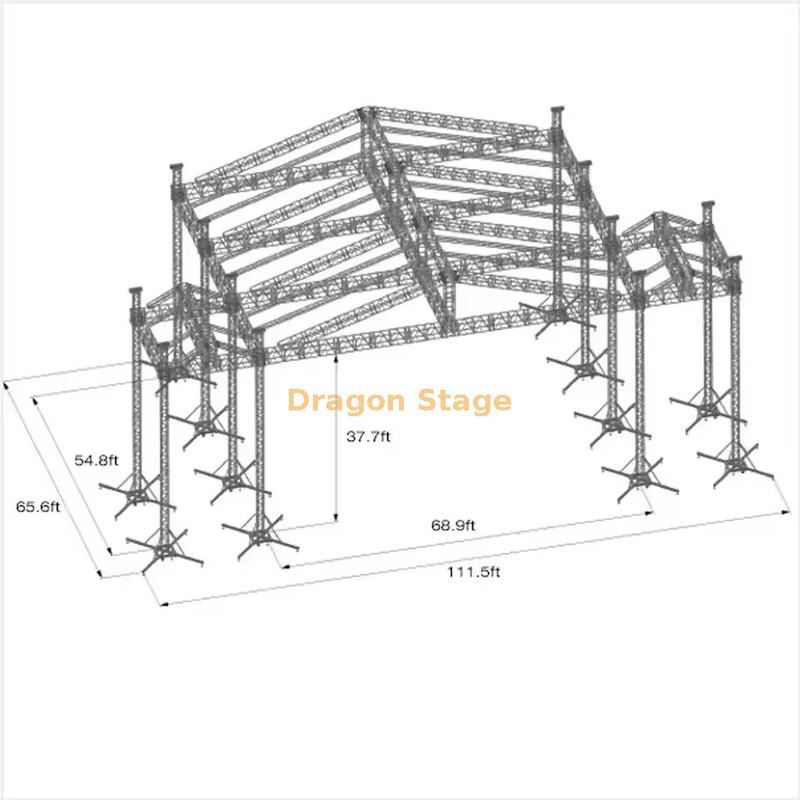

Elevate the world's largest productions with this professional-grade 21m x 21m aluminum outdoor event truss system. Engineered for maximum stability and performance, this robust ground support structure is the premier solution for demanding environments such as major international concerts, large-scale festivals, and major corporate events.
packing weight:5300kg
packing volume:64cbm
main body
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 21.00 m Beam(front) | 4 sets | 3.00 m | 50×4.0 | CS520×760 | 28pcs |
| 2.00 m | 50×4.0 | CS520×760 | 0pcs |
| 1.00 m | 50×4.0 | CS520×760 | 0pcs |
| 21.00 m Beam(side) | 3 sets | 3.00 m | 50×4.0 | CS520×760 | 18pcs |
| 2.00 m | 50×4.0 | CS520×760 | 0pcs |
| 1.00 m | 50×4.0 | CS520×760 | 9pcs |
| 11.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS389×389 | 12pcs |
| 2.00 m | 50×3.0 | CS389×389 | 4pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| beam cube | 6 faces | CS520×760 | 6pcs |
| Frame Tower | Spigot Sleeve Block L | 4pcs |
| Steel Base L | 4pcs |
| Top Section L | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 4 sets | 2.10 m | 50×3.0 | CS389×389 | 4pcs |
| 21.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS389×389 | 6pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 3pcs |
| 10.70 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS389×389 | 12pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.70 m | 50×3.0 | CS389×389 | 4pcs |
| 10.70 m Ladder truss | 20 sets | 3.00 m | 50×3.0 | CL40,389*50 | 60pcs |
| 2.00 m | 50×3.0 | CL40,389*50 | 0pcs |
| 1.70 m | 50×3.0 | CL40,389*50 | 20pcs |
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS389×389 | 2pcs |
| 5 | roof conner 5 ways, use for roof beam truss | CS389×389 | 2pcs |
| 1 | Connect plate with clamp | CS389×389 | 4pcs |
| Single clamp | 40pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 622.86 | 1pcs |
1 wing list item as follow
2 wings packing volume: 36cbm
packing weight:4000kg
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 6.00 m Beam(front) | 2 sets | 3.00 m | 50×4.0 | CS520×760 | 4pcs |
| 2.00 m | 50×4.0 | CS520×760 | 0pcs |
| 1.00 m | 50×4.0 | CS520×760 | 0pcs |
| 7.00 m Beam(side) | 3 sets | 3.00 m | 50×4.0 | CS520×760 | 6pcs |
| 2.00 m | 50×4.0 | CS520×760 | 0pcs |
| 1.00 m | 50×4.0 | CS520×760 | 3pcs |
| 11.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS389×389 | 12pcs |
| 2.00 m | 50×3.0 | CS389×389 | 4pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| beam cube | 6 faces | CS520×760 | 2pcs |
| Frame Tower | Spigot Sleeve Block L | 4pcs |
| Steel Base L | 4pcs |
| Top Section L | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | .60 m | 50×3.0 | CS389×389 | 2pcs |
| 7.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS389×389 | 2pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 1pcs |
| 3.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS389×389 | 0pcs |
| 2.00 m | 50×3.0 | CS389×389 | 4pcs |
| 1.20 m | 50×3.0 | CS389×389 | 4pcs |
| 3.20 m Ladder truss | 6 sets | 3.00 m | 50×3.0 | CL40,389*50 | 0pcs |
| 2.00 m | 50×3.0 | CL40,389*50 | 6pcs |
| 1.20 m | 50×3.0 | CL40,389*50 | 6pcs |
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS389×389 | 2pcs |
| 5 | roof conner 5 ways, use for roof beam truss | CS389×389 | 0pcs |
| 1 | Connect plate with clamp | CS389×389 | 2pcs |
| Single clamp | 12pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 90.16 | 1pcs |
