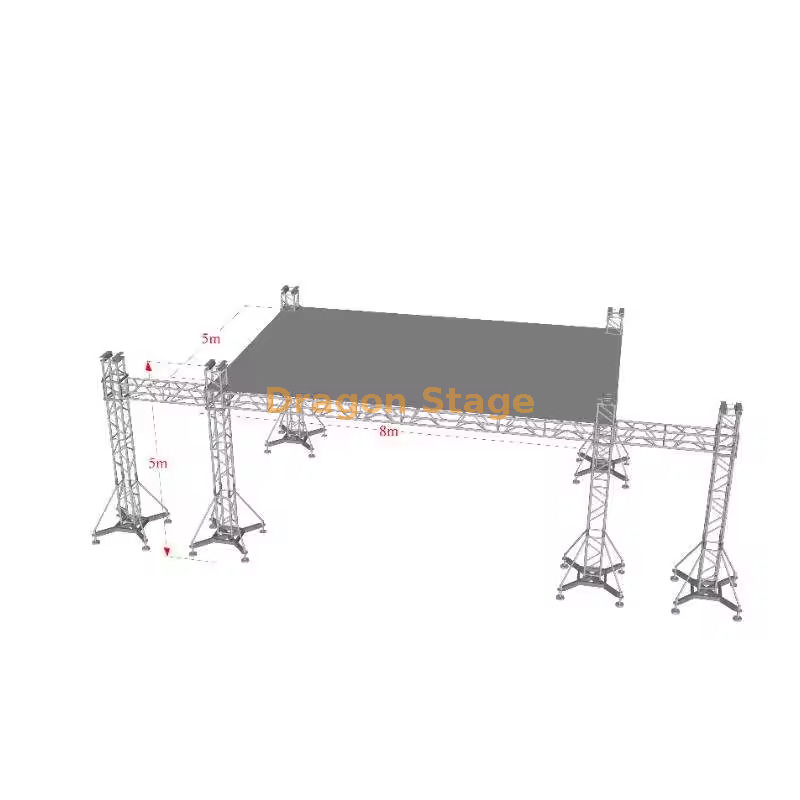

8x5x5m Aluminum Outdoor Stage Truss System with 2m PA Speaker Wings

5 0 Reviews

Discover our robust 8m x 5m aluminum outdoor stage truss system. Standing 5m high with two 2m PA speaker wings, this heavy-duty ground support rig is ideal for medium to large concerts and festivals. Durable and reliable!

Price: ￥ 46500


Availability:



Inquire

Brand:
Dragonstage

Product Description

Elevate your event productions with this professional-grade 8m x 5m aluminum outdoor event truss system. Engineered for maximum stability and performance, this robust ground support structure is the ideal solution for demanding environments such as concerts, festivals, and large corporate events.

8x5x5m Aluminum Outdoor Stage Truss System with 2m PA Speaker Wings

packing weight:1200kg

packing volume:13cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
8.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	2pcs
		1.00 m	50×3.0	CS289×289	0pcs
5.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS289×289	2pcs
		2.00 m	50×3.0	CS289×289	2pcs
		1.00 m	50×3.0	CS289×289	0pcs
5.00 m Ladder truss	4 sets	3.00 m	50×3.0	CL30,289*50	4pcs
		2.00 m	50×3.0	CL30,289*50	4pcs
		1.00 m	50×3.0	CL30,289*50	0pcs
4.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	4pcs
beam cube	6 faces	CS289×289			0pcs
Frame Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
	0.5	roof conner 2 ways, use for roof beam truss		CS289×289	4pcs
		Single clamp			16pcs
		roof canopy material:pvc, Blue Colour or customized.		70	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
2.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS289×289	0pcs
		2.00 m	50×3.0	CS289×289	2pcs
		1.00 m	50×3.0	CS289×289	0pcs
4.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS289×289	2pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	2pcs
Wings Tower	Spigot Sleeve Block S				2pcs
	Steel Base S				2pcs
	Top Section S				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
