13x10x8m Aluminum Concert Stage Roof Truss System with 4m LED Wings

5 0 Reviews

Maximize your outdoor event potential with our robust 13m x 10m aluminum concert stage roof truss system. This heavy-duty structure features an 8m height and two 4m wide integrated wings, specifically designed for large LED screens. Ideal for concerts, festivals, and major events, ensuring a professional and secure setup.

Price: ￥ 87134


Availability:



Inquire

Brand:
Dragonstage

Product Description

Our professional-grade aluminum concert stage roof truss system is engineered for large-scale outdoor events, providing superior strength, stability, and versatility.

Key Features:

Generous Dimensions: The main structure measures an impressive 13 meters in length by 10 meters in depth, with a substantial 8-meter clear height, offering ample space for performers and equipment.
Integrated LED Wings: Includes two dedicated 4-meter-wide side wings, perfectly designed to securely mount large LED display screens for enhanced visual production.
Durable Construction: Built from high-quality, lightweight aluminum trussing that resists corrosion and is suitable for all weather conditions.
Versatile Use: Ideal for major music festivals, large corporate events, touring concerts, and any outdoor production requiring a reliable, high-capacity roofing structure.
Easy Assembly: Designed for efficient setup and teardown, making it a favorite for event production teams needing a portable, professional solution.

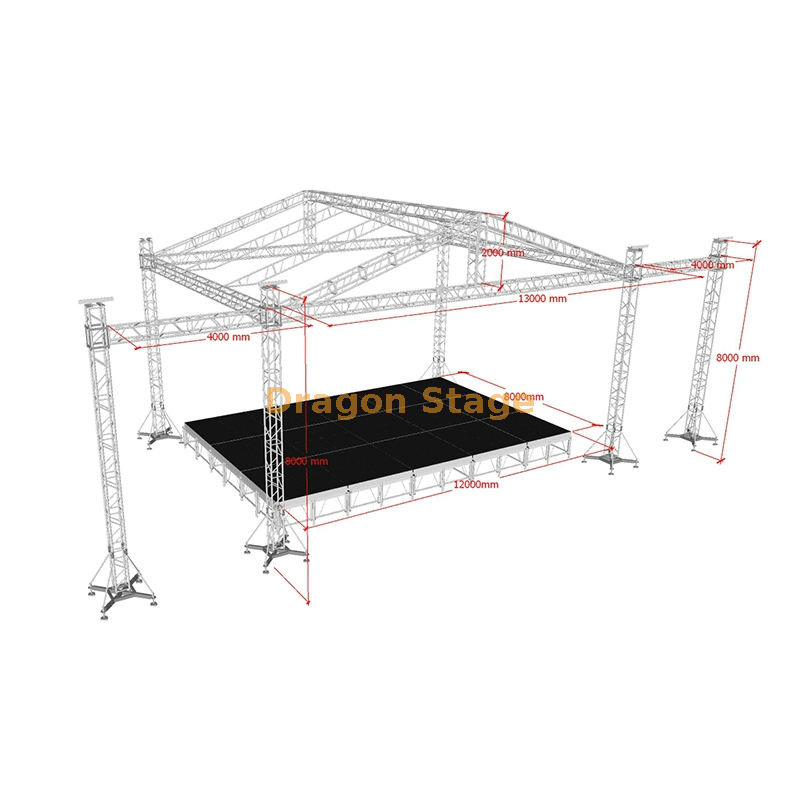

13x10x8m Aluminum Concert Stage Roof Truss System with 4m LED Wings

packing weight:2230kg

packing volume:20cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
13.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS389×389	8pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	2pcs
10.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	6pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	2pcs
7.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	8pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	4pcs
beam cube	6 faces	CS389×389			0pcs
Frame Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	1.30 m	50×3.0	CS289×289	2pcs
10.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	3pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	1pcs
6.70 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	4pcs
		1.70 m	50×3.0	CS289×289	4pcs
6.70 m Ladder truss	8 sets	3.00 m	50×3.0	CL30,289*50	8pcs
		2.00 m	50×3.0	CL30,289*50	8pcs
		1.70 m	50×3.0	CL30,289*50	8pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	0pcs
	1	Connect plate with clamp		CS289×289	2pcs
		Single clamp			16pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		225.06	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
4.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS389×389	0pcs
		2.00 m	50×3.0	CS389×389	4pcs
		1.00 m	50×3.0	CS389×389	0pcs
7.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	2pcs
Wings Tower	Spigot Sleeve Block S				2pcs
	Steel Base S				2pcs
	Top Section S				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
