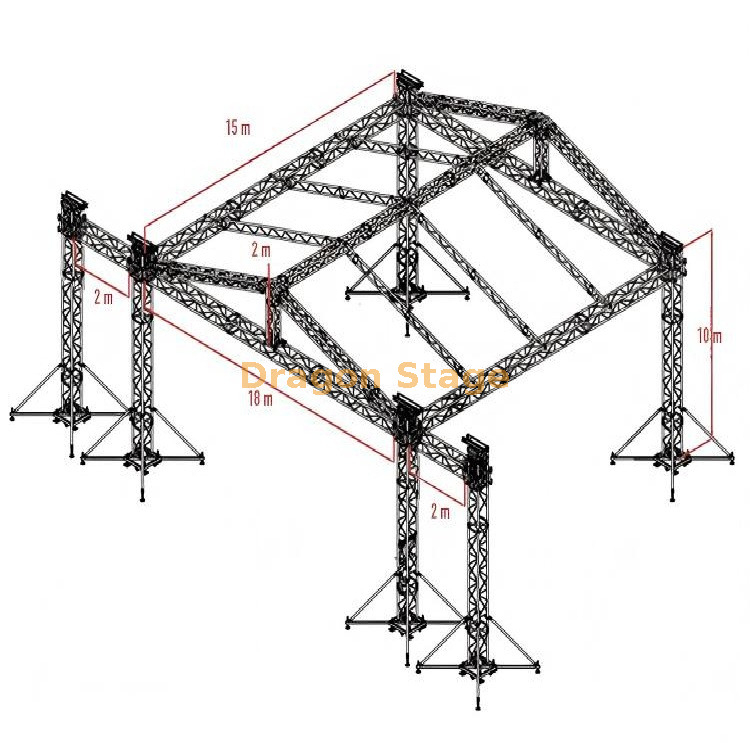

Heavy Duty Aluminum Stage Truss Roof System 18x15x10m | Outdoor Concert Lighting Rig with 2m Speaker Wings

5 0 Reviews

Shop our professional heavy-duty aluminum stage truss roof system. Measuring 18m L x 15m D x 10m H with 2m wide speaker wings. Ideal for large outdoor concerts and events. TUV certified quality.

Price: ￥ 140112


Availability:



Inquire

Brand:
Dragonstage

Product Description

Elevate your large-scale event production with this robust and versatile heavy-duty aluminum stage truss system. Engineered for professional applications, this modular ground support rig provides reliable structural integrity for concerts, festivals, trade shows, and major events. The design includes dedicated 2-meter wide wings specifically for hanging speaker arrays.Key Specifications:

Total Dimensions: 18m (Length) x 15m (Depth) x 10m (Height)
Speaker Wings: Two 2m wide extensions for audio equipment
Material: High-strength, corrosion-resistant 6061Aluminum Alloy
Certification: TUV certified for safety and quality assurance

Heavy Duty Aluminum Stage Truss Roof System 18x15x10m Outdoor Concert Event Lighting Rig

packing weight:3350kg

packing volume: 40cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
18.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS500×600	12pcs
		2.00 m	50×3.0	CS500×600	0pcs
		1.00 m	50×3.0	CS500×600	0pcs
15.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS500×600	10pcs
		2.00 m	50×3.0	CS500×600	0pcs
		1.00 m	50×3.0	CS500×600	0pcs
9.00 m Pillar	4 sets	3.00 m	50×3.0	CS389×389	12pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
beam cube	6 faces	CS500×600			0pcs
Frame Tower	Spigot Sleeve Block M				4pcs
	Steel Base M				4pcs
	Top Section M				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	1.80 m	50×3.0	CS289×289	2pcs
15.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	5pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
9.20 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	8pcs
		2.00 m	50×3.0	CS289×289	4pcs
		1.20 m	50×3.0	CS289×289	4pcs
9.20 m Ladder truss	14 sets	3.00 m	50×3.0	CL30,289*50	28pcs
		2.00 m	50×3.0	CL30,289*50	14pcs
		1.20 m	50×3.0	CL30,289*50	14pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	0pcs
	1	Connect plate with clamp		CS289×289	2pcs
		Single clamp			28pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		412.56	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
2.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS500×600	0pcs
		2.00 m	50×3.0	CS500×600	2pcs
		1.00 m	50×3.0	CS500×600	0pcs
9.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS389×389	6pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
Wings Tower	Spigot Sleeve Block M				2pcs
	Steel Base M				2pcs
	Top Section M				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
