Here is a product description for a custom aluminum portable stage truss system sized at 60x50x33 ft (approx. 18m x 15m x 10m):

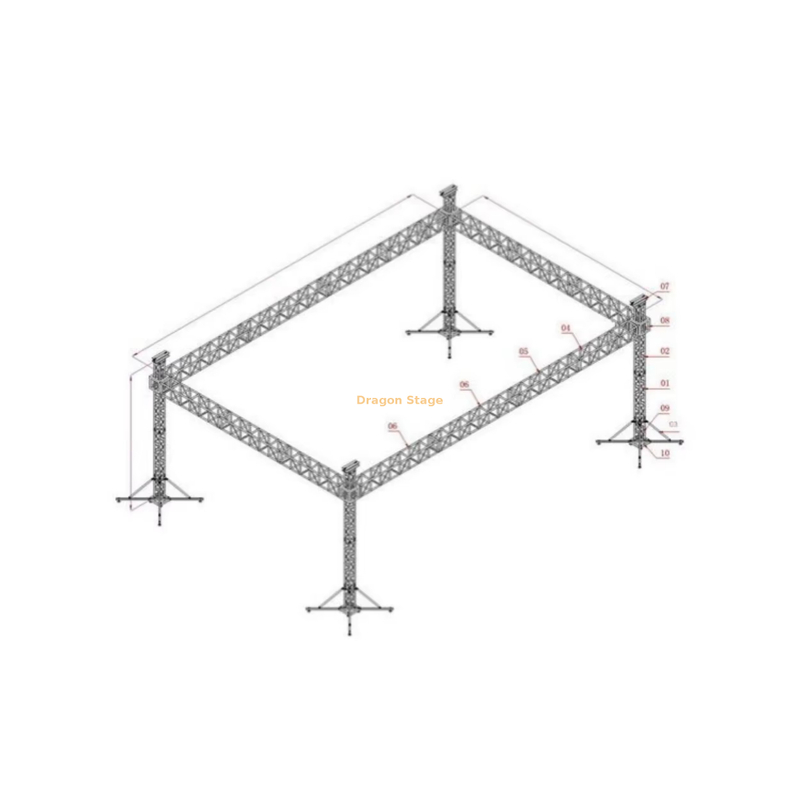

High-Strength Custom Aluminum Portable Stage Truss System (60x50x33 Ft)
This professional-grade, modular aluminum truss system is engineered for large-scale indoor and outdoor events, offering superior strength, durability, and a clean, modern aesthetic. Designed for rapid assembly and versatility, it provides a robust ground support structure for rigging heavy lighting systems, large LED video walls, speaker arrays, and various production elements.
Specifications (Approximate for 60x50x33 ft / 18m x 15m x 10m System):
Dimensions (L x W x H): 60 ft x 50 ft x 33 ft (Customizable)
Material: Aluminum Alloy 6061-T6
Structure Type: Modular Ground Support System (Square Truss)
Finish: Polished aluminum (standard, other colors available)
This truss system is a reliable and professional solution designed to elevate any event with its structural integrity and sleek appearance.
packing weight: 1650kg
packing volume: 20cbm
| Item | Specification(squre truss) | Qty |
| length(M) | main tube(MM) | size(MM) |
| Beam | 3 | 50×3.0 | CS500×600 | 22 pcs |
| 2 | 50×3.0 | CS500×600 | 0pcs |
| 1 | 50×3.0 | CS500×600 | 0pcs |
| Pillar | 3 | 50×3.0 | CS350×350 | 12 pcs |
| 2 | 50×3.0 | CS350×350 | 0pcs |
| 1 | 50×3.0 | CS350×350 | 0pcs |
| Tower | Spigot Sleeve Block M | 4 pcs |
| Steel Base M | 4 pcs |
| Top Section M | 4 pcs |
| Manual hoist,BA05 2Tons | 4 pcs |
| Spigot Hinge Section,Height 1m | 4 pcs |
| Fibre sling,BA04,2 tons 3m | 4 pcs |
| Long outrigger | 16 pcs |
| Truss Accessory | Conical coupler & Safrty clip & pin | whole
set |
