Elevate your next large-scale production with this robust and versatile professional outdoor event lighting truss structure. Designed specifically for concerts, festivals, and major corporate events, this system provides a secure and impressive framework for all your lighting, sound, and visual equipment.
Key Features:

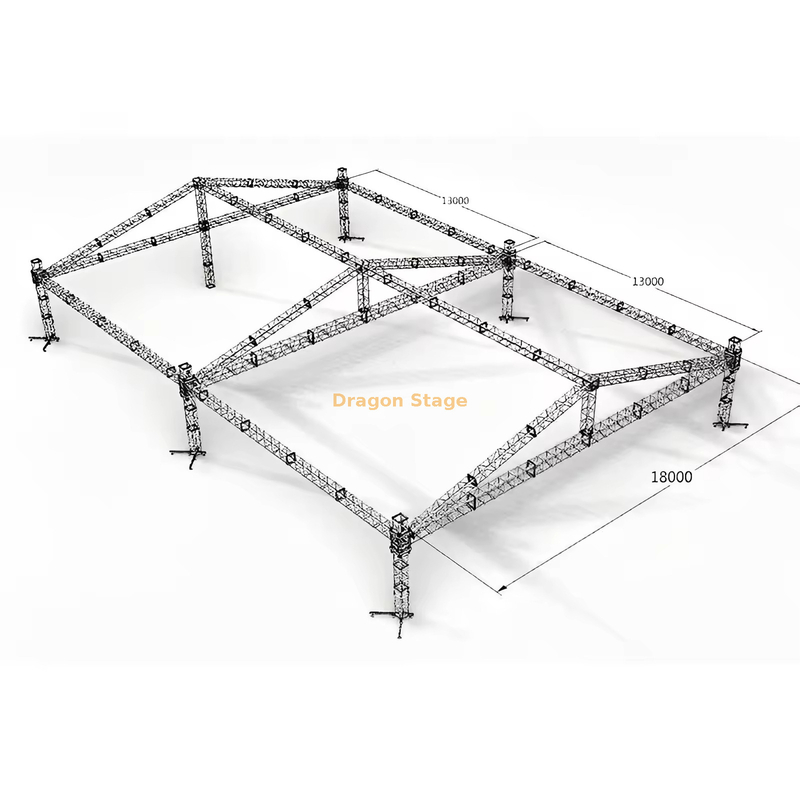

Massive Dimensions: Impressive 18m length, 26m depth, and 5m height create an expansive performance area.
Premium Material: Constructed from high-strength, durable aluminum for maximum load capacity and longevity.
Weather-Resistant: Ideal for outdoor use, providing a reliable and safe roof truss system regardless of weather conditions.
Easy Assembly: Features a user-friendly spigot connection system for quick and efficient setup and breakdown.
Versatile Application: Perfect as a stage lighting truss or a full stage canopy structure for any major event.
packing weight: 4190kg
packing volume: 40cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 18.00 m Beam(front) | 3 sets | 3.00 m | 50×3.0 | CS500×600 | 18pcs |
| 2.00 m | 50×3.0 | CS500×600 | 0pcs |
| 1.00 m | 50×3.0 | CS500×600 | 0pcs |
| 26.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS500×600 | 16pcs |
| 2.00 m | 50×3.0 | CS500×600 | 0pcs |
| 1.00 m | 50×3.0 | CS500×600 | 4pcs |
| 4.00 m Pillar | 6 sets | 3.00 m | 50×3.0 | CS389×389 | 6pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 6pcs |
| beam cube | 6 faces | CS500×600 | 0pcs |
| Frame Tower | Spigot Sleeve Block M | 6pcs |
| Steel Base M | 6pcs |
| Top Section M | 6pcs |
| Manual hoist,BA05 2Tons | 6pcs |
| Spigot Hinge Section,Height 1m | 6pcs |
| Fibre sling,BA04,2 tons 3m | 6pcs |
| Long outrigger | 24pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 3 sets | 1.80 m | 50×3.0 | CS289×289 | 3pcs |
| 26.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| 9.20 m Oblique Beam | 6 sets | 3.00 m | 50×3.0 | CS289×289 | 12pcs |
| 2.00 m | 50×3.0 | CS289×289 | 6pcs |
| 1.20 m | 50×3.0 | CS289×289 | 6pcs |
| 9.20 m Ladder truss | 22 sets | 3.00 m | 50×3.0 | CL30,289*50 | 44pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 22pcs |
| 1.20 m | 50×3.0 | CL30,289*50 | 22pcs |
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| 5 | roof conner 5 ways, use for roof beam truss | CS289×289 | 1pcs |
| 1 | Connect plate with clamp | CS289×289 | 3pcs |
| Single clamp | 44pcs |
| Double clamp | 12pcs |
| roof canopy material:pvc, Blue Colour or customized. | 641.36 | 1pcs |
