A Complete Overview of Temporary Event Structures, Technical Systems and Safety Engineering
Large stadium concerts are not simply built around a stage. Behind every successful performance is a complex temporary engineering system that combines structural design, modular construction, technical production and operational planning.
The 2026 Guangzhou Pearl Beer Festival Music Festival provides a real-world example of how a large outdoor concert environment is created inside a stadium. The project included a main stage structure, FOH control area, relay speaker towers, LED screen support structures, temporary walkways, backstage facilities and multiple safety management systems.
This article provides an overview of the complete concert structure and connects each engineering topic to detailed technical analysis.
For a deeper understanding of individual systems, explore the related engineering articles linked throughout this case study.
Project Overview
Project Name: 2026 Guangzhou Pearl Beer Festival Music Festival
Construction Period: July 10 – July 21, 2026
Performance Date: July 19, 2026
Project Type: Large Outdoor Stadium Concert Structure
Engineering Scope Included:
Main concert stage
Stage roof structure

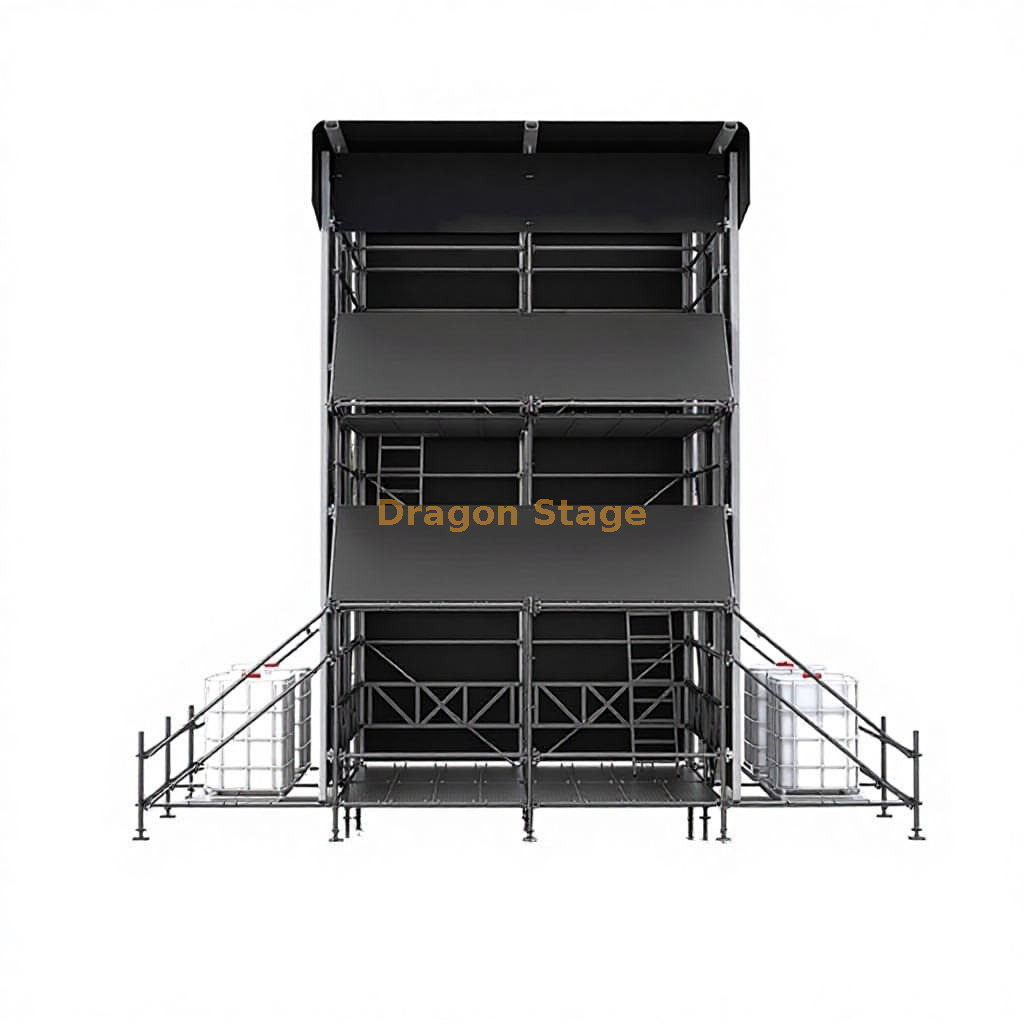

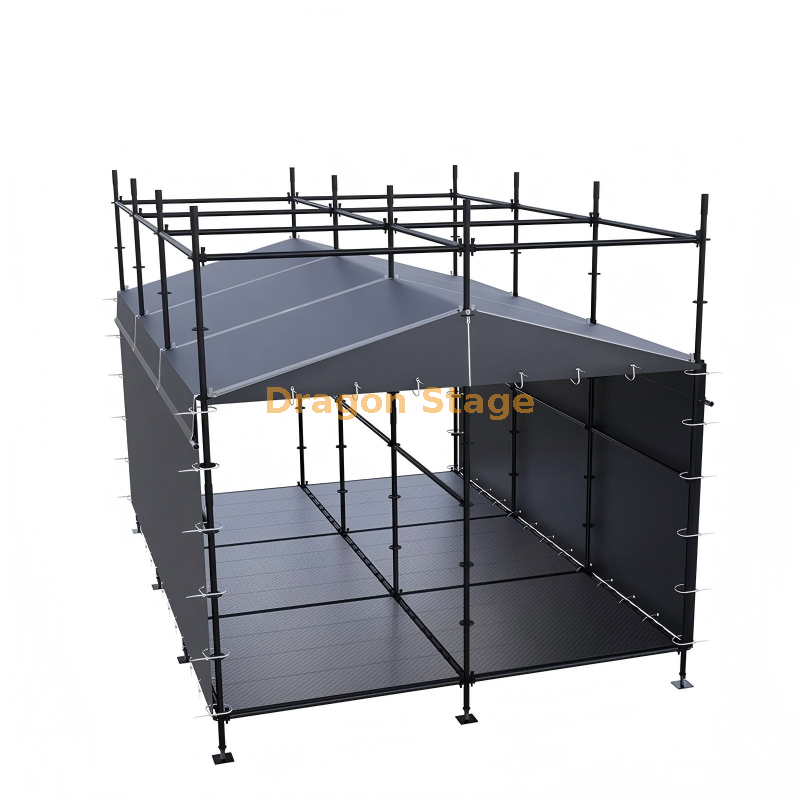

FOH control structure
Relay speaker towers
LED screen support systems
Ringlock temporary structures
Walkway stage system
Backstage facilities
Temporary protection and safety systems
Unlike permanent buildings, concert structures must be designed, installed, operated and removed within a limited period while supporting large technical loads and adapting to changing outdoor conditions.
This makes temporary event structures a unique engineering discipline.
Understanding the Overall Layout of a Stadium Concert Structure
A large stadium concert is organized as a complete system rather than a single stage.
The main functional areas usually include:
Main Stage
FOH (Front of House)
Relay Speaker Towers
Audience Area
Backstage and Supporting Facilities
Technical Operation Areas
Each area has a different engineering purpose.
The main stage provides the performance platform and technical support.
The FOH acts as the central control position for audio, lighting, video and communication.
Relay speaker towers extend sound coverage throughout the venue.
Backstage and service areas support artist preparation, equipment operation and event logistics.
A detailed explanation of stadium concert layouts can be found in:
The main stage is the central structure of the entire concert environment.
It integrates:
Supporting structures
Roof systems
Lighting grids
Rigging points
LED screens
Audio systems
Performance platforms
The construction of a large concert stage requires careful coordination between structural stability, installation sequence and technical requirements.
The main stage construction process is explained in detail in:
