Introduction
In structural applications such as stage systems and truss structures, material data is often misunderstood.
Many published values refer to aluminum sheet or plate, but in real structural systems, components are made from aluminum extrusion profiles.
Using incorrect material data can lead to errors in load calculation, structural design, and ultimately safety performance.
To ensure accuracy, material selection must always be aligned with real applications and verified through stage load calculation.
Mechanical Properties Comparison: Sheet vs Extrusion
6061-T6 Aluminum
Property | Sheet / Plate | Extrusion Profile |
|---|
Tensile Strength (Rm) | ≥ 290 MPa | ≈ 260 MPa |
Yield Strength (Rp0.2) | ≥ 240 MPa | ≈ 240 MPa |
Elongation | 4% – 10% | 7% – 10% |
Application | Panels / Plates | Structural Profiles |
6082-T6 Aluminum
Property | Sheet / Plate | Extrusion Profile |
|---|
Tensile Strength (Rm) | ≥ 310 MPa | 290 – 310 MPa |
Yield Strength (Rp0.2) | ≥ 260 MPa | 250 – 260 MPa |
Elongation | 4% – 9% | 6% – 10% |
Application | Plates | Structural Profiles |
Key Observation
At first glance, the values appear similar.
However:
Sheet data is defined for surface applications
Extrusion data is defined for structural load-bearing use
Differences become critical when applied in real engineering
This directly affects results such as how much weight a stage can hold.
Engineering Difference: Why Sheet Data Cannot Be Used for Structures
The key issue is not the numbers — it is the application context.
Load Behavior
Structural Role
Design Parameters
Extrusion-based design considers:
section geometry
load distribution
connection behavior
Sheet data does not include these factors.
Therefore:
Sheet data is not suitable for structural load calculation.
Impact on Load Calculation
Using incorrect material data affects:
allowable load
safety factors
deformation prediction
For example:
This is why calculations must be based on stage load calculation guide.
Application in Stage and Truss Systems

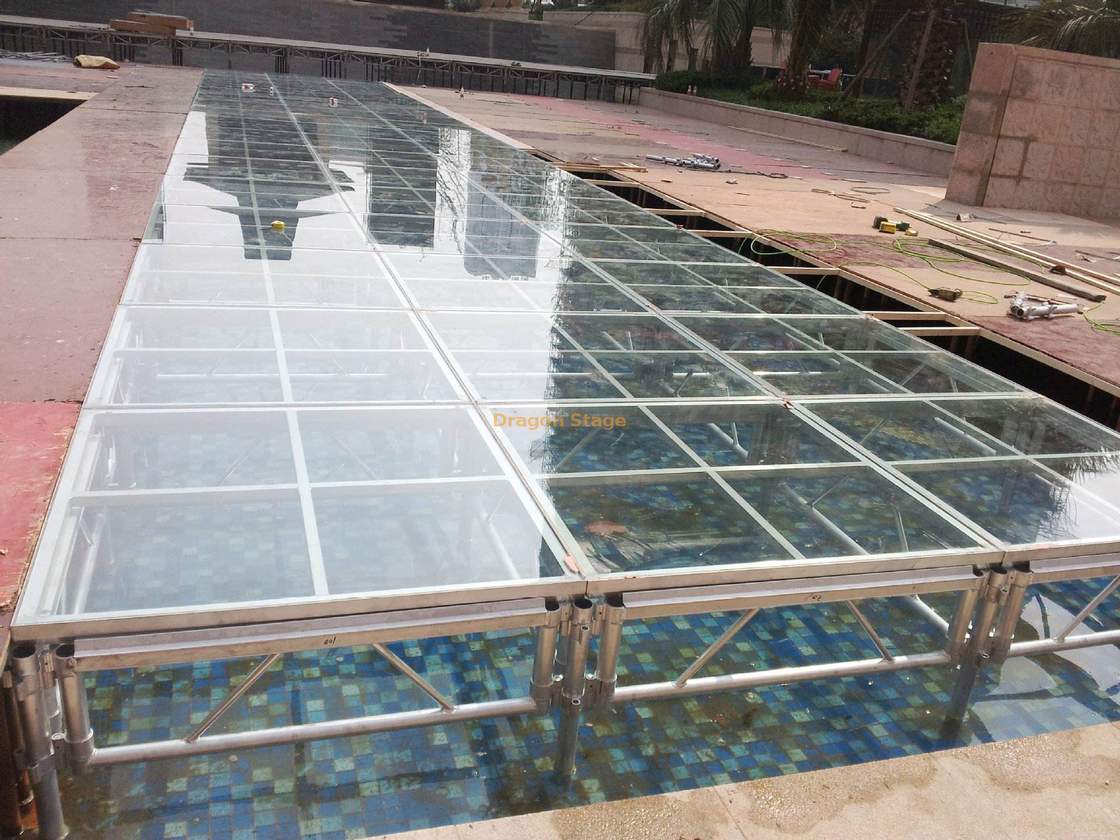

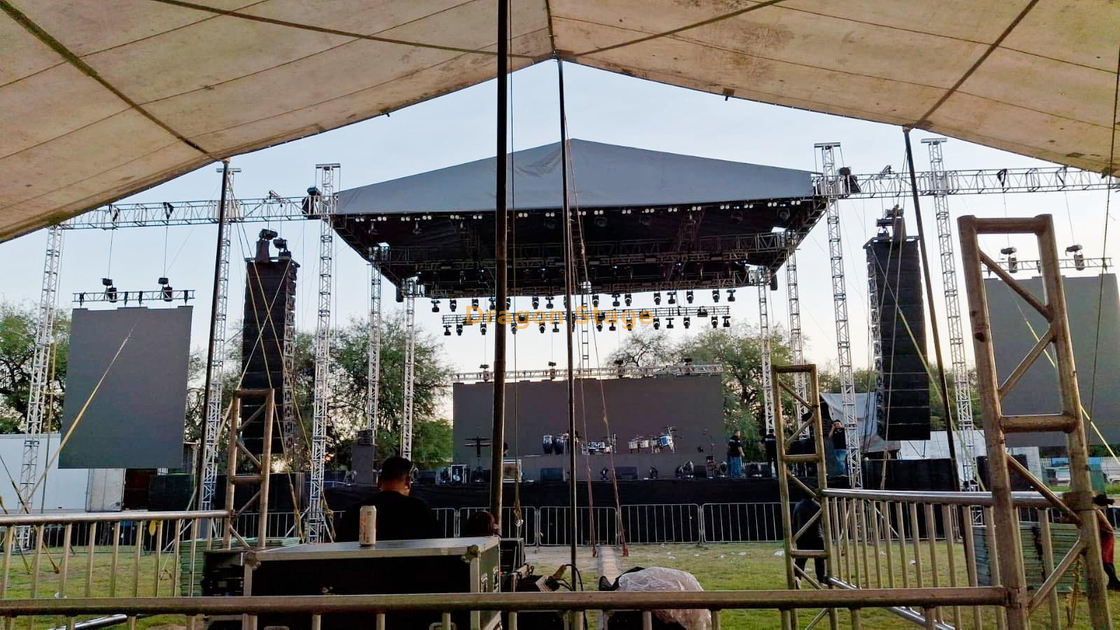

Real structural systems use extrusion profiles:
In these systems:
Engineering Recommendation
From an engineering perspective:
Always identify material type before using data
Use extrusion profile properties for structural design
Avoid applying sheet data in load calculations
Correct process:
identify material form (sheet vs extrusion)
select correct mechanical properties
verify through load analysis for modular stage systems
Connection to Material Selection
Correct data is essential for:
Because:
Incorrect input leads to incorrect engineering conclusions.
Conclusion
The difference between aluminum sheet and extrusion is fundamental in structural engineering.
Accurate engineering depends on:
FAQ
Can sheet aluminum data be used for structural design?
No. Structural systems require extrusion profile data for accurate stage load calculation.
Why are sheet and extrusion properties different?
Because they are produced differently and used in different structural conditions.
What happens if incorrect data is used?
It can lead to incorrect calculation and potential safety risks.
Which data should be used for truss systems?
Extrusion profile data, because truss systems are structural components.
How to ensure correct engineering decisions?
By using proper material data and verifying through stage load calculation guide.
