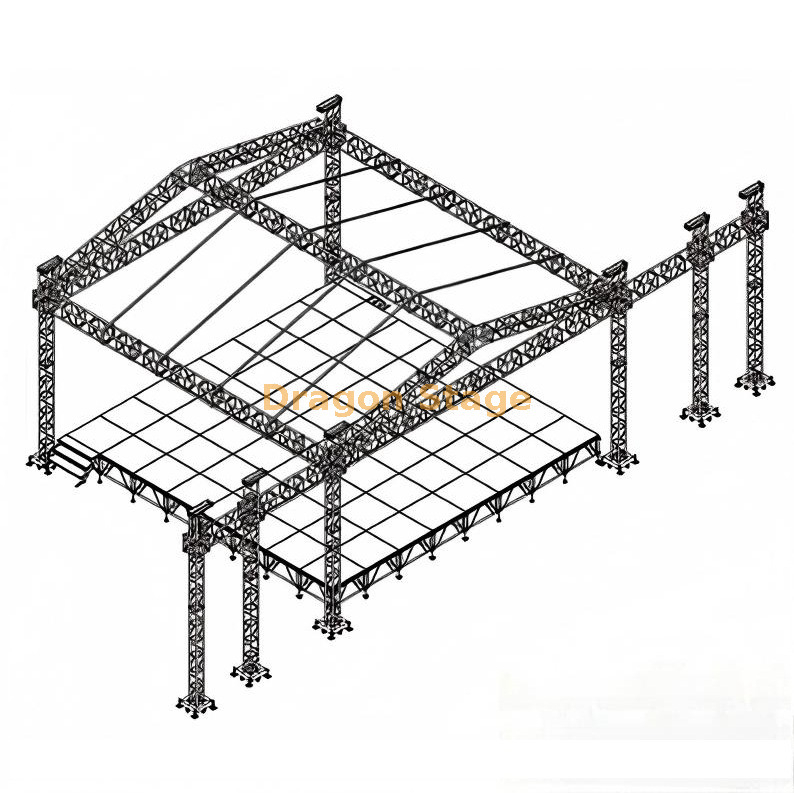

What is the Live Music Stage Truss System with Lighting and LED Display – 8x8x8m?
It is a versatile, all-in-one aluminum stage truss system designed specifically for live music performances. The 8m × 8m × 8m cube-style structure offers ample space for professional lighting, audio equipment, and LED displays, delivering a clean, modern look with excellent rigging flexibility for bands and DJs.
Why Choose This Live Music Stage Truss System?
✅ Compact 8m × 8m × 8m stage size ✅ Integrated support for lighting, speakers & LED display ✅ High-strength aluminum alloy construction ✅ Fast modular assembly and easy transport ✅ Ideal for live music, bands, clubs & festivals
packing weight: 1900kg
packing volume: 14cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 8.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs |
| 2.00 m | 50×3.0 | CS389×389 | 2pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 8.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs |
| 2.00 m | 50×3.0 | CS389×389 | 2pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 7.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 4pcs |
| beam cube | Spigot cube 389x389 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | .80 m | 50×3.0 | CS289×289 | 2pcs |
| 8.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 1pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 4.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.20 m | 50×3.0 | CS289×289 | 4pcs |
| 4.20 m Ladder truss | 6 sets | 3.00 m | 50×3.0 | CL30,289*50 | 6pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 0pcs |
| 1.20 m | 50×3.0 | CL30,289*50 | 6pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| Connect plate with clamp | 2pcs |
| Single clamp | 12pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 124.96 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 6.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 2pcs |
| 2.00 m | 50×3.0 | CS389×389 | 2pcs |
| 1.00 m | 50×3.0 | CS389×389 | 2pcs |
| 7.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| Wings Tower | Spigot Sleeve Block S | 2pcs |
| Steel Base S | 2pcs |
| Top Section S | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
packing weight:1400kg
packing volume:9cbm
| Item | Specification | Quantity |
| Aluminium assembly stage | topping:1x2m | wooden | 21 pcs |
| 1m stage brace | 28 pcs |
| 2m stage brace | 24 pcs |
| stand with extendable tube | 32 pcs |
| Stage adjustable base | 32 pcs |
| Stage Stair | wooden topping | total | 7 | steps | 2 pcs |
This professional
Live Music Stage Truss System is a heavy-duty, integrated solution designed for high-impact performances and large-scale events. Combining structural integrity with modular flexibility, it provides a comprehensive setup for audio, video, and performance.
Core System Specifications
Main Truss Structure: A massive 8m x 8m x 8m (L x W x H) aluminum cube, offering a high-clearance frame for lighting rigs and overhead effects.
Audio Support: Includes dedicated 2m-wide speaker truss towers designed for secure line array suspension and optimal sound projection.
Visual Integration: Features a specialized 4m-wide LED Display truss section to seamlessly mount high-definition video walls.
Performance Platform
Modular Stage: A total surface area of 6m x 7m composed of easy-to-assemble 2x1m modular decks.
Adjustable Elevation: The stage height is telescopic, ranging from 1.2m to 2m, making it adaptable to various venue sightlines.
Access: Includes a matching stair system for safe and professional artist entry/exit.
Built for
durability and rapid assembly, this system is the ideal foundation for concerts, festivals, and corporate events requiring a professional-grade stage presence.
1. What are the exact dimensions of this live music stage truss?
The system measures 8m × 8m × 8m, providing a well-proportioned stage area with sufficient height for lighting, speakers, and LED displays.
2. Is this truss system suitable for outdoor live music events?
Yes. Its aluminum alloy construction offers good stability and portability, making it suitable for both indoor venues and outdoor music festivals. Learn more in How to Choose Aluminum Truss for Outdoor Events (Safety & Load Guide).
3. How quickly can this 8x8x8m truss system be assembled?
Thanks to the modular design, professional crews can typically complete setup in just a few hours. For practical assembly tips, check How do you assemble and disassemble a lighting truss?.
