What is the Heavy-Duty 12x8m Aluminum Goal Post Truss System for Large LED Video Walls?
It is a strong, purpose-built aluminum goal post truss designed to safely support large LED video walls and screens. With a 12m width and 8m height, it provides ample clearance and structural strength while remaining lightweight and easy to transport and install for professional event productions.
Answer CardWhy Choose This Heavy-Duty Goal Post Truss?
✅ 12m wide × 8m high goal post structure ✅ Heavy-duty aluminum alloy for maximum strength ✅ Designed specifically for large LED video walls ✅ Fast modular assembly and disassembly ✅ Reliable stability for concerts, festivals & exhibitions
packing weight:590kg
packing volume:11cbm
| Item | Specification(squre truss) | Qty |
| length(M) | main tube(MM) | size(MM) |
| Upper Beam | 3 | 50×4.0 | CS520×760 | 4 pcs |
| 2 | 50×4.0 | CS520×760 | pcs |
| 1 | 50×4.0 | CS520×760 | pcs |
| Pillar Support Beam | 2 | 50×3.0 | CS389×389 | 4 pcs |
| Pillar | 3 | 50×3.0 | CS389×389 | 4 pcs |
| 2 | 50×3.0 | CS389×389 | 2 pcs |
| 1 | 50×3.0 | CS389×389 | pcs |
| Tower | Spigot Sleeve Block L | 2 pcs |
| Top Section L | 2 pcs |
| Manual hoist,BA05 2Tons | 2 pcs |
| Spigot Hinge Section,Height 1m | 2 pcs |
| Fibre sling,BA04,2 tons 3m | 2 pcs |
| Diagonal bar | 8 pcs |
| Steel Base | 8 pcs |
| Truss Accessory | Conical coupler & Safrty clip & pin | whole
set |

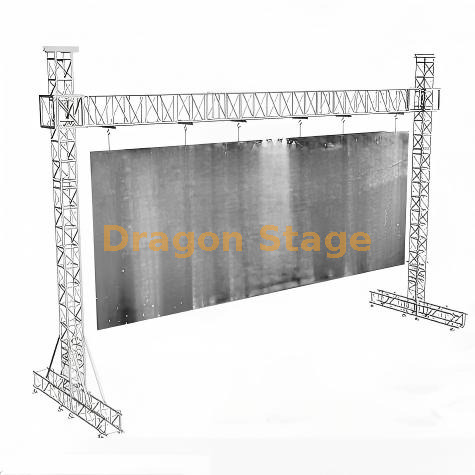

Professional 12m x 8m Aluminum Alloy Goal Post LED Display Truss
Elevate your visual impact with our professional-grade Aluminum Alloy Goal Post Truss System, specifically designed to support large-scale LED video walls. With a massive 12-meter width and 8-meter height capacity, this gantry-style structure provides the stable, secure ground support required for high-definition displays at concerts, festivals, and major corporate events.
Key Features:
Premium Material: Constructed from high-strength, lightweight 6082-T6 aluminum alloy for maximum durability and easy transportation.
Massive Scale: Engineered specifically for large-format displays, accommodating an 8m high LED screen with a broad 12m span.
Stability & Safety: Features a robust ground support base and square spigot truss design for superior load-bearing performance.
Mobile & Versatile: Ideal for touring productions, this system is designed for quick assembly and teardown, making it a favorite for mobile stage applications.
Weather Resistant: The high-grade aluminum finish is resistant to corrosion, ensuring long-term performance for both indoor and outdoor environments.
Applications:
Large-scale Outdoor Concerts and Festivals
Corporate Product Launches
Stadium Scoreboards and Advertising
Trade Show Gantry Displays
Political Rallies and Public Gatherings
1. What are the exact dimensions of this goal post truss system?The system provides a 12m wide × 8m high goal post structure, specifically designed to support large LED video walls with ample clearance and stability.
2. Is this aluminum goal post truss suitable for outdoor events?Yes. Its heavy-duty aluminum alloy construction offers excellent stability and corrosion resistance, making it ideal for outdoor concerts, festivals, and exhibitions. Learn more in How to Choose Aluminum Truss for Outdoor Events (Safety & Load Guide).
3. How do I install LED screens on this goal post truss?The modular design allows flexible and secure LED screen mounting. For practical guidance, see What Are 3 Ways To Install Led Screen and How To Install And Fix LED Screens on Layher Truss.
