12x5x7m Aluminum Stage Truss System

5 0 Reviews

For medium-scale outdoor events, corporate presentations, and regional festivals, the overhead structure must provide a balance of height, strength, and safety. The 12x5x7m Aluminum Stage Truss System by DragonStage is a premier engineering solution, providing 60 square meters of professional covered performance area. Featuring a commanding 7-meter vertical clearance and a high-strength 12-meter clear span, 2m speaker wings on two sides, this system is optimized for technical riders requiring significant rigging volume. Utilizing the high-precision spigot connection system and industrial-grade aluminum, this structure delivers a professional presence with rapid deployment capabilities.

Price: ￥ 34780


Availability:



Inquire

Brand:
Dragonstage

Product Description

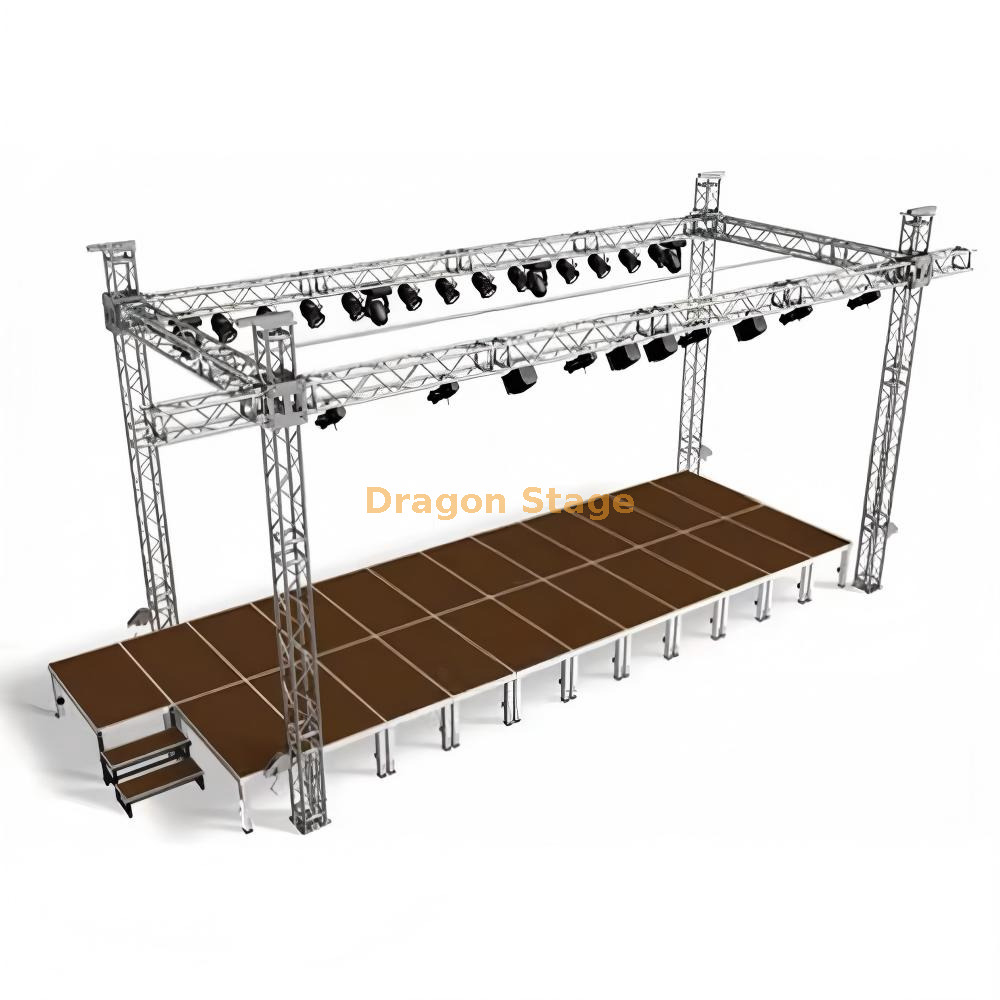

concert truss for professional audio systems

packing weight:1000kg

packing volume:10cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
12.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS389×389	8pcs
		2.00 m	50×3.0	CS389×389	2pcs
		1.00 m	50×3.0	CS389×389	0pcs
5.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	2pcs
		2.00 m	50×3.0	CS389×389	2pcs
		1.00 m	50×3.0	CS389×389	0pcs
6.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	8pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
beam cube	6 faces	CS389×389			0pcs
Frame Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs

A major challenge for 12-meter horizontal spans is managing structural "sag" or deflection under the weight of rigged technical equipment. DragonStage solves this by utilizing 6061-T8 aluminum alloy, which offers significantly higher hardness and yield strength than standard alloys, ensuring the 12-meter beams remain rigid under load. Another critical concern for 7-meter high structures is stability against lateral wind loads.

Our ground support towers feature reinforced bases with extended outriggers and heavy-duty leveling jacks to provide a secure center of gravity on uneven terrain.
