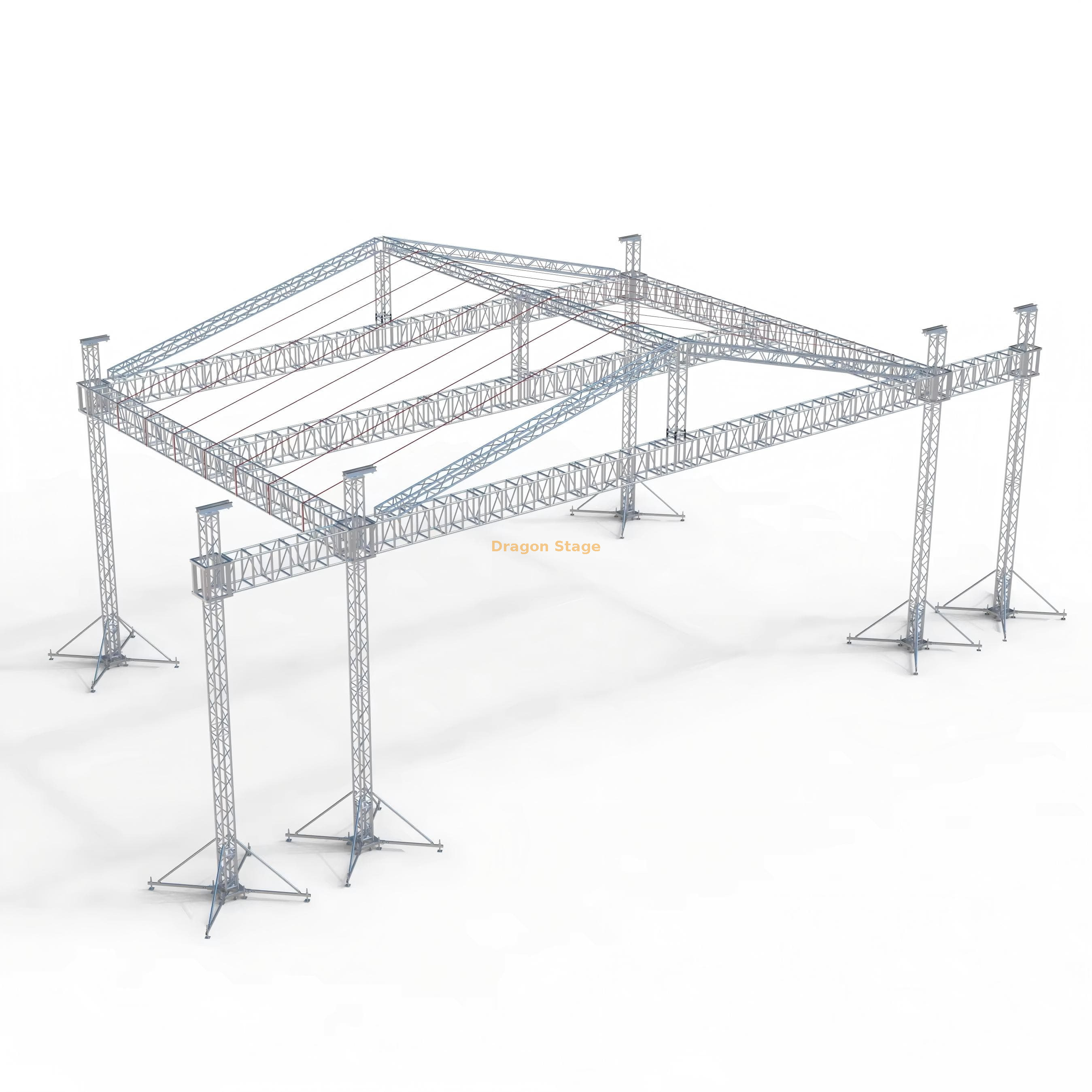

Large Aluminum Event Triangle Rooftop Truss Design for Sale 12x12x10m with 2 Wings Each Wing Is 3m

5 0 Reviews

Large Aluminum Event Triangle Rooftop Truss Design for Sale 12x12x10m with 2 Wings Each Wing Is 6m hanging big led screen and sound system. it adopts 500x600mm spigot truss as beam. 350x350mm spigot truss as pillar.

Price: ￥ 100520 - 118259


Features:	silver truss system black paint system
Availability:



Inquire

Brand:
Dragon Stage

Product Description

packing weight: 2600kg

packing volume: 21cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
12.00 m Beam(front)	3 sets	3.00 m	50×3.0	CS500×600	6pcs
		2.00 m	50×3.0	CS500×600	0pcs
		1.00 m	50×3.0	CS500×600	0pcs
12.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS500×600	2pcs
		2.00 m	50×3.0	CS500×600	2pcs
		1.00 m	50×3.0	CS500×600	0pcs
9.00 m Pillar	4 sets	3.00 m	50x3.0	CS350×350	12pcs
		2.00 m	50x3.0	CS350×350	0pcs
		1.00 m	50x3.0	CS350×350	0pcs
Frame Tower	Spigot Sleeve Block M				4pcs
	Steel Base M				4pcs
	Top Section M				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	1.20 m	50×3.0	CS289×289	3pcs
12.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	1pcs
		2.00 m	50×3.0	CS289×289	1pcs
		1.00 m	50×3.0	CS289×289	0pcs
6.20 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	4pcs
		1.20 m	50×3.0	CS289×289	4pcs
6.20 m Ladder truss	10 sets	3.00 m	50×3.0	CL30,289*50	10pcs
		2.00 m	50×3.0	CL30,289*50	10pcs
		1.20 m	50×3.0	CL30,289*50	10pcs
Roof Components		roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
		roof conner 5 ways, use for roof beam truss		CS289×289	1pcs
		Connect plate with clamp			3pcs
		Single clamp			20pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		238.56	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
6.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS500×600	4pcs
		2.00 m	50×3.0	CS500×600	0pcs
		1.00 m	50×3.0	CS500×600	0pcs
9.00 m Wings Pillar	2 sets	3.00 m	FALSE	CS350×350	6pcs
		2.00 m	FALSE	CS350×350	0pcs
		1.00 m	FALSE	CS350×350	0pcs
Wings Tower	Spigot Sleeve Block M				2pcs
	Steel Base M				2pcs
	Top Section M				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set

Professional 13x11x7m Sea Beach Aluminum Roof Truss System

1. Introduction

Organizing a world-class event in a coastal or beach environment presents unique structural and environmental challenges. The DragonStage 13x11x7m Sea Beach Aluminum Roof Truss is a specialized engineering solution designed specifically for high-salinity and high-wind environments. With a 13-meter front span and an 11-meter depth, this structure provides a sprawling 143 square meters of protected performance space. The 7-meter vertical clearance ensures that line array speakers and complex lighting rigs have the "trim height" necessary for professional-grade sound projection and visual impact against the backdrop of the ocean.

2. Industry Challenges & Professional Solutions

Event production on the coast often faces the dual threat of rapid corrosion and unstable ground conditions. Standard aluminum trussing can suffer from accelerated oxidation in salt air, while the shifting nature of sand makes traditional tower stability difficult to maintain.

DragonStage solves these coastal-specific issues by utilizing high-grade 6082-T6 aluminum alloy, which offers superior natural corrosion resistance compared to lower-grade alternatives. For stability, this 13x11x7m system is designed to interface with specialized wide-footprint steel bases and extended outriggers that distribute the load across a larger surface area—essential for soft beach sand. Furthermore, to combat the high wind gusts typical of shoreline locations, the system utilizes a heavy-duty tower configuration that allows for the rapid removal of the PVC canopy in emergency weather situations, protecting the structural integrity of the rig (Source:https://www.dragontruss.com/Aluminum-Truss-pl3962133.html).

3. Key Features & Operational Benefits

The 13x11x7m beach truss is more than just a frame; it is a specialized production environment built for durability.

Salt-Air Optimized 6082-T6 Aluminum

The primary structure is fabricated from reinforced aluminum tubing with a 50x3.0mm main tube specification. This ensures that the 13m clear span remains rigid under the weight of professional audio-visual equipment. The "Sea Beach" design philosophy extends to the hardware, using high-quality connectors that resist seizing in humid, salty conditions, ensuring the structure remains easy to dismantle even after weeks of exposure (Source:https://www.dragontruss.com/Lighting-Truss-pl3552133.html).

Advanced Ground Support for Coastal Terrain

Stability on a beach is paramount. This system features a sophisticated ground support tower system with manual 2-ton hoists, allowing the roof to be rigged at ground level. This is particularly beneficial in coastal environments where wind speeds can increase at height; rigging lower to the ground increases crew safety. The system's outriggers are adjustable, compensating for the natural slopes and unevenness of beach dunes (Source:https://www.dragontruss.com/Stage-Truss-pl3452133.html).

UV-Stabilized Weather Protection

The included PVC roof canopy is engineered for the extremes. It is UV-stabilized to prevent the fabric from becoming brittle under the intense reflection of sun and sand. The high-tension design ensures that rainwater is shed instantly, preventing the dangerous "pooling" effect that can occur on large spans during tropical coastal downpours.

4. Practical FAQ for Stage Professionals

Question	Answer
Q: What is the total weight of the 13x11x7m system?	The total packing weight is approximately 1750kg, optimized for international sea freight in a consolidated volume.
Q: Can this truss be used for permanent coastal installs?	While designed for events, its 6082-T6 aluminum build is suitable for long-term seasonal use if regular freshwater rinsing of the hardware is performed.
Q: How do you secure the structure on sand?	We recommend a combination of our long outriggers and either heavy concrete ballast or specialized sand-auger anchors.
Q: Does the design cost include structural engineering?	Our pricing includes standard structural load tables; custom site-specific engineering for beach permits can be provided as a value-added service.

5. Strong Call to Action (CTA)

Ensure your coastal event is built on a foundation of safety and specialized engineering. Trust DragonStage to deliver a beach-ready structure that withstands the elements.

Would you like me to generate a custom shipping quote or provide the detailed load-bearing charts for the 13x11x7m sea beach truss?
