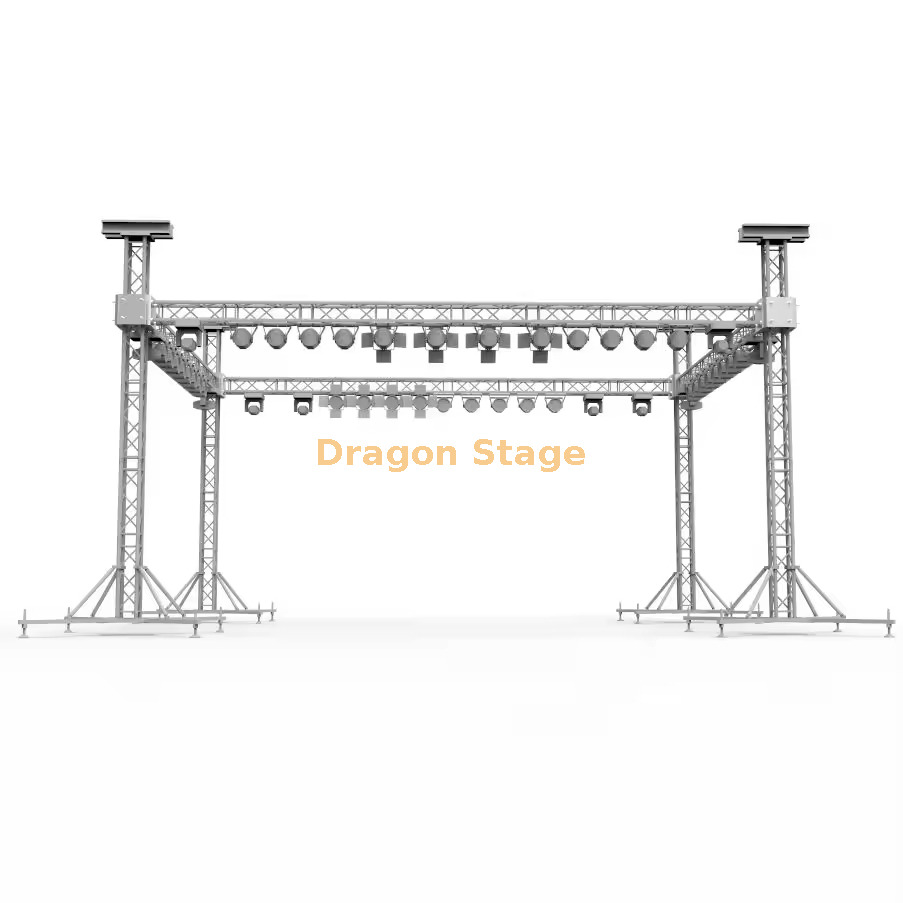

The Aluminum Bolt Truss Rooftop Event 12x12x7m is a professional-grade, high-capacity structural solution designed for large-scale outdoor events, concerts, and festivals. Unlike standard spigot systems, this model utilizes a traditional bolt connection, which is widely recognized in the industry for its extreme reliability and strength during high-demand ground support or rooftop applications
packing weight: 1050kg
packing volume: 12cbm
| Item | Specification(squre truss) | Qty |
| length(M) | main tube(MM) | size(MM) |
| Beam | 3 | 50×3.0 | CS389×389 | 16 pcs |
| 2 | 50×3.0 | CS389×389 | pcs |
| 1 | 50×3.0 | CS389×389 | pcs |
| Pillar | 3 | 50×3.0 | CS289×289 | 8 pcs |
| 2 | 50×3.0 | CS289×289 | pcs |
| 1 | 50×3.0 | CS289×289 | pcs |
| Tower | Spigot Sleeve Block S | 4 pcs |
| Steel Base S | 4 pcs |
| Top Section S | 4 pcs |
| Manual hoist,BA05 2Tons | 4 pcs |
| Spigot Hinge Section,Height 1m | 4 pcs |
| Fibre sling,BA04,2 tons 3m | 4 pcs |
| Long outrigger | 16 pcs |
| Truss Accessory | Conical coupler & Safrty clip & pin | whole
set |
