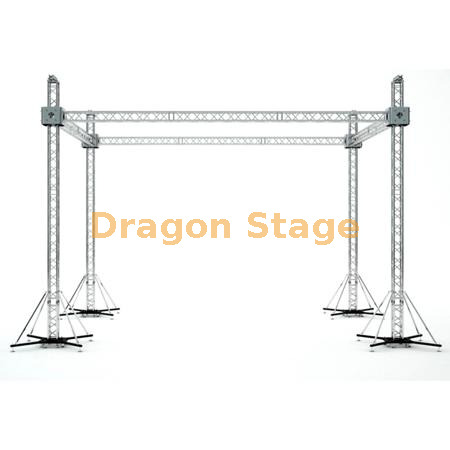

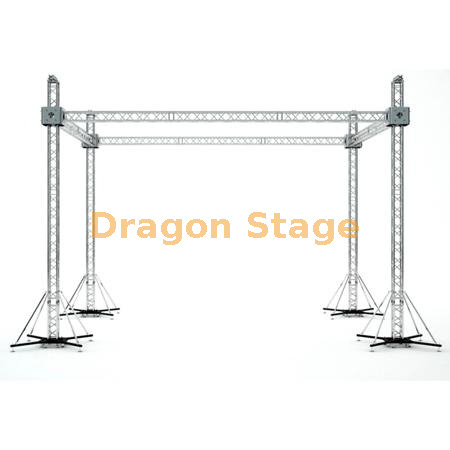

The 12x12x7m Outdoor Event Truss is a monumental, professional-grade aluminum structure designed for main stages at large-scale festivals, major concerts, and international outdoor events. This impressive system provides a vast 144 square meters of stage area and a significant 7-meter overhead clearance, ideal for complex production demands and excellent audience sightlines.
packing weight: 1100kg
packing volume: 11cbm
| Item | Specification(squre truss) | Qty |
| length(M) | main tube(MM) | size(MM) |
| Beam | 3 | 50×3.0 | CS389×389 | 16 pcs |
| 2 | 50×3.0 | CS389×389 | pcs |
| 1 | 50×3.0 | CS389×389 | pcs |
| Pillar | 3 | 50×3.0 | CS289×289 | 8 pcs |
| 2 | 50×3.0 | CS289×289 | pcs |
| 1 | 50×3.0 | CS289×289 | pcs |
| Tower | Spigot Sleeve Block S | 4 pcs |
| Steel Base S | 4 pcs |
| Top Section S | 4 pcs |
| Manual hoist,BA05 2Tons | 4 pcs |
| Spigot Hinge Section,Height 1m | 4 pcs |
| Fibre sling,BA04,2 tons 3m | 4 pcs |
| Long outrigger | 16 pcs |
| Truss Accessory | Conical coupler & Safrty clip & pin | whole
set |
