| Features: | |
|---|---|
Dragon Stage
packing weight: 800kg
packing volume: 5cbm
| Item | Specification | Quantity | |||
| Aluminium assembly stage | topping: 4x8ft (1.22x2.44m) | wooden | 12 pcs | ||
| 1.22m stage brace | 16 pcs | ||||
| 2.44m stage brace | 15 pcs | ||||
| stand with extendable tube | 20 pcs | ||||
| Stage adjustable base | 20 pcs | ||||
| Stage Stair | wooden topping | total | 5 | steps | 2 pcs |
packing weight: 850kg
packing volume: 6.5cbm
| Item | Specification(squre truss) | Qty | |||||
| length(M) | main tube(MM) | size(MM) | |||||
| Beam | 3 | 50×3.0 | CS289×289 | 6 pcs | |||
| 2 | 50×3.0 | CS289×289 | 2 pcs | ||||
| 1 | 50×3.0 | CS289×289 | 2 pcs | ||||
| Pillar | 3 | 50×3.0 | CS289×289 | 4 pcs | |||
| 2 | 50×3.0 | CS289×289 | pcs | ||||
| 1 | 50×3.0 | CS289×289 | 4 pcs | ||||
| Tower | Spigot Sleeve Block S | 4 pcs | |||||
| Steel Base S | 4 pcs | ||||||
| Top Section S | 4 pcs | ||||||
| Manual hoist,BA05 2Tons | 4 pcs | ||||||
| Spigot Hinge Section,Height 1m | 4 pcs | ||||||
| Fibre sling,BA04,2 tons 3m | 4 pcs | ||||||
| Long outrigger | 16 pcs | ||||||
| Truss Accessory | Conical coupler & Safrty clip & pin | whole set | |||||

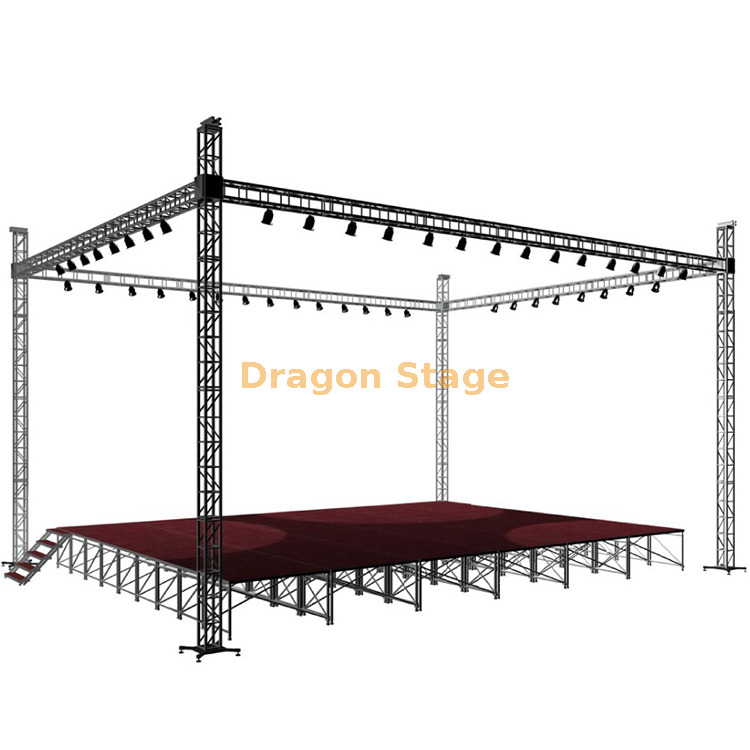

This 7x5x5m Aluminum Lighting Truss System is a professional, modular solution designed for robust outdoor event applications. Constructed from high-strength 6061-T6 aluminum alloy, it offers an excellent strength-to-weight ratio, ensuring durability and resistance to the elements. The system is based on a proven 4-point box truss design (like the TÜV-approved F34 series), featuring 50x3mm main tubes and 20x2mm diagonal braces for significant load capacity. It provides a stable framework to safely hang lighting, audio, and video equipment. Key advantages include easy assembly with conical connectors, full customizability, and certifications (TÜV, CE, SGS) for safety and reliability in demanding outdoor environments
