Portable Non Roof Aluminum Truss System Stage 60x40x26ft

5 0 Reviews

stage roof truss system, truss system for event, Custom Portable truss system

Price: ￥ 58960


Availability:



Inquire

Brand:
Dragon Stage

Product Description

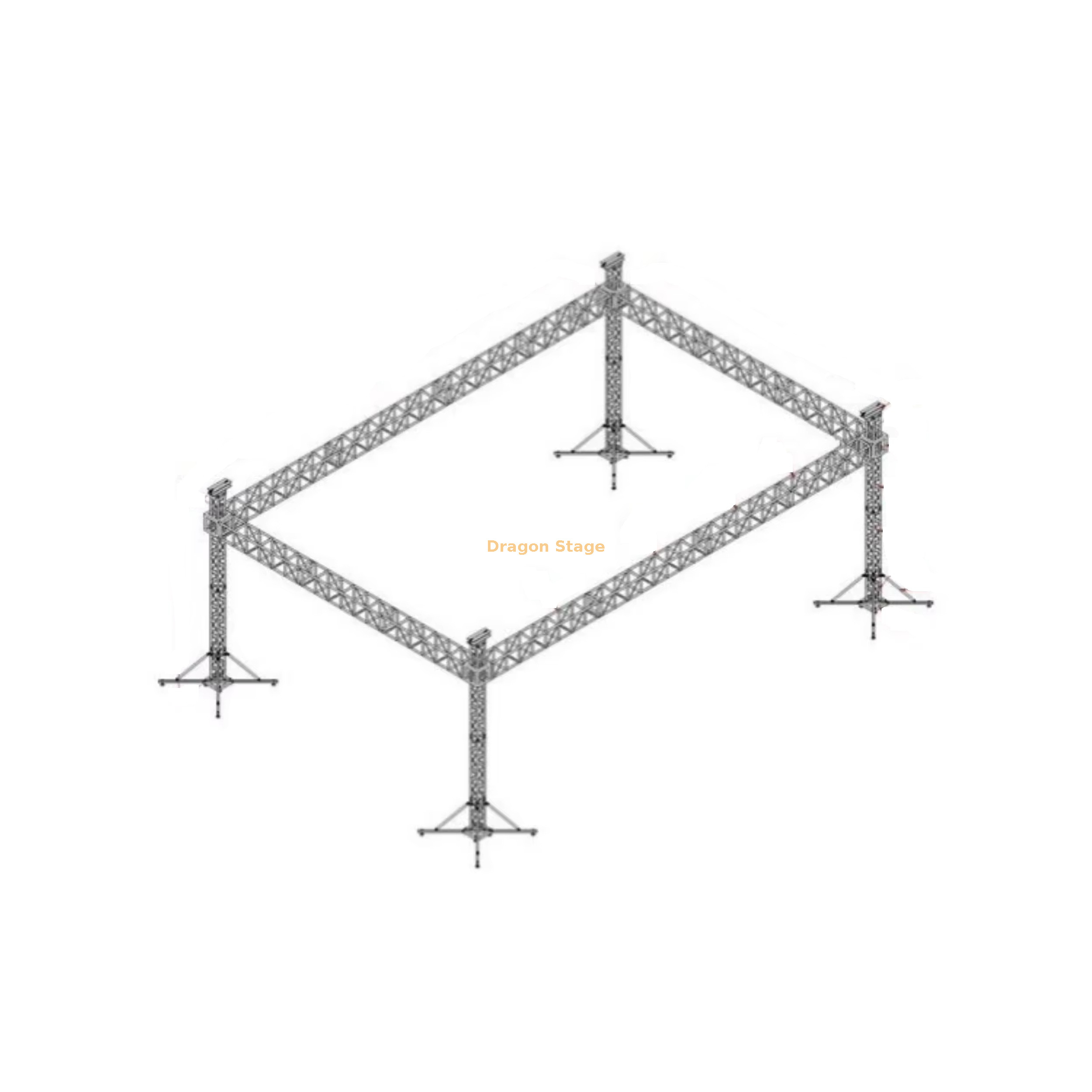

The Portable Non-Roof Aluminum Truss System Stage (60x40x26ft) is a substantial, heavy-duty structural frame designed for major events, concerts, and festival main stages where a permanent roof is either unnecessary or provided by the venue. This custom portable system provides a massive 60x40 foot performance area and a towering 26-foot vertical clearance, offering unparalleled flexibility for large-scale outdoor or indoor productions.

dragonstage outdoor truss system (3)

packing weigt: 1550kg

packing volume: 23cbm

Item	Specification(squre truss)			Qty
	length(M)	main tube(MM)	size(MM)
Beam	3	50×3.0	CS500×600	20 pcs
	2	50×3.0	CS500×600	pcs
	1	50×3.0	CS500×600	pcs
Pillar	3	50×3.0	CS350×350	8 pcs
	2	50×3.0	CS350×350	pcs
	1	50×3.0	CS350×350	4 pcs
Tower	Spigot Sleeve Block M			4 pcs
	Steel Base M			4 pcs
	Top Section M			4 pcs
	Manual hoist,BA05 2Tons			4 pcs
	Spigot Hinge Section,Height 1m			4 pcs
	Fibre sling,BA04,2 tons 3m			4 pcs
	Long outrigger			16 pcs
Truss Accessory	Conical coupler & Safrty clip & pin			whole set
