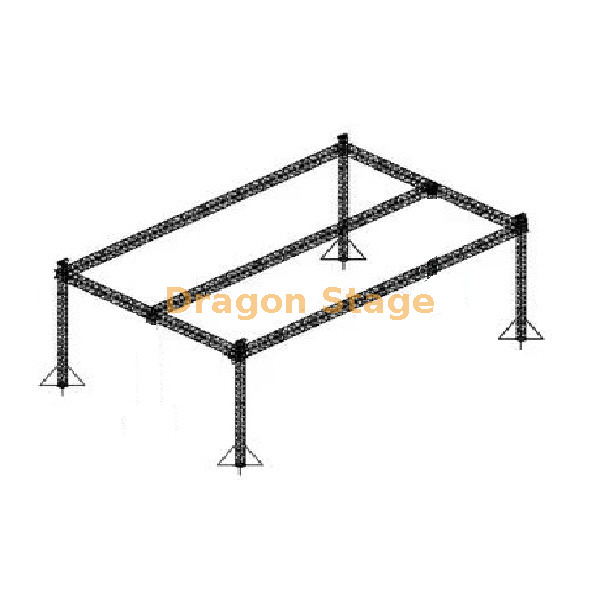

The Aluminum Indian Event Solution Stage Truss Design (100x80x33ft) is a massive, bespoke structural system engineered to be the centerpiece of large-scale Indian events, including weddings, major concerts, and festivals. With an expansive 100ft length, 80ft width, and commanding 33ft height, this solution provides a vast, covered performance area and superior vertical clearance for elaborate production demands.
This design integrates a robust multi-pillar ground support system and an integrated arc or pitched roof structure, offering maximum stability and protection from the elements.
packing weight: 3900kg
packing volume: 62cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 30.00 m Beam(front) | 3 sets | 3.00 m | 50×5.0 | CS680×1010 | 30pcs |
| 2.00 m | 50×5.0 | CS680×1010 | 0pcs |
| 1.00 m | 50×5.0 | CS680×1010 | 3pcs |
| 24.00 m Beam(side) | 2 sets | 3.00 m | 50×5.0 | CS680×1010 | 16pcs |
| 2.00 m | 50×5.0 | CS680×1010 | 0pcs |
| 1.00 m | 50×5.0 | CS680×1010 | 0pcs |
| 9.00 m Pillar | 4 sets | 3.00 m | 50×5.0 | CS520×520 | 12pcs |
| 2.00 m | 50×5.0 | CS520×520 | 0pcs |
| 1.00 m | 50×5.0 | CS520×520 | 0pcs |
| beam cube | Spigot cube 680x1010 | 2pcs |
| Frame Tower | Spigot Sleeve Block L | 4pcs |
| Steel Base L | 4pcs |
| Top Section L | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
