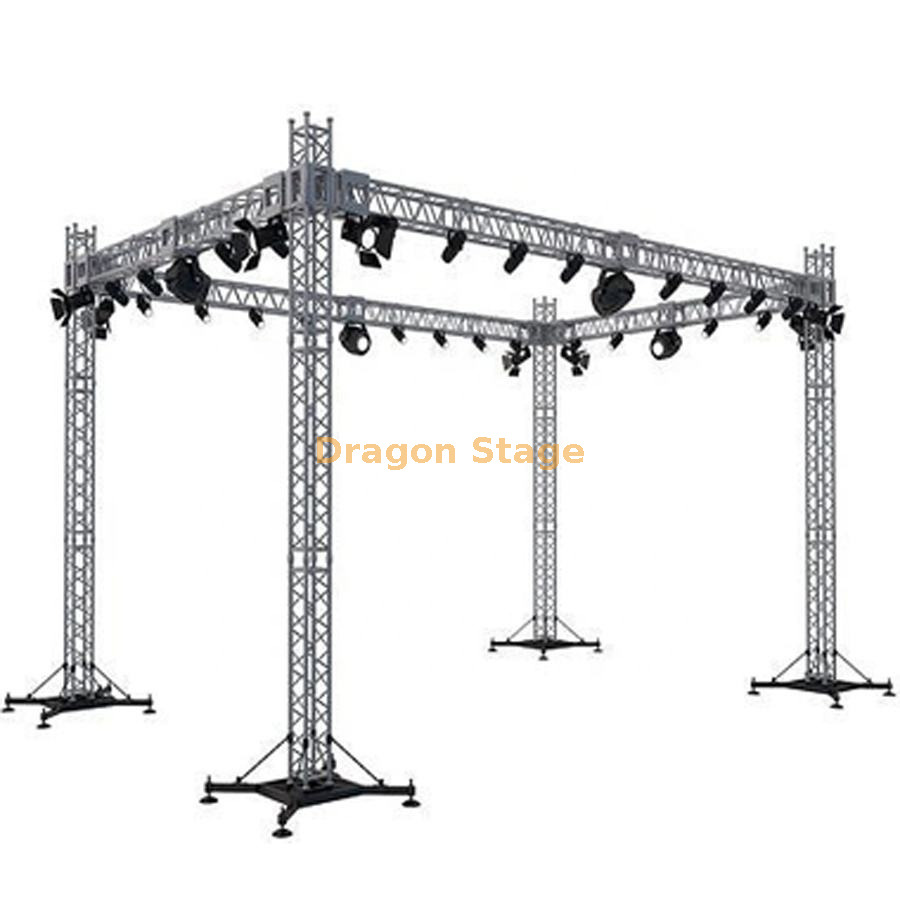

This aluminum lighting truss system is an 8m wide × 6m deep × 7m high ground support structure, built with 290mm spigot truss, designed for professional stage lighting, concerts, and outdoor event rigging requiring high load capacity and structural stability.
packing weight:900kg
packing volume:7cbm
Item | | Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
8.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
2.00 m | 50×3.0 | CS289×289 | 2pcs |
1.00 m | 50×3.0 | CS289×289 | 0pcs |
6.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
2.00 m | 50×3.0 | CS289×289 | 0pcs |
1.00 m | 50×3.0 | CS289×289 | 0pcs |
6.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
2.00 m | 50×3.0 | CS289×289 | 0pcs |
1.00 m | 50×3.0 | CS289×289 | 0pcs |
beam cube | 6 faces | CS289×289 | 0pcs |
Frame Tower | Spigot Sleeve Block S | 4pcs |
Steel Base S | 4pcs |
Top Section S | 4pcs |
Manual hoist,BA05 2Tons | 4pcs |
Spigot Hinge Section,Height 1m | 4pcs |
Fibre sling,BA04,2 tons 3m | 4pcs |
Long outrigger | 16pcs |
This aluminum alloy lighting truss system is a large-scale ground support truss structure engineered for professional event production. With an overall size of 8m span, 6m depth, and 7m height, it provides a stable and elevated framework for lighting fixtures, LED screens, and audio equipment.
Constructed using 290mm spigot truss, this system offers a reliable balance between structural strength and modular flexibility. It belongs to the standard category of lighting truss systems and can be configured within broader truss systems for scalable event setups.
For structural safety, load capacity and span performance are critical. This system follows engineering principles outlined in load analysis for modular stage systems and complies with safety standards and engineering constraints, ensuring safe operation under dynamic loads such as lighting movement and wind forces.
The design adopts modular connection logic based on modular system design, allowing efficient assembly using spigot and pin connections. Installation workflows can be referenced in installation methodology.
This system is particularly suitable for:
Large concert lighting rigs
Outdoor festival stages
Exhibition and event structures
LED screen ground support systems
You can explore full applications in concert & event solutions and event truss systems.
Material performance is another key factor. This system uses certified aluminum alloy, as explained in certified aluminum materials and 6061-T6 vs 6082-T6 aluminum comparison.
For complete staging solutions, this truss system can be integrated with stage platforms to create a unified performance structure.
Product Highlights
Large span: 8m width for professional lighting coverage
Stable depth: 6m structure improves load distribution
Height: 7m for elevated lighting and stage effects
290mm spigot truss: industry-standard modular system
Ground support design: no ceiling rigging required
Suitable for outdoor and heavy-duty applications
Structural Engineering Insight
Compared to smaller truss systems, this 8m ground support structure introduces additional engineering considerations:
Span vs deflection control
Vertical tower stability and base support
Wind load resistance (critical for outdoor events)
Load distribution across horizontal beams
For deeper technical understanding:
These factors directly impact safety and long-term performance.
Application Scenarios
This 8m x 6m x 7m lighting truss system is ideal for:
Concert stage lighting systems
Outdoor music festivals
Exhibition and trade show structures
Large LED screen installations
Touring production setups
More scenarios can be found in lighting truss applications and event stage applications.
FAQ
What size is this truss system?
It is 8m wide × 6m deep × 7m high, designed for large-scale event applications.
What type of truss is used?
The system uses 290mm spigot truss, a widely used standard in event rigging.
Is this suitable for outdoor use?
Yes, it is designed for outdoor events, but proper anchoring and load control must follow safety standards.
Need a large-span lighting truss system or custom configuration?
Browse more in lighting truss products or contact us via contact page for a professional solution.
