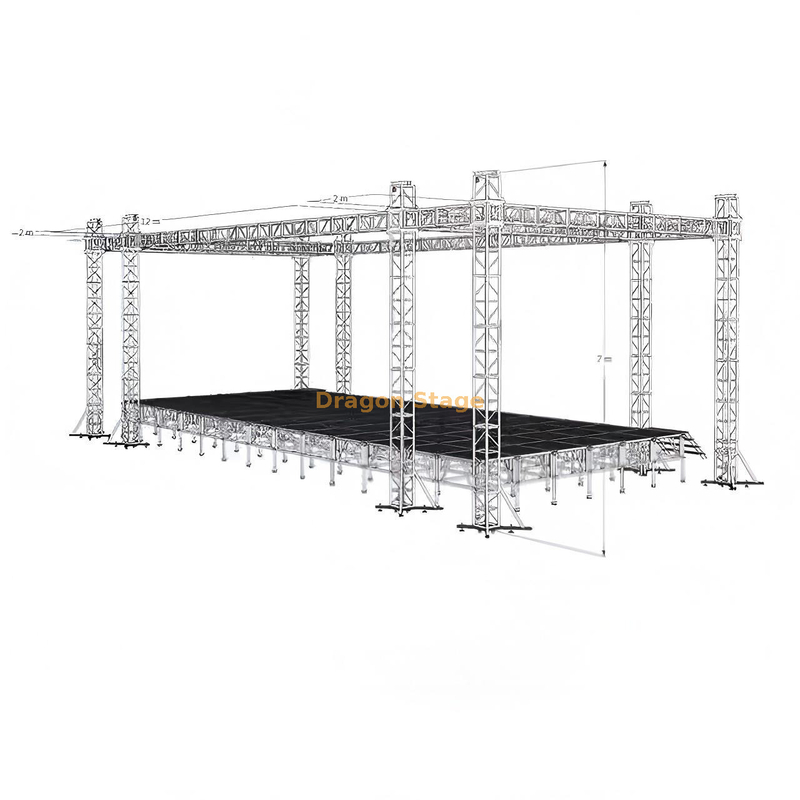

12x8x7m Professional Aluminum Outdoor Event Truss System

5 0 Reviews

Elevate your production with our 12m x 8m aluminum outdoor event truss system. Standing 7m high, this heavy-duty rig features a 6-pillar ground support design and two dedicated 2m wide line array blocks for professional audio suspension. Engineered for high-impact outdoor festivals and concerts requiring maximum structural stability and extensive equipment loading capacity.

Price: ￥ 64480


Availability:



Inquire

Brand:
Dragonstage

Product Description

This Professional 12m x 8m Aluminum Outdoor Event Truss System is an elite structural solution designed for large-format stage presentations and demanding outdoor festival environments. standing at a 7-meter vertical elevation, this system provides a comprehensive and safe environment for complex lighting and audio-visual deployments.

12x8x7m Professional Aluminum Outdoor Event Truss System

packing weight:1930kg

packing volume:18cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
12.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS389×389	8pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
8.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	4pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
6.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	8pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
beam cube	6 faces	CS389×389			0pcs
Frame Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
6.00 m Wings Beam	4 sets	3.00 m	50×3.0	CS389×389	0pcs
		2.00 m	50×3.0	CS389×389	12pcs
		1.00 m	50×3.0	CS389×389	0pcs
6.00 m Wings Pillar	4 sets	3.00 m	50×3.0	CS289×289	8pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
Wings Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
