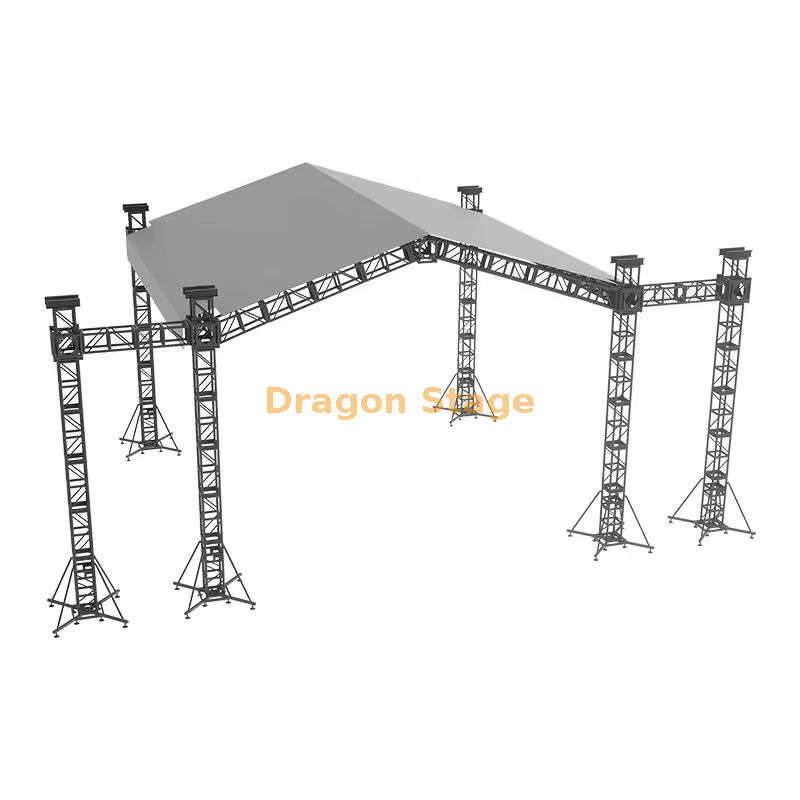

10x8x6m Professional Flat Sunshade Roof System with PA Wings

5 0 Reviews

Professional 10m x 8m Aluminum Flat Roof Truss System - 6m High Event Sunshade Structure with Dual 2m Line Array Speaker Wings

Price: ￥ 59525


Availability:



Inquire

Brand:
Dragonstage

Product Description

Heavy-duty 10m x 8m aluminum flat sunshade roof truss system standing 6m high. Featuring a robust 4-pillar ground support design and dual 2m wide PA wings. Engineered for professional outdoor concerts, festivals, and exhibitions requiring high-capacity audio-visual rigging and sun protection.

10x8x6m Professional Flat Sunshade Roof System with PA Wings

packing weight:1620kg

packing volume:11cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
10.00 m Beam(front)	sets	3.00 m	50×3.0	CS289×289	0pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
8.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	2pcs
		1.00 m	50×3.0	CS289×289	0pcs
5.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	4pcs
		1.00 m	50×3.0	CS289×289	0pcs
beam cube	6 faces	CS289×289			FALSE
Frame Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	sets	1.00 m	50×3.0	CS289×289	0pcs
8.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	2pcs
		2.00 m	50×3.0	CS289×289	1pcs
		1.00 m	50×3.0	CS289×289	0pcs
5.20 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		2.20 m	50×3.0	CS289×289	4pcs
5.20 m Ladder truss	6 sets	3.00 m	50×3.0	CL30,289*50	6pcs
		2.00 m	50×3.0	CL30,289*50	0pcs
		2.20 m	50×3.0	CL30,289*50	6pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	0pcs
	1	Connect plate with clamp		CS289×289	0pcs
		Single clamp			12pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		151.76	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
2.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS289×289	0pcs
		2.00 m	50×3.0	CS289×289	2pcs
		1.00 m	50×3.0	CS289×289	0pcs
5.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS289×289	2pcs
		2.00 m	50×3.0	CS289×289	2pcs
		1.00 m	50×3.0	CS289×289	0pcs
Wings Tower	Spigot Sleeve Block S				2pcs
	Steel Base S				2pcs
	Top Section S				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
