20x12x6m Concert Roof Stage with PA Wings Tower And Led Video Wall Truss

5 0 Reviews

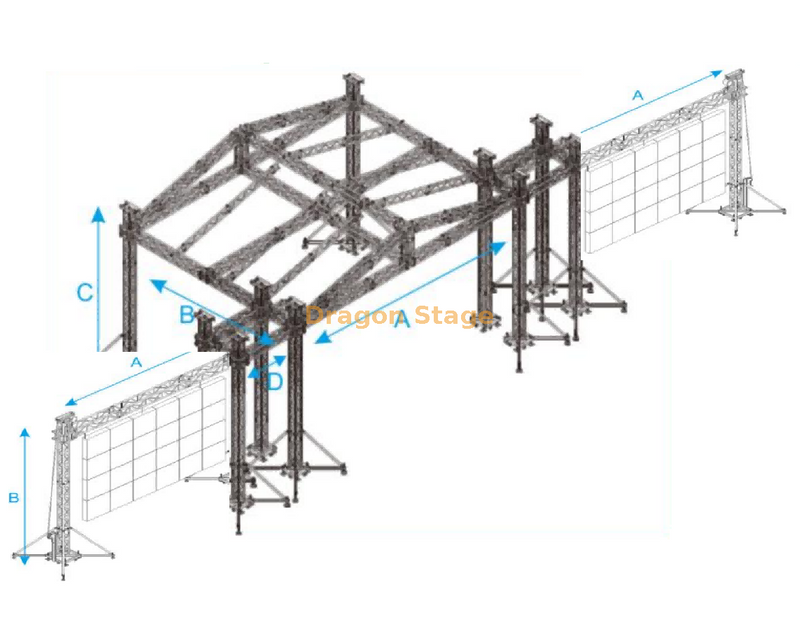

20x12x6m Concert Roof Stage with PA Wings Tower and LED Video Wall Truss is a custom setup

with 4-legged truss wings 2m wide for hanging line array speakers and 2 LED gentry trusses 5m wide.

Price: ￥ 219712 - 228232


High:	6m 8m
Availability:



Inquire

Brand:
Dragonstage

Product Description

Concert Roof Stage with PA Wings Tower And Led Video Wall Truss

packing weight: 5600kg

packing volume: 55cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
20.00 m Beam(front)	3 sets	3.00 m	50×4.0	CS520×760	18pcs
		2.00 m	50×4.0	CS520×760	0pcs
		1.00 m	50×4.0	CS520×760	6pcs
12.00 m Beam(side)	2 sets	3.00 m	50×4.0	CS520×760	8pcs
		2.00 m	50×4.0	CS520×760	0pcs
		1.00 m	50×4.0	CS520×760	0pcs
5.00 m Pillar	4 sets	3.00 m	50×3.0	CS389×389	4pcs
		2.00 m	50×3.0	CS389×389	4pcs
		1.00 m	50×3.0	CS389×389	0pcs
beam cube	6 faces	CS520×760			2pcs
Frame Tower	Spigot Sleeve Block L				4pcs
	Steel Base L				4pcs
	Top Section L				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	2.00 m	50×3.0	CS389×389	3pcs
12.00 m Top Beam	1 sets	3.00 m	50×3.0	CS389×389	4pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
10.20 m Oblique Beam	4 sets	3.00 m	50×3.0	CS389×389	8pcs
		2.00 m	50×3.0	CS389×389	4pcs
		2.20 m	50×3.0	CS389×389	4pcs
10.20 m Ladder truss	10 sets	3.00 m	50×3.0	CL40,389*50	20pcs
		2.00 m	50×3.0	CL40,389*50	10pcs
		2.20 m	50×3.0	CL40,389*50	10pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS389×389	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS389×389	1pcs
	1	Connect plate with clamp		CS389×389	3pcs
		Single clamp			20pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		388.96	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
3.00 m Wings Beam	8 sets	3.00 m	50×4.0	CS520×760	8pcs
		2.00 m	50×4.0	CS520×760	0pcs
		1.00 m	50×4.0	CS520×760	0pcs
5.00 m Wings Pillar	8 sets	3.00 m	50×3.0	CS389×389	8pcs
		2.00 m	50×3.0	CS389×389	8pcs
		1.00 m	50×3.0	CS389×389	0pcs
Wings Tower	Spigot Sleeve Block L				8pcs
	Steel Base L				8pcs
	Top Section L				8pcs
	Manual hoist,BA05 2Tons				8pcs
	Spigot Hinge Section,Height 1m				8pcs
	Fibre sling,BA04,2 tons 3m				8pcs
	Long outrigger				32pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set

Title: Professional 20x12x6m Concert Roof Stage with PA Wings & LED Video Wall Truss

Introduction:

Upgrade your large-scale events with our complete 20x12x6m Concert Roof Stage System. This all-in-one solution is engineered for professional concerts, festivals, and major productions, seamlessly integrating a robust main stage, dedicated PA wings for superior sound, and a sturdy truss for a massive LED video wall background.

Key Features & Specifications:

Complete Customizable Setup: This system is designed as a custom concert roof stage. The core structure measures 20m (W) x 12m (D) x 6m (H), with an option for an 8m height, ensuring a dominant presence for any event. The total packing weight is approximately 5600kg, with a volume of 55 CBM.
Integrated PA Wings Tower: Achieve perfect sound distribution. The system includes two 2m-wide truss wings specifically engineered as a PA tower for line array speakers. This ensures your audio equipment is elevated and angled correctly for optimal audience coverage.
Dedicated LED Video Wall Truss: Create stunning visual backdrops. Our strong LED video wall truss setup is designed to safely support large and heavy LED panels, making it ideal for a dynamic stage led video wall for concert stage background.
Robust Construction & Roof: The entire structure, including the roof, is built from high-grade aluminum truss, making it a durable and reliable aluminum truss stage system. The roof canopy is typically made from PVC (available in blue or customized colors), offering protection from the elements.
A True Concert Stage with Lights: As a comprehensive concert stage with lights, the framework is pre-configured with numerous points to hang professional lighting fixtures, allowing for spectacular concert stage decoration and effects.

Ideal For:

Large Outdoor Music Festivals and Concerts
Major Corporate Events and Product Launches
Large-scale Religious Gatherings and Ceremonies

Why Choose Our Stage System?

We are DRAGON STAGE, a leading Chinese manufacturer dedicated to providing high-quality, durable, and safe stage and truss solutions. We offer competitive pricing and can tailor systems to your specific project requirements.

Ready for a Quote?

This Square Portable concert stage for sale is your turnkey solution for a world-class event. Contact us today to discuss your needs, request a detailed quotation, and get answers to all your technical questions.
