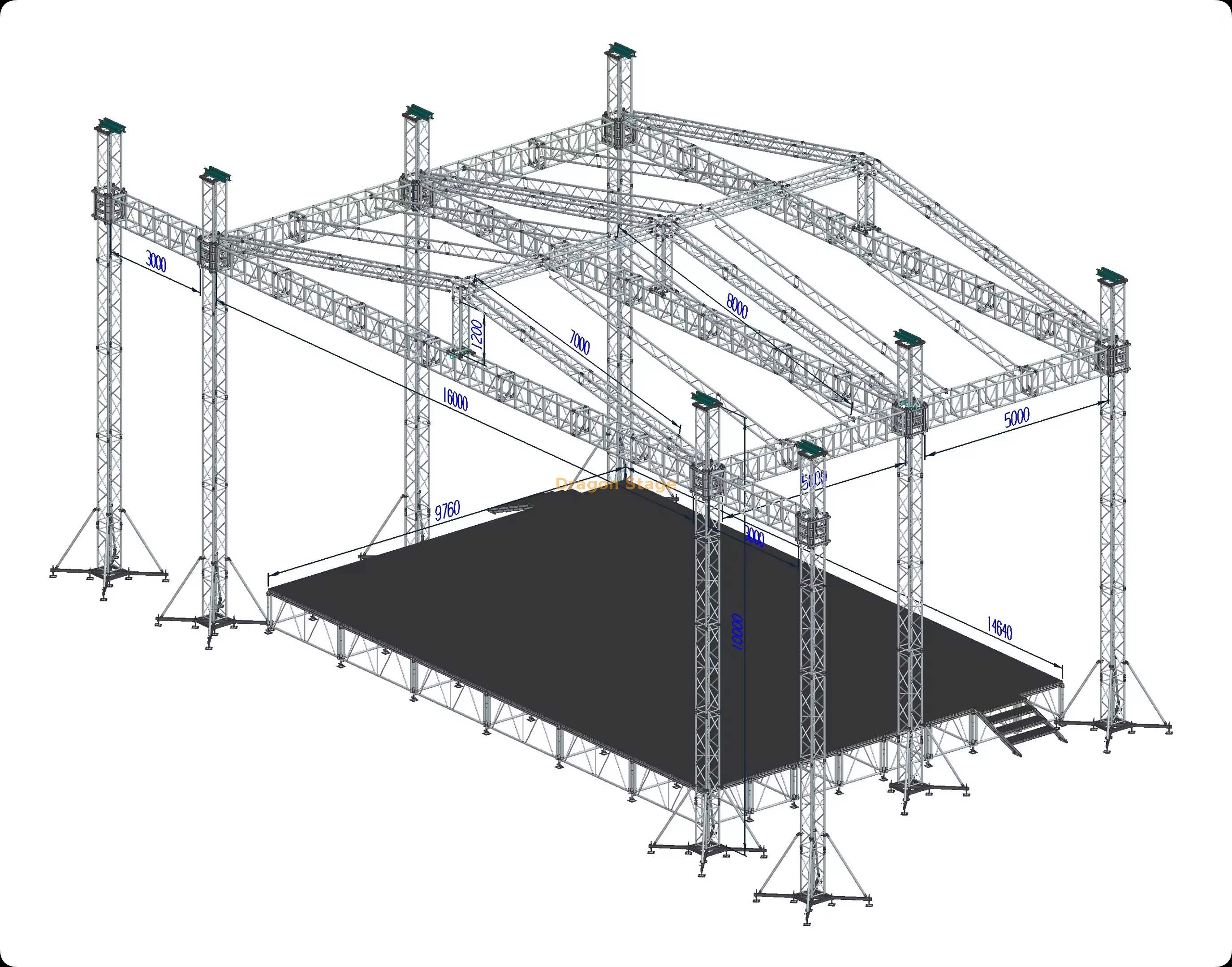

16x10x10m Professional Large-Scale Outdoor Stage Truss System

5 0 Reviews

Professional 16m x 10m Aluminum Stage Truss System - 10m High 6-Pillar Heavy Duty Ground Support Rig with Dual 3m PA Speaker Wings for Large Indoor Events

Price: ￥ 159340


Availability:



Inquire

Brand:
Dragonstage

Product Description

Premier 16m x 10m aluminum indoor stage truss system standing 10m high. Features a reinforced 6-pillar ground support design and dual 3m wide speaker wings. Engineered for arena-sized concerts, large-scale exhibitions, and corporate events requiring massive loading capacity for lighting and audio.

16x10x10m Professional Large-Scale Outdoor Stage Truss System

packing weight:4135kg

packing volume:55cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
16.00 m Beam(front)	3 sets	3.00 m	50×4.0	CS520×760	15pcs
		2.00 m	50×4.0	CS520×760	0pcs
		1.00 m	50×4.0	CS520×760	3pcs
10.00 m Beam(side)	2 sets	3.00 m	50×4.0	CS520×760	4pcs
		2.00 m	50×4.0	CS520×760	4pcs
		1.00 m	50×4.0	CS520×760	0pcs
9.00 m Pillar	6 sets	3.00 m	50×3.0	CS389×389	18pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
beam cube	6 faces	CS520×760			0pcs
Frame Tower	Spigot Sleeve Block L				6pcs
	Steel Base L				6pcs
	Top Section L				6pcs
	Manual hoist,BA05 2Tons				6pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	1.60 m	50×3.0	CS289×289	3pcs
10.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	2pcs
		2.00 m	50×3.0	CS289×289	2pcs
		1.00 m	50×3.0	CS289×289	0pcs
8.20 m Oblique Beam	6 sets	3.00 m	50×3.0	CS289×289	12pcs
		2.00 m	50×3.0	CS289×289	6pcs
		.20 m	50×3.0	CS289×289	6pcs
8.20 m Ladder truss	6 sets	3.00 m	50×3.0	CL30,289*50	12pcs
		2.00 m	50×3.0	CL30,289*50	6pcs
		.20 m	50×3.0	CL30,289*50	6pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	1pcs
	1	Connect plate with clamp		CS289×289	3pcs
		Single clamp			12pcs
		Double clamp			12pcs
		roof canopy material:pvc, Blue Colour or customized.		274.56	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
3.00 m Wings Beam	2 sets	3.00 m	50×4.0	CS520×760	2pcs
		2.00 m	50×4.0	CS520×760	0pcs
		1.00 m	50×4.0	CS520×760	0pcs
9.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS389×389	6pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
Wings Tower	Spigot Sleeve Block L				2pcs
	Steel Base L				2pcs
	Top Section L				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
